Meter Units

Meter Units are used with all cyclic system electric and manual pumps to provide precise control of the lubricant to each lubrication point. A spring-loaded check valve keeps air from entering the system when lubricant is not being supplied to the meter unit.

Contact Us to Purchase

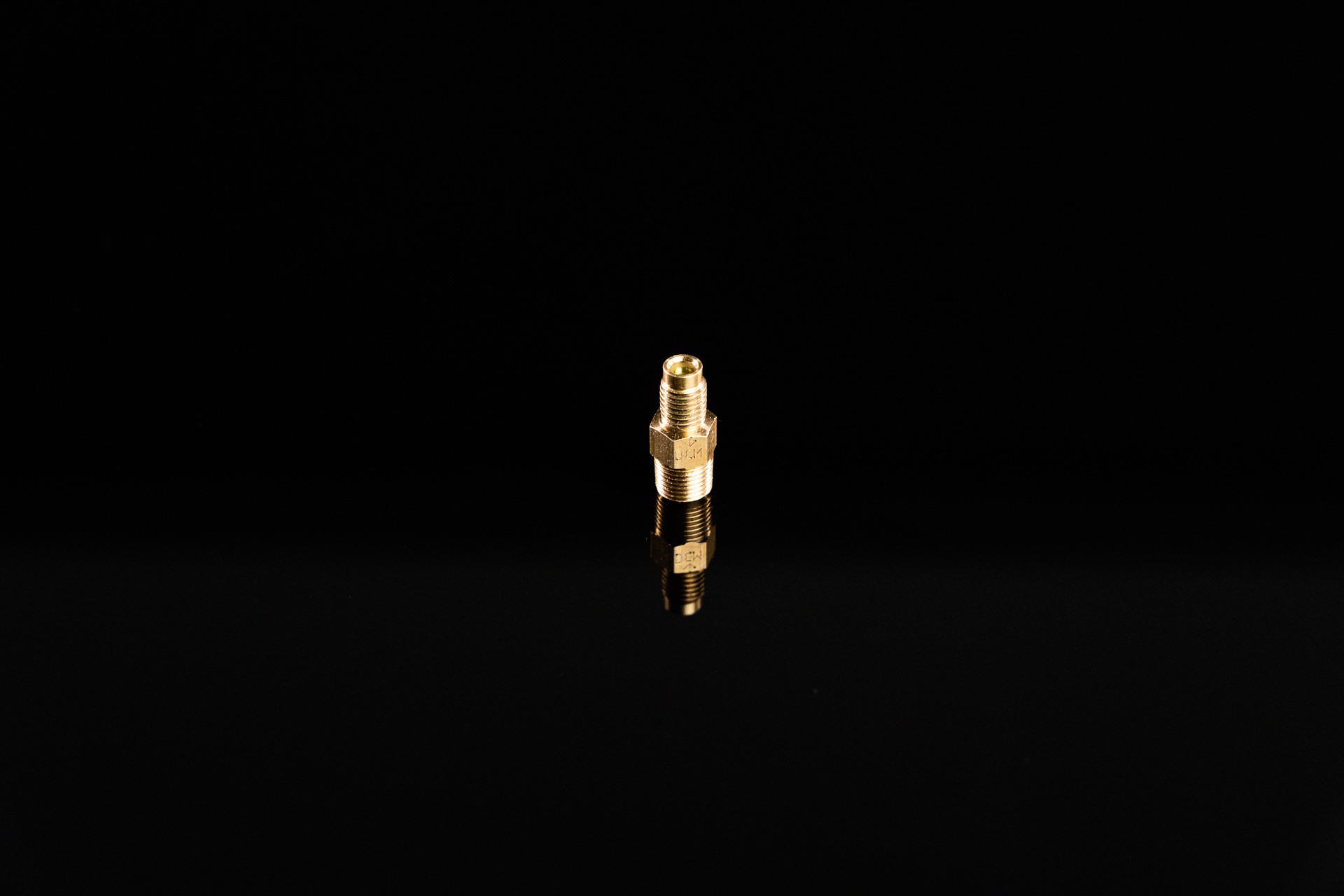

Meter unit

Special Feature

Flow Rates

There are 10 different flow rates for meter units (5/0–5). These units are precisely manufactured to accurately apportion oil at each point. The Flow Rate displays recommended flow rates for different types of systems. The relative flow delivery indicates the difference in the flow rates of the meter rates. The smallest flow rate is “5/0” and the highest flow rate is “5”. Each meter unit will allow approximately twice as much flow as the next smaller size, within a lubrication system.

Other Specs

Model Description Flow Rate Size
DCM-0 Meter Units 0 5/16-24x1/8 NPT
DCM-00 Meter Units 00 5/16-24x1/8 NPT
DCM-00M Meter Units 00 M8x1.0x1/8BSPT
DCM-0M Meter Units 0 M8x1.0x1/8BSPT
DCM-1 Meter Units 1 5/16-24x1/8 NPT
DCM-1M Meter Units 1 M8x1.0x1/8BSPT
DCM-2 Meter Units 2 5/16-24x1/8 NPT
DCM-2M Meter Units 2 M8x1.0x1/8BSPT
DCM-3 Meter Units 3 5/16-24x1/8 NPT
DCM-3/0 Meter Units 3/0 5/16-24x1/8 NPT
DCM-3M Meter Units 3 M8x1.0x1/8BSPT
DCM-4 Meter Units 4 5/16-24x1/8 NPT
DCM-4M Meter Units 4 M8x1.0x1/8BSPT
DCM-5 Meter Units 5 5/16-24x1/8 NPT
DCM-5M Meter Units 5 M8x1.0x1/8BSPT
DSM-0 Meter Units 0 5/16-24x5/16-24
DSM-00 Meter Units 00 5/16-24x5/16-24
DSM-00M Meter Units 00 M8x1.0 x M8x1.0
DSM-0M Meter Units 0 M8x1.0 x M8x1.0
DSM-1 Meter Units 1 5/16-24x5/16-24
DSM-1M Meter Units 1 M8x1.0 x M8x1.0
DSM-2 Meter Units 2 5/16-24x5/16-24
DSM-2M Meter Units 2 M8x1.0 x M8x1.0
DSM-3 Meter Units 3 5/16-24x5/16-24
DSM-3/0 Meter Units 3/0 5/16-24x5/16-24
DSM-3M Meter Units 3 M8x1.0 x M8x1.0
DSM-4 Meter Units 4 5/16-24x5/16-24
DSM-4M Meter Units 4 M8x1.0 x M8x1.0
DSM-5 Meter Units 5 5/16-24x5/16-24
DSM-5M Meter Units 5 M8x1.0 x M8x1.0
DTM-0 Meter Units 0 1/8NPT x 1/8NPT
DTM-00 Meter Units 00 1/8NPT x 1/8NPT
DTM-00M Meter Units 00 1/8BSPTx1/8BSPT
DTM-0M Meter Units 0 1/8BSPTx1/8BSPT
DTM-1 Meter Units 1 1/8NPT x 1/8NPT
DTM-1M Meter Units 1 1/8BSPTx1/8BSPT
DTM-2 Meter Units 2 1/8NPT x 1/8NPT
DTM-2M Meter Units 2 1/8BSPTx1/8BSPT
DTM-3 Meter Units 3 1/8NPT x 1/8NPT
DTM-3/0 Meter Units 3/0 1/8NPT x 1/8NPT
DTM-3M Meter Units 3 1/8BSPTx1/8BSPT
DTM-4 Meter Units 4 1/8NPT x 1/8NPT
DTM-4M Meter Units 4 1/8BSPTx1/8BSPT
DTM-5 Meter Units 5 1/8NPT x 1/8NPT
DTM-5M Meter Units 5 1/8BSPTx1/8BSPT

Related Products

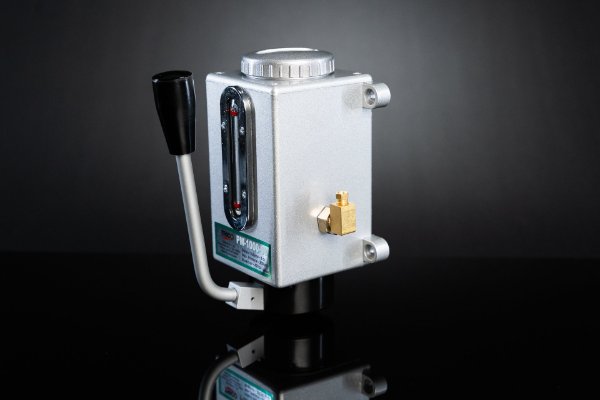

PM 10 series pump on an angle
PM-10 Series Manual Cyclic Pump

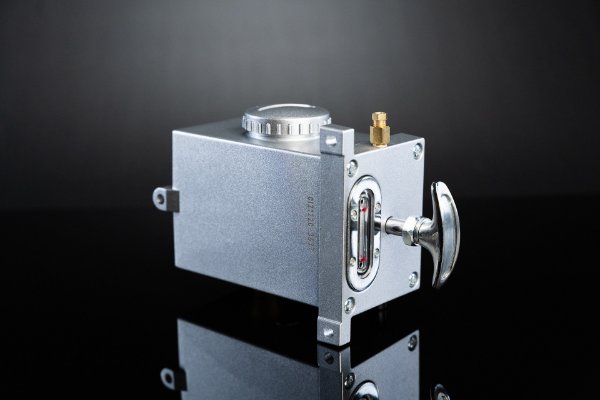

PM series pump
PM-20 Series Manual Pumps

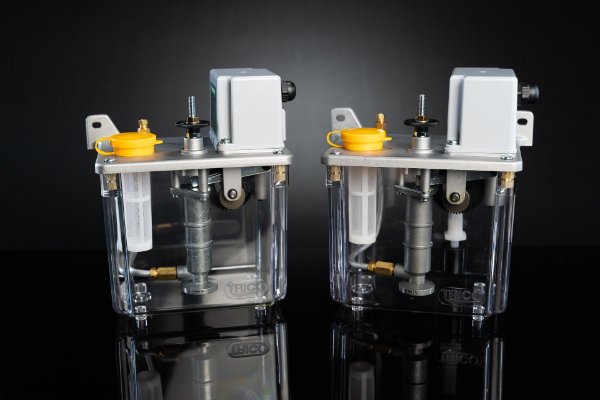

PE 10-12 series pumps side-by-side
PE-10 & PE-12 Series

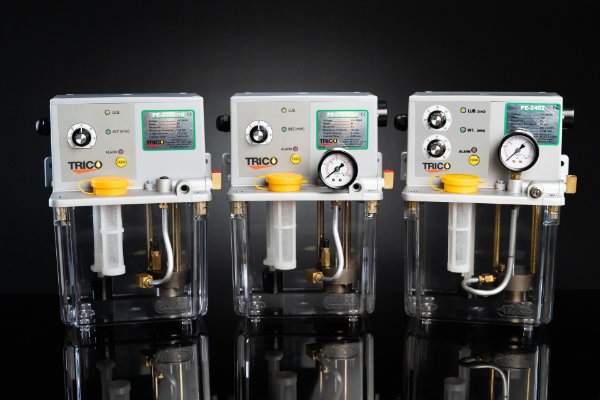

PE 20, PE 22, and PE 24 series pumps side by side
PE-20, PE-22, and PE-24 Series

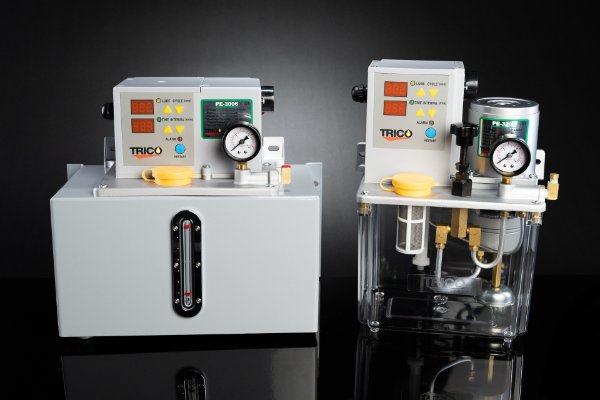

PE 30 and 32 series pumps
