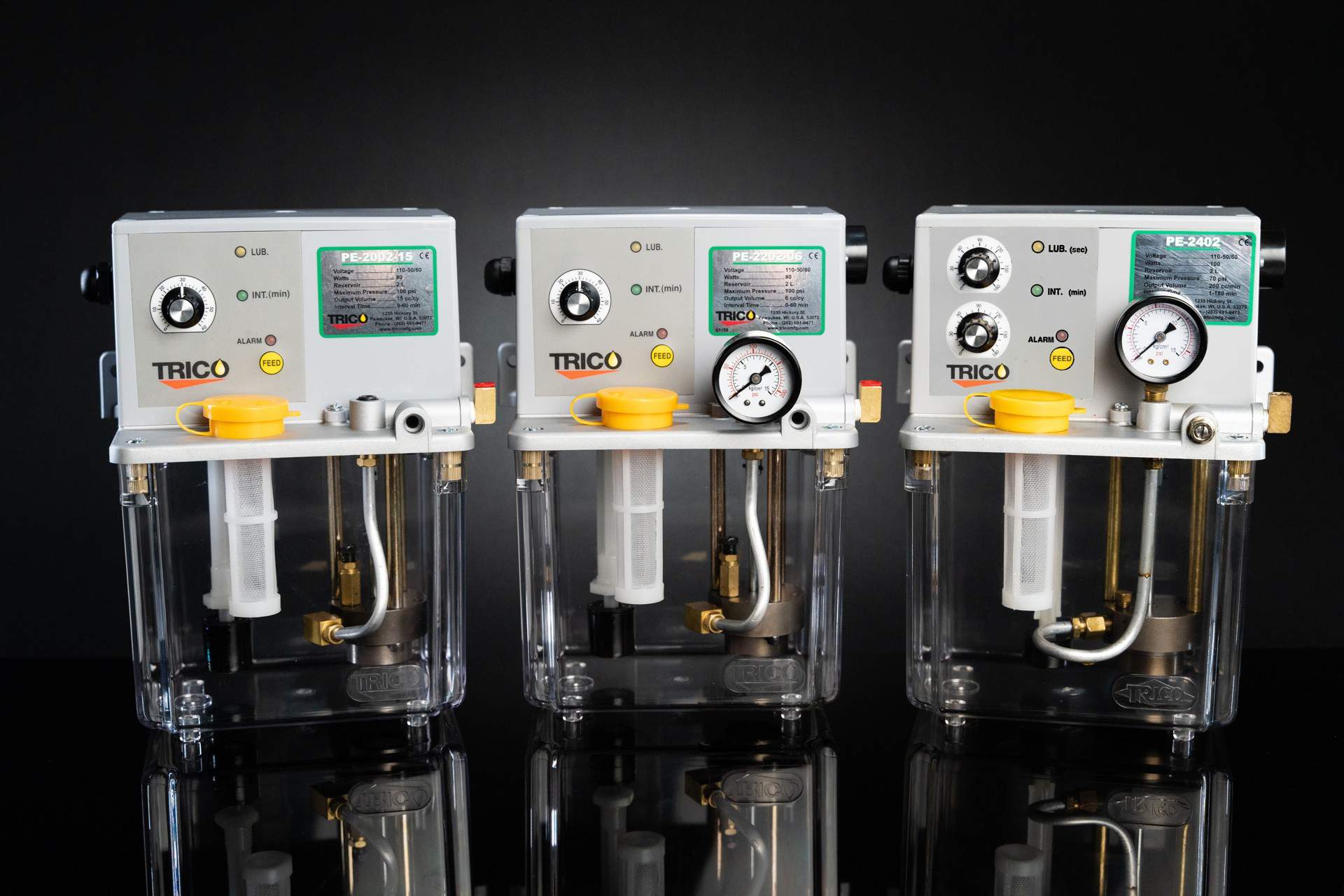

PE-20, PE-22, and PE-24 Series
The PE-20, PE-22, and PE-24 Series Automatic Cyclic pumps are designed for automatic cyclic systems with fewer than 50 points that need lubrication on an intermittent basis. These pumps are ideal for punch presses and machine tools where small and consistent amounts of lubricant are required.
Special Feature
Pump Configurations
PE-20 Series Pump
Adjustable Interval Time
Adjustable interval time between lubrication cycles of up to 60 minutes.
Output Cycle
Choice of 6 cc or 15 cc output per cycle.
Low Level Indication
Low level switch with alarm.
PE-22 Series Pump
Adjustable Interval Time
Adjustable interval time between lubrication cycles of up to 60 minutes.
Output Cycle
Choice of 6 cc or 15 cc output per cycle.
Low Level Indication
Low level switch with alarm.
Pressure Gauge
Pressure gauge provides real time monitoring of the system lubricant delivery.
PE-24 Series Pump
Adjustable Interval Time
Adjustable interval time between lubrication cycles of up to 180 minutes.
Output Cycle
Adjustable output cycle time of 1-180 seconds, flow rate of 200 cc/min.
Low Level Indication
Low level switch with alarm.
Pressure Gauge
Pressure gauge that provides real time monitoring of the system lubricant delivery.
Additional Features
- Oil Level Indication
Transparent 2-liter reservoir simplifies viewing oil level
- Easy Filling
Large fill plug simplifies adding or changing lubricant
- Oil Filter
Convenient drop-in filter in fill port keeps oil clean
- Accessories

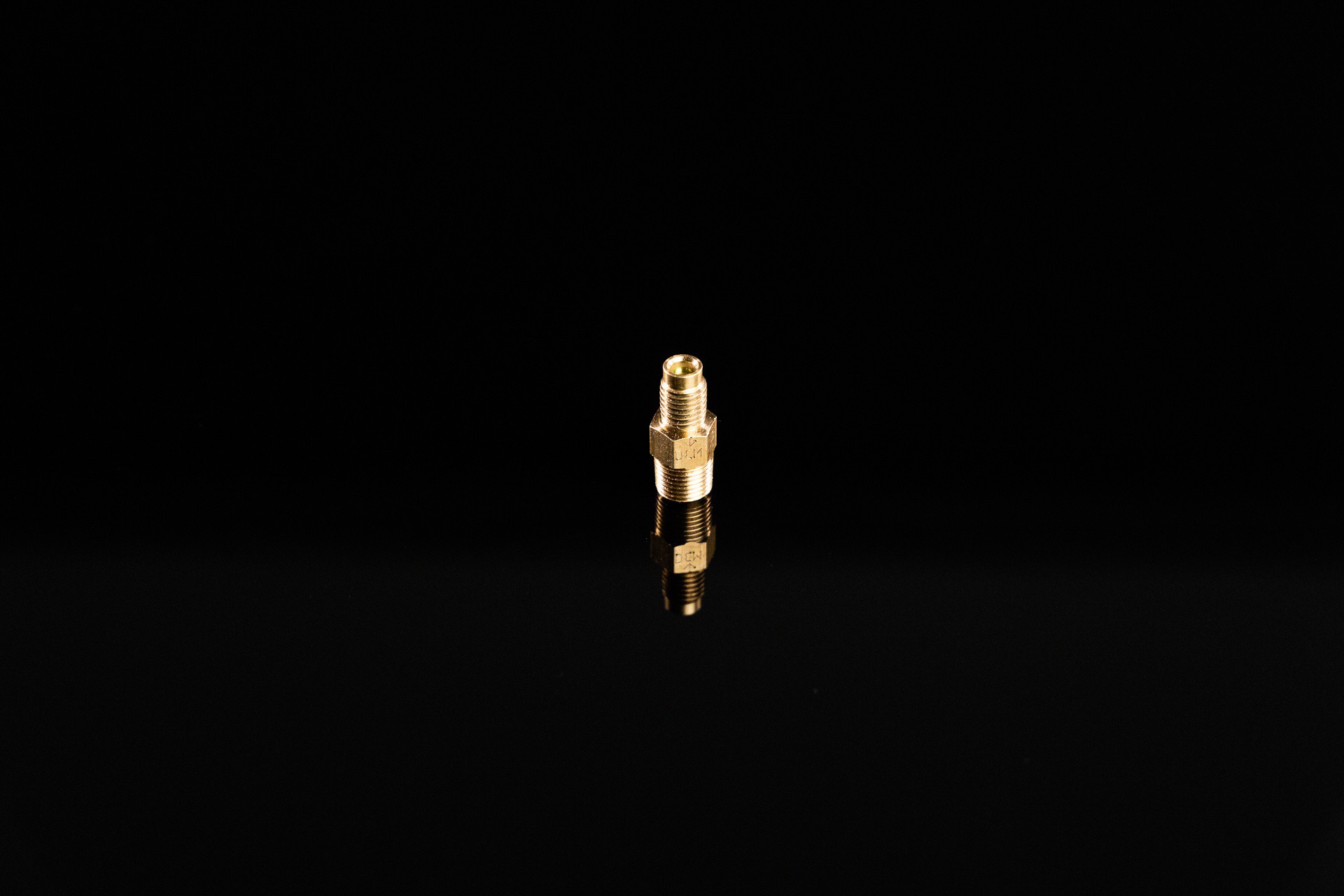

This pump is commonly used with meter units in single or multiple point applications. Meter units, fittings, and accessories are available.
Other Specs
| Model | Description | Output (cc/cycle) | Low Level Alarm and Gauge | Interval Time | Min Output (cc/hour) | Low Level Switch |
|---|---|---|---|---|---|---|
| PE-2002-06 | Automatic Pump | 6 | No | 0 min. - 60 min. | 6 | Yes |
| PE-2002-15 | Automatic Pump | 15 | No | 0 min. - 60 min. | 15 | Yes |
| PE-2202-06 | Automatic Pump | 6 | Yes | 0 min. - 60 min. | 6 | Yes |
| PE-2202-15 | Automatic Pump | 15 | Yes | 1 min. - 180 min. | 15 | Yes |
| PE-2402 | Automatic Pump | 3.33 cc/sec | Yes | 1 min. - 180 min. | 1.1 | Yes |
Description
Output (cc/cycle)
Low Level Alarm and Gauge
Interval Time
Min Output (cc/hour)
Low Level Switch
Description
Output (cc/cycle)
Low Level Alarm and Gauge
Interval Time
Min Output (cc/hour)
Low Level Switch
Description
Output (cc/cycle)
Low Level Alarm and Gauge
Interval Time
Min Output (cc/hour)
Low Level Switch
Description
Output (cc/cycle)
Low Level Alarm and Gauge
Interval Time
Min Output (cc/hour)
Low Level Switch
Description
Output (cc/cycle)
Low Level Alarm and Gauge
Interval Time
Min Output (cc/hour)
Low Level Switch
-
Reservoir Capacity2 Liters
-
Motor Voltage110-1-50/60 Standard
220-1-50/60 Optional -
Pump TypeGear Pump
-
Maximum PressurePE-20, 22 Series: 100 PSI
PE-24 Series: 70 PSI -
Output Connection5/16-24 (f)
-
SealsBuna-N
-
Operating Temperature32-120ºF
