PM-20 Series Manual Pumps

The PM-20 Series Manual Pumps are used in applications where a fixed output of lubricant is desired. With the PM-20 series, lubricant output takes place upon release of a handle that uses a spring discharge to ensure the correct amount of lubricant is applied. Common applications include punch presses and milling machines where infrequent but reliable lubrication is required.

Contact Us to Purchase

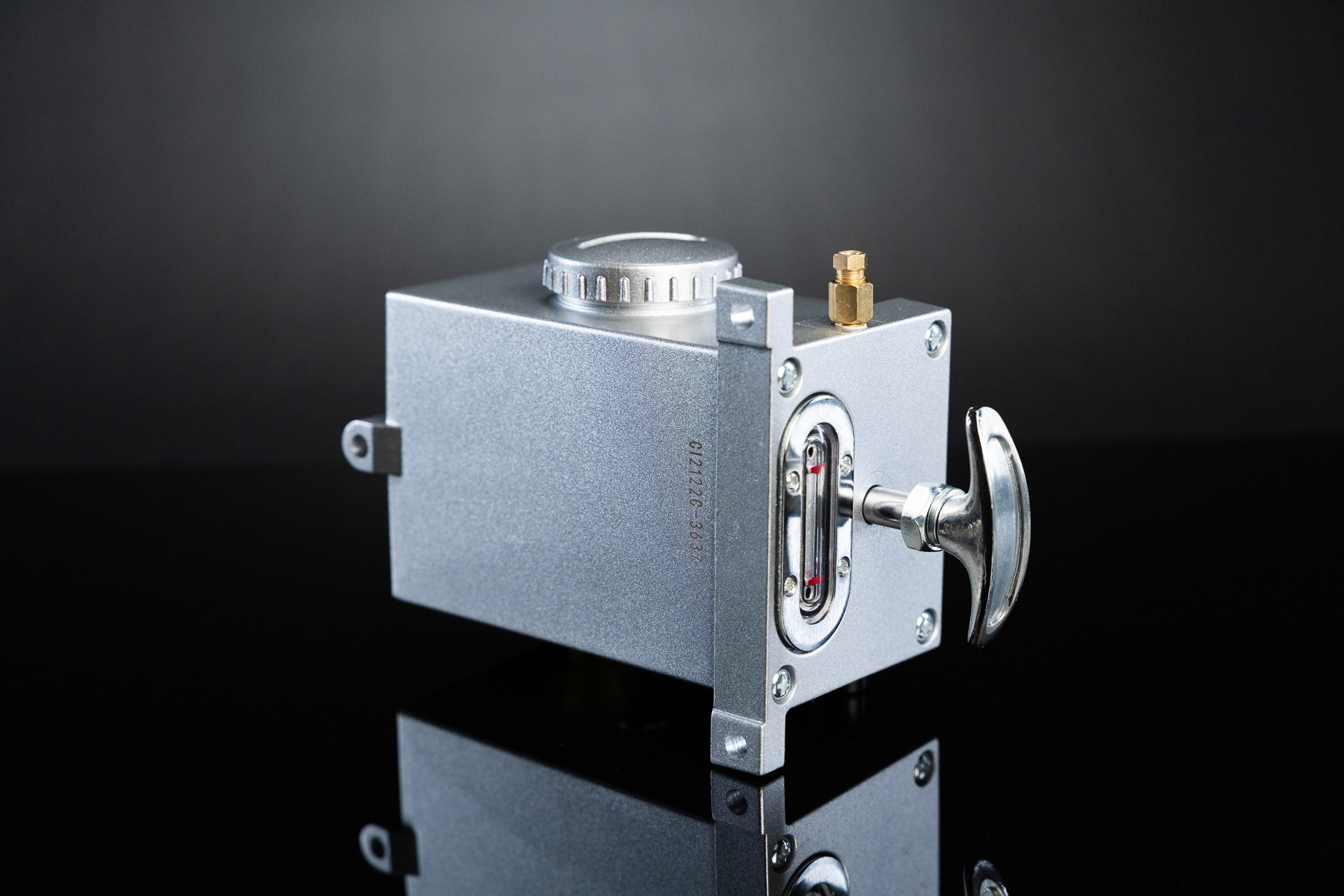

PM series pump

Additional Features

Durable Construction

Aluminum die cast reservoir provides long life.

Oil Level Indication

A sight gauge provides liquid level observation.

Easy Filling

Large fill port for easy adding of lubricant

Oil Filter

Convenient drop-in filter in fill port keeps oil clean

Accessories

This pump is commonly used with meter units in single or multiple point applications. Meter units, fittings, and accessories are available.

Other Specs

Model Description Mounting Type Pump Type Output (cc/stroke) Pressure Reservoir Capacity
PM-2000-L PM-20 Series Left Horizontal Mount 8 70 PSI (average) 550 cc
PM-2000-R PM-20 Series Right Horizontal Mount 8 70 PSI (average) 550 cc
