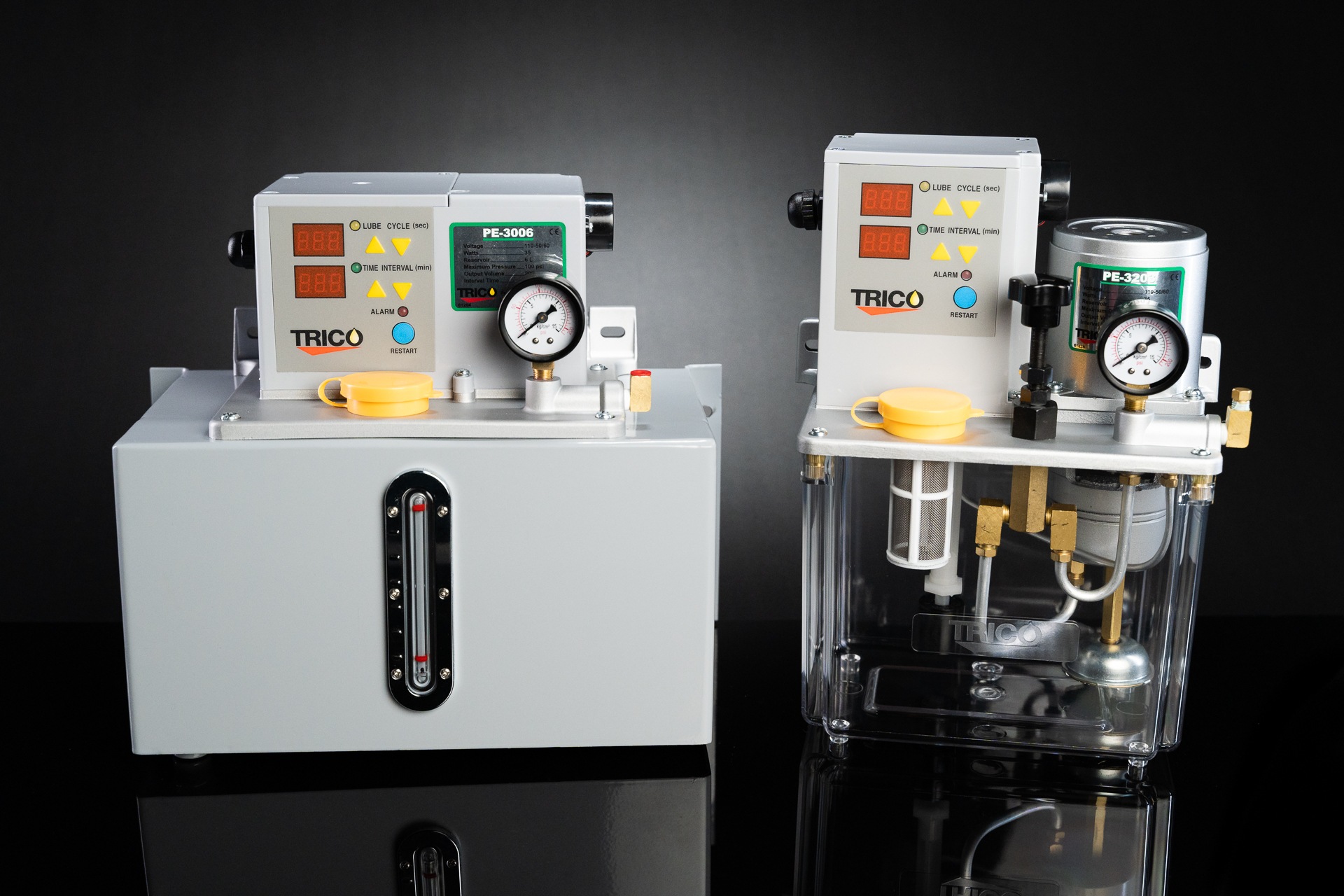

PE-30 and PE-32 Series
The PE-30 and PE-32 Series are the most versatile automatic cyclic pumps available. Both the lubricant dispensing time and the time interval between cycles is digitally controlled. With reservoir sizes up to 20 liters, these pumps can handle systems with up to 100 lubrication points. Applications include large printing presses and injection molding machines.
Special Feature
Pump Configurations

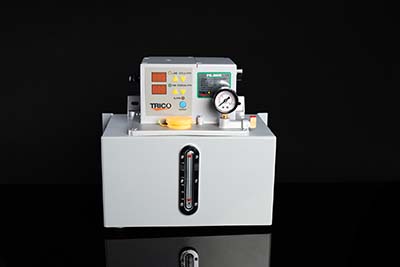

PE-30 Series Pump
Adjustable Interval Time
Adjustable interval time between lubrication cycles of 3–999 minutes.
Adjustable Output Cycle
Adjustable output cycle time of 1-180 seconds, flow rate of 200 cc/min.

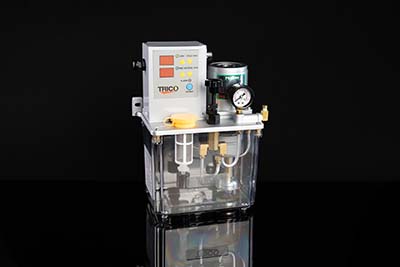

PE-32 Series Pump
Adjustable Interval Time
Adjustable interval time between lubrication cycles of 3–999 minutes.
Adjustable Output Cycle
Adjustable output cycle time of 1-999 seconds, flow rate of 250 cc/min.
Pressure Adjustment Valve
A constant pressure is maintained by way of a pressure adjustment valve.
System Protection
Pressure switch, with reset button, shuts down pump if system pressure drops below set level, protecting against line or component failure.
Additional Features
- Durable Reservoirs
Heavy-duty plastic reservoir (3 liter) simplifies oil level viewing. Metal reservoirs available in 6, 8, and 20 liters for larger systems.
- Easy Filling
Large fill plug simplifies adding or changing lubricant
- Oil Filter
Convenient drop-in filter in fill port keeps oil clean
- Accessories

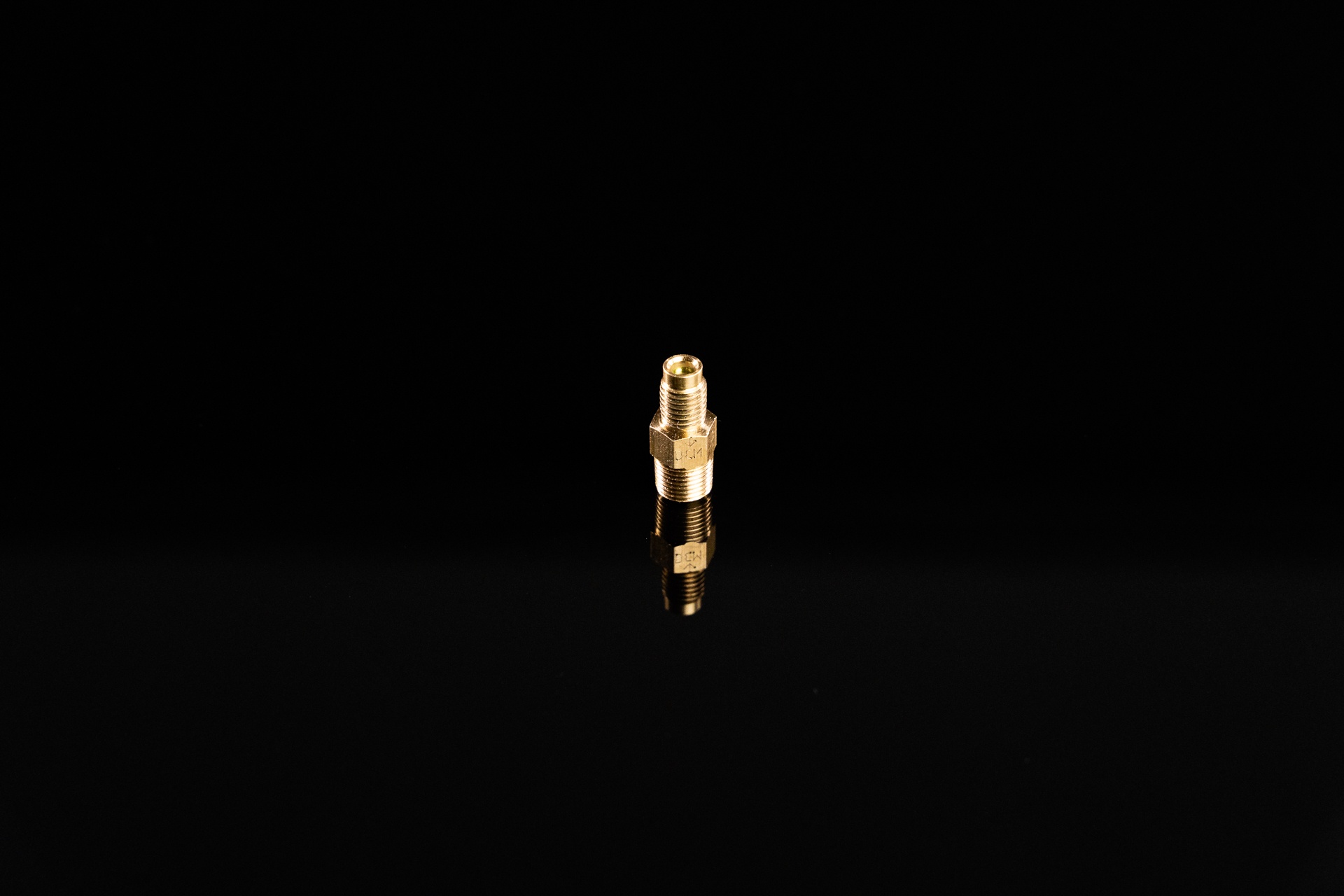

These pumps use meter units in single or multiple point applications. Meter units, fittings, and accessories are available to create a central lubrication system.
Other Specs
| Model | Description | Output | Reservoir Capacity (liters) | Reservoir Material | Min Output (cc/hour) | Interval Time |
|---|---|---|---|---|---|---|
| PE-3003 | Automatic Pump | 3.33 cc/sec | 3 | Plastic | .2 | 3-999 min |
| PE-3006 | Automatic Pump | 3.33 cc/sec | 6 | Metal | .2 | 3-999 min |
| PE-3008 | Automatic Pump | 3.33 cc/sec | 8 | Metal | .2 | 3-999 min |
| PE-3020 | Automatic Pump | 3.33 cc/sec | 20 | Metal | .2 | 3-999 min |
| PE-3203 | Automatic Pump | 4.17 cc/sec. | 3 | Metal | .2 | 3-999 min |
| PE-3206 | Automatic Pump | 4.17 cc/sec. | 6 | Metal | .2 | 3-999 min |
| PE-3208 | Automatic Pump | 4.17 cc/sec. | 8 | Metal | .2 | 3-999 min |
| PE-3220 | Automatic Pump | 4.17 cc/sec. | 20 | Metal | .2 | 3-999 min |
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
Description
Output
Reservoir Capacity (liters)
Reservoir Material
Min Output (cc/hour)
Interval Time
-
Reservoir Capacity3 Liter Plastic
6, 8, and 20 Liter Steel -
Motor Voltage110-1-50/60 Standard
220-1-50/60 Optional -
Pump TypeGear Pump
-
Maximum Pressure100 PSI – PE 30
140 PSI – PE 32 -
Output Connection5/16-24 (f)
-
SealsBuna-N
-
Operating Temperature32-120ºF
