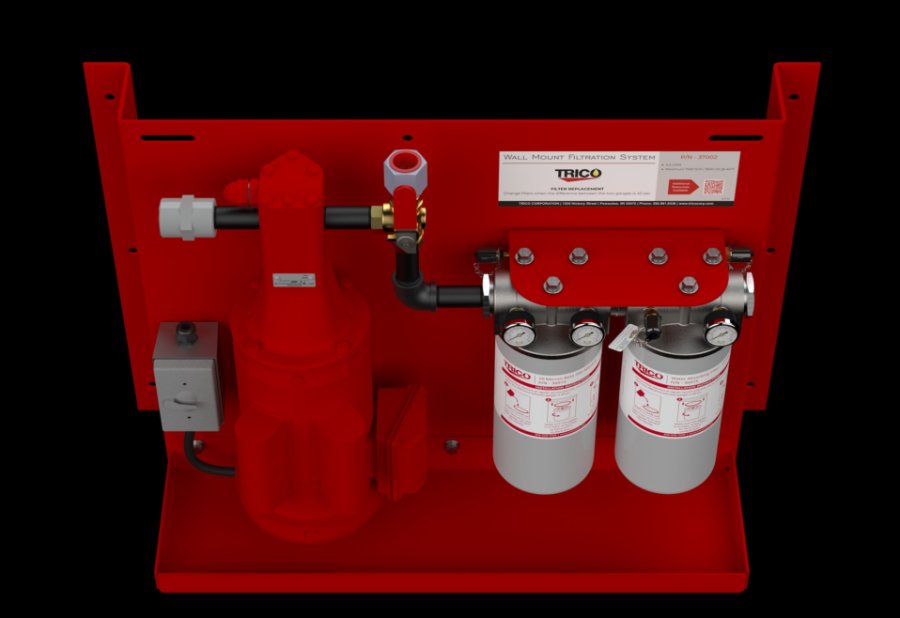

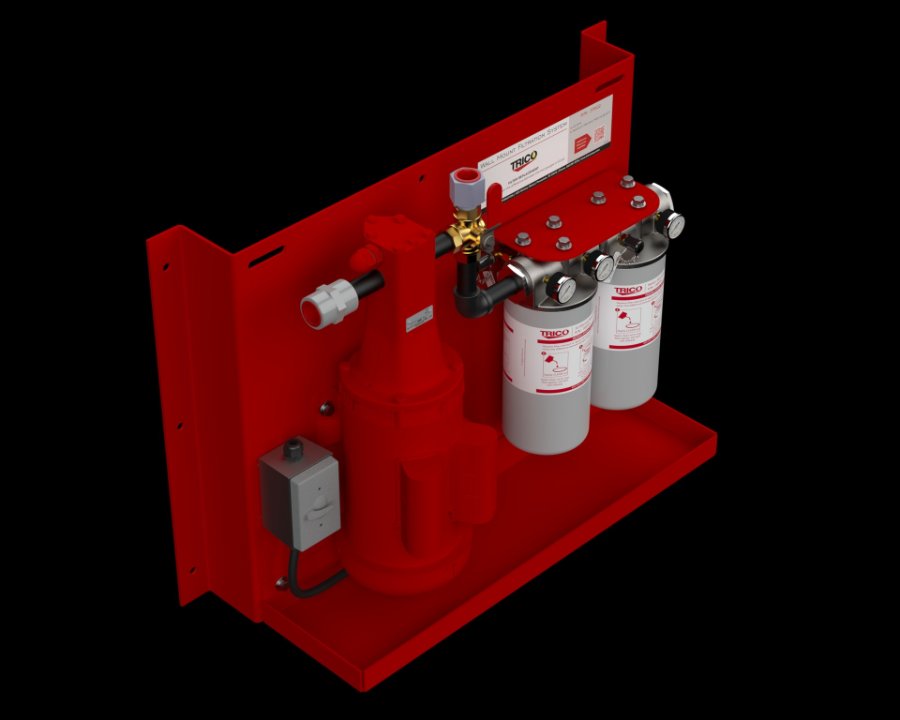

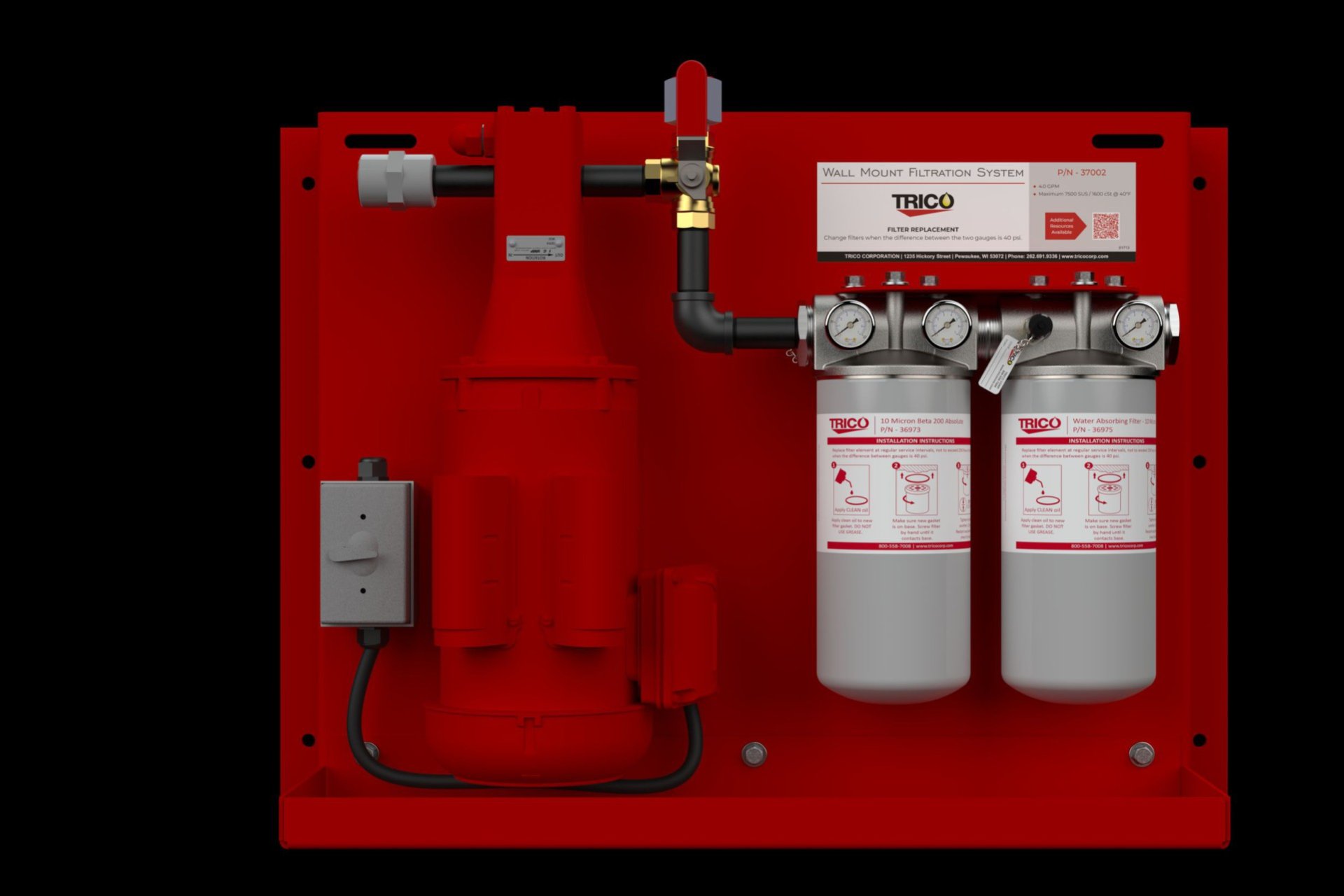

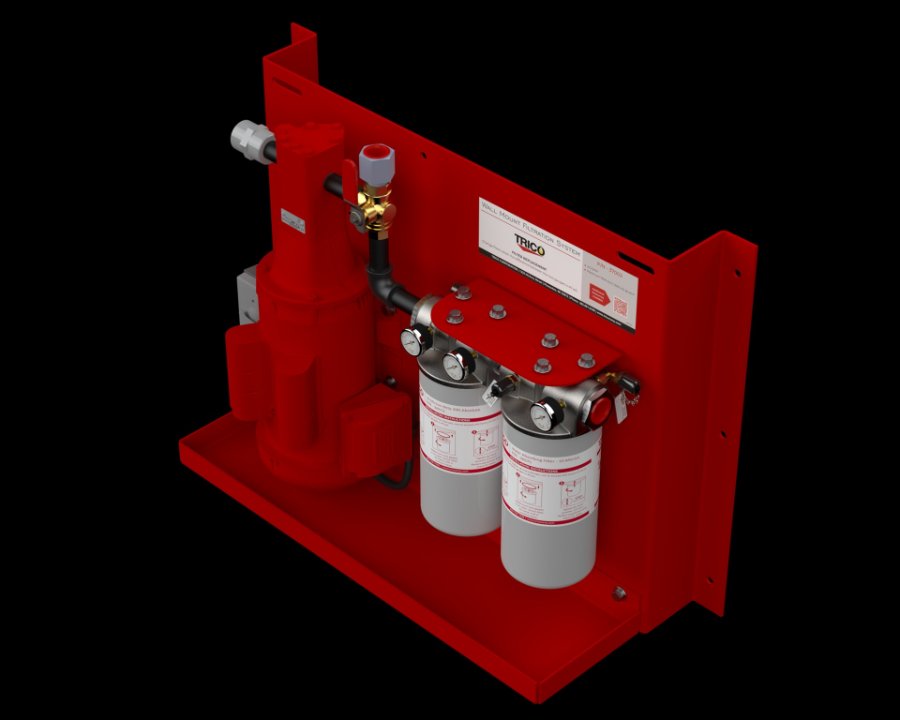

Wall Mount Filtration System

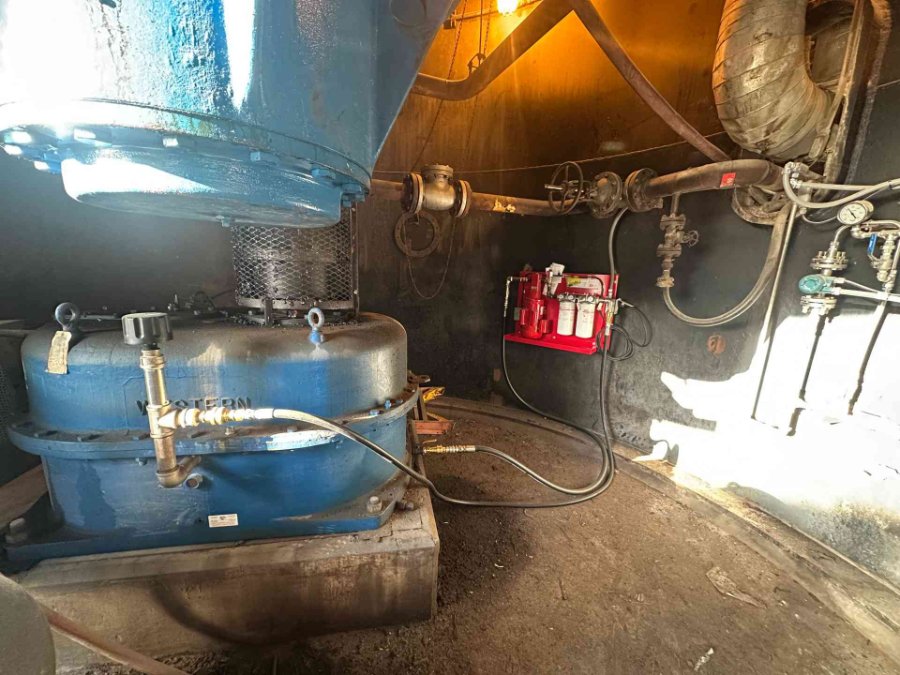

The Wall Mount Filtration System is designed for versatility, allowing installation in the most convenient locations for your operations—whether in a lube room or right beside your equipment—for ease of use and accessibility. Engineered to handle hydraulic and lubricating oils up to 7500 SUS (1600 cSt), this system meets most filtration needs with efficiency.
Contact Us to Purchase
Feature
Differential Pressure Gauges
Pressure gauges are used to indicate when filters are spent and need to be changed.
Feature

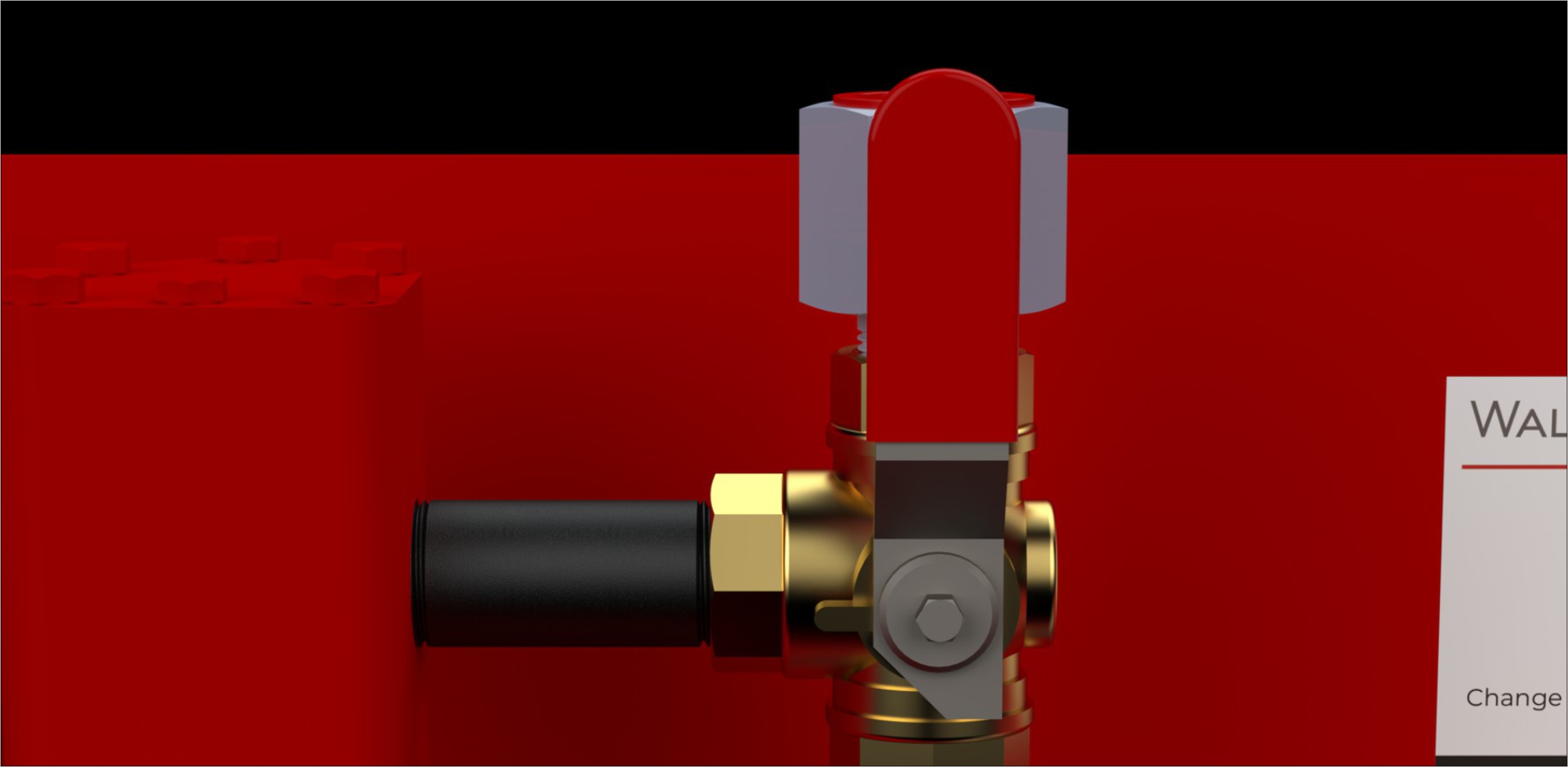

Inline Bypass Valve
The bypass valve allows for oil transfer without passing through the filters.
Feature

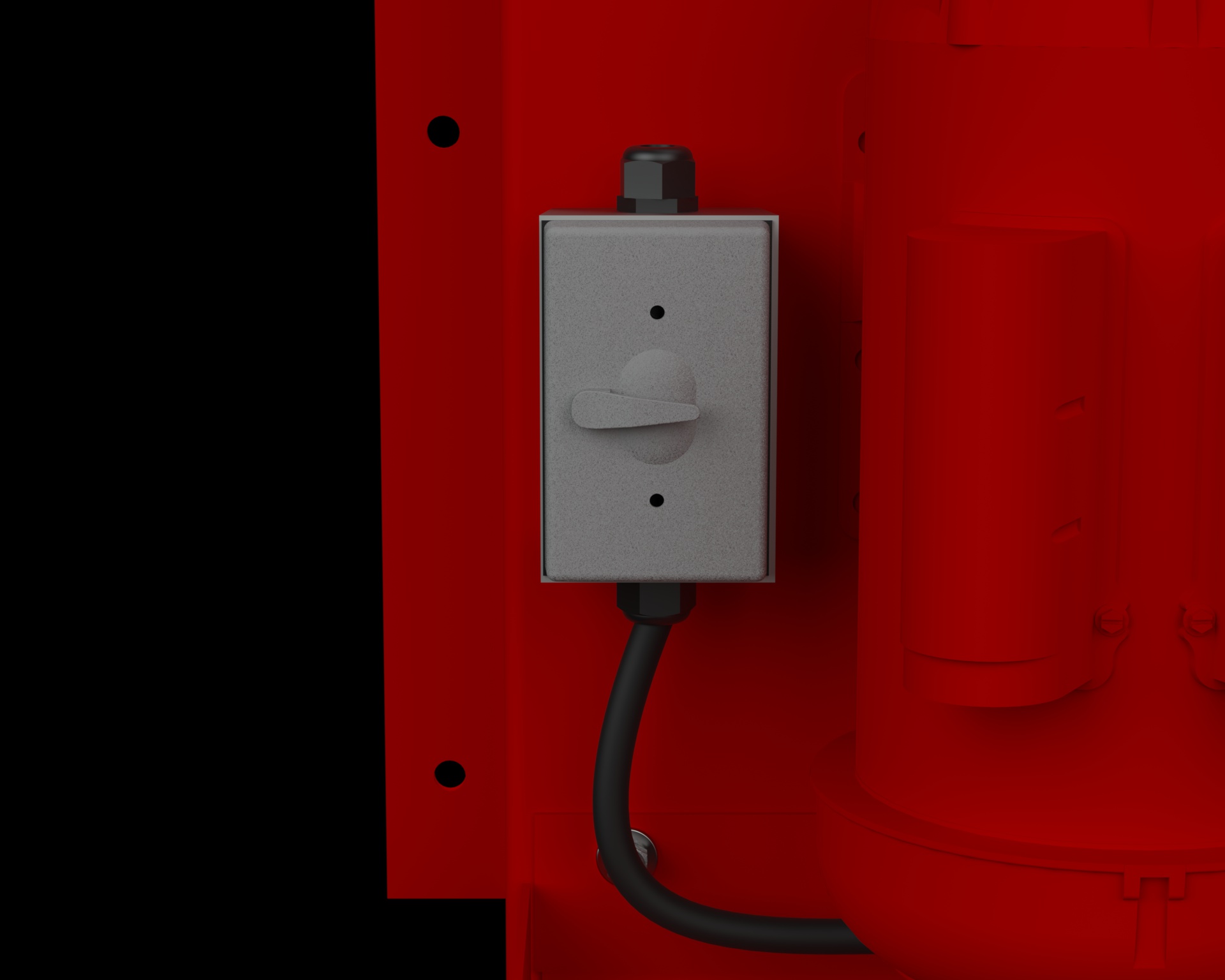

On/Off Switch
The power switch provides easy, convenient control with a simple flip, designed for quick accessibility.
Additional Features
- Oil Sampling Ports
- Features three sampling ports for monitoring fluid condition
- Drip Pan
- Built-in drip pan keeps work area safe and clean

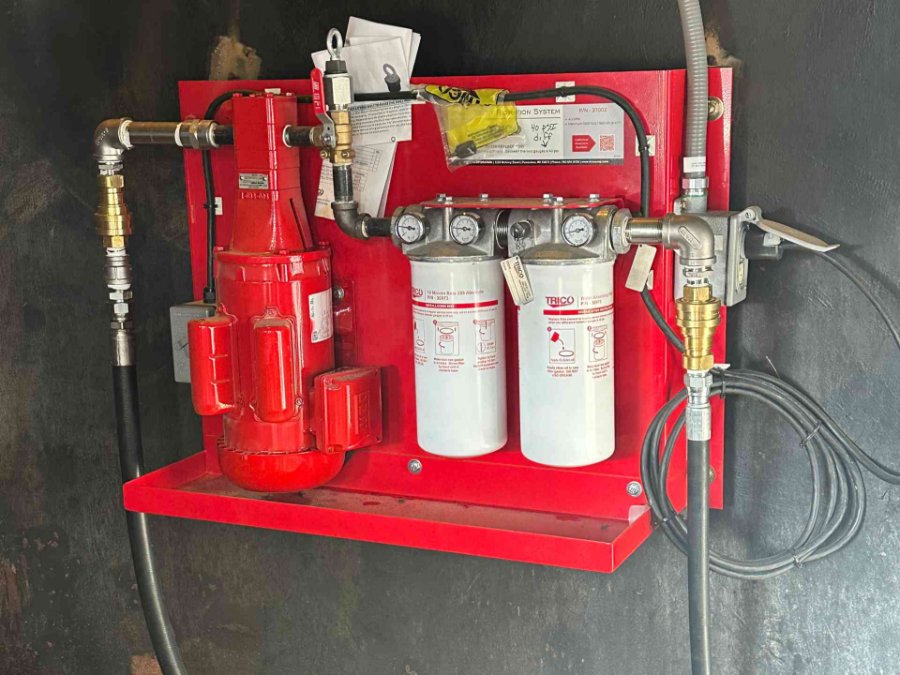

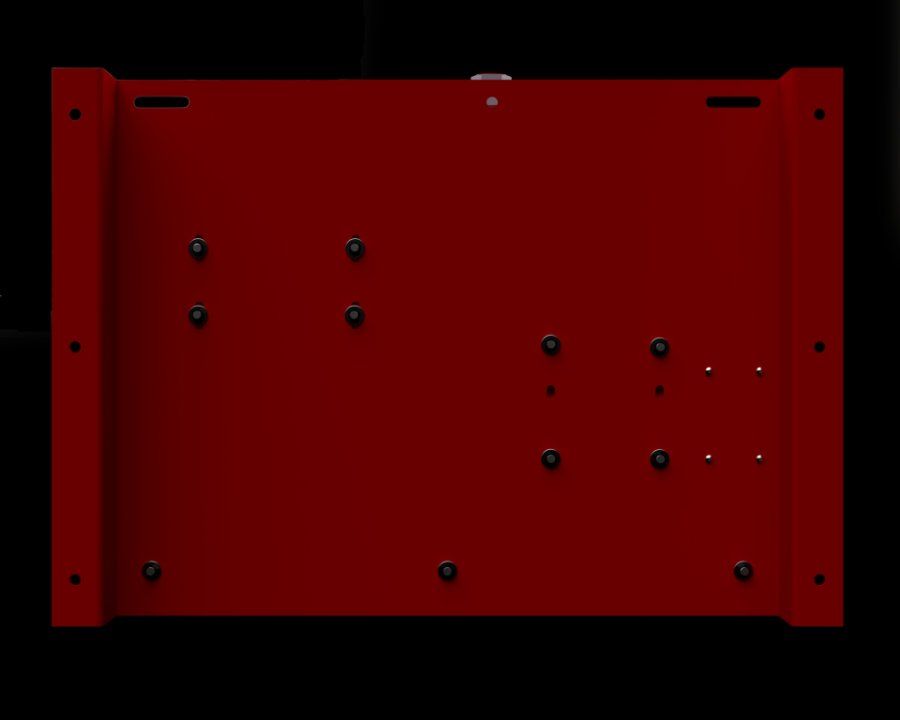

- Compact, Wall Mount Design
- Easily mounts on the wall saving valuable floor space
- Dual Filters
- Dual-filtration ensures cleaner oil with particulate and water removal
Other Specs
| Model | Description | Motor Type |
|---|---|---|
| 37002 | Wall Mount Filtration System | 120 V, 60 Hz |
-
Pump TypeIndustrial Grade Gear Pump
-
Electric Motor1-1/2 HP @ 1750 RPM
-
Electric Motor Rating115V, 60 Hz, 15.0 A
-
Pump Relief105 PSI
-
Suction/Lift20 ft
-
Maximum Operating Temperature200°F/93°C
-
Suction/Discharge Port1” Female NPT
-
Filter TypeSpin-on
-
Filter Head By-Pass Pressure43 PSI
-
Filter Media 110 Micron Absolute Beta >200
-
Filter Media 210 Micron Nominal Water
-
Maximum Filter Operating Pressure120 PSI
-
Maximum Viscosity7500 SUS (1600 cSt)
-
Maximum Flow Rate4.0 GPM
-
Overall Weight150 lbs
-
Dimensions34.00”W x 12.50”D x 24.92”H
