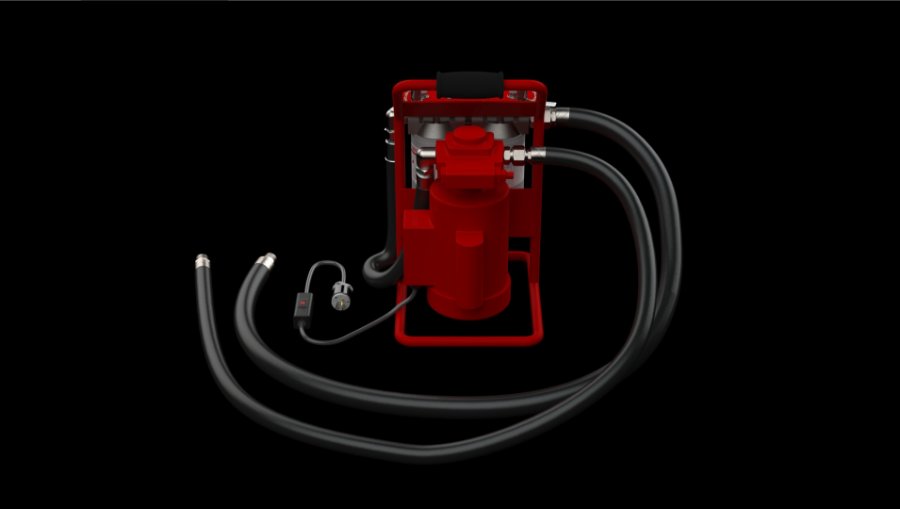

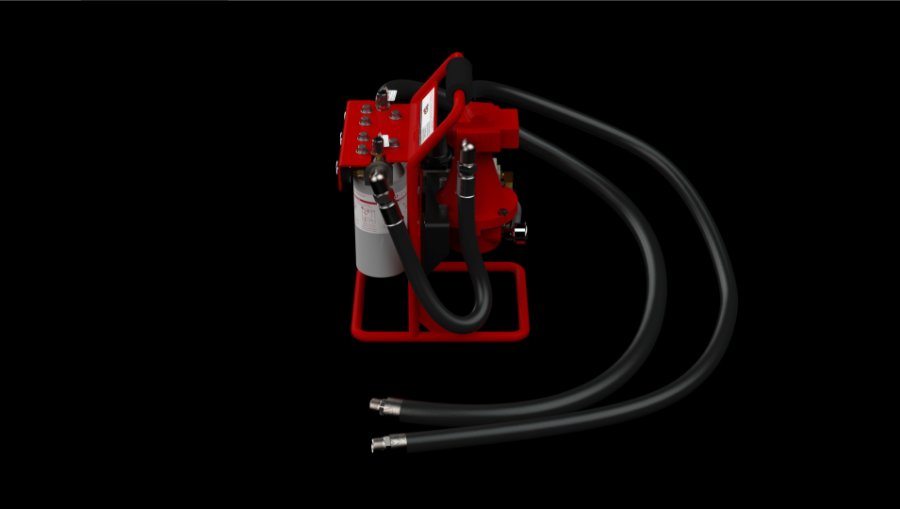

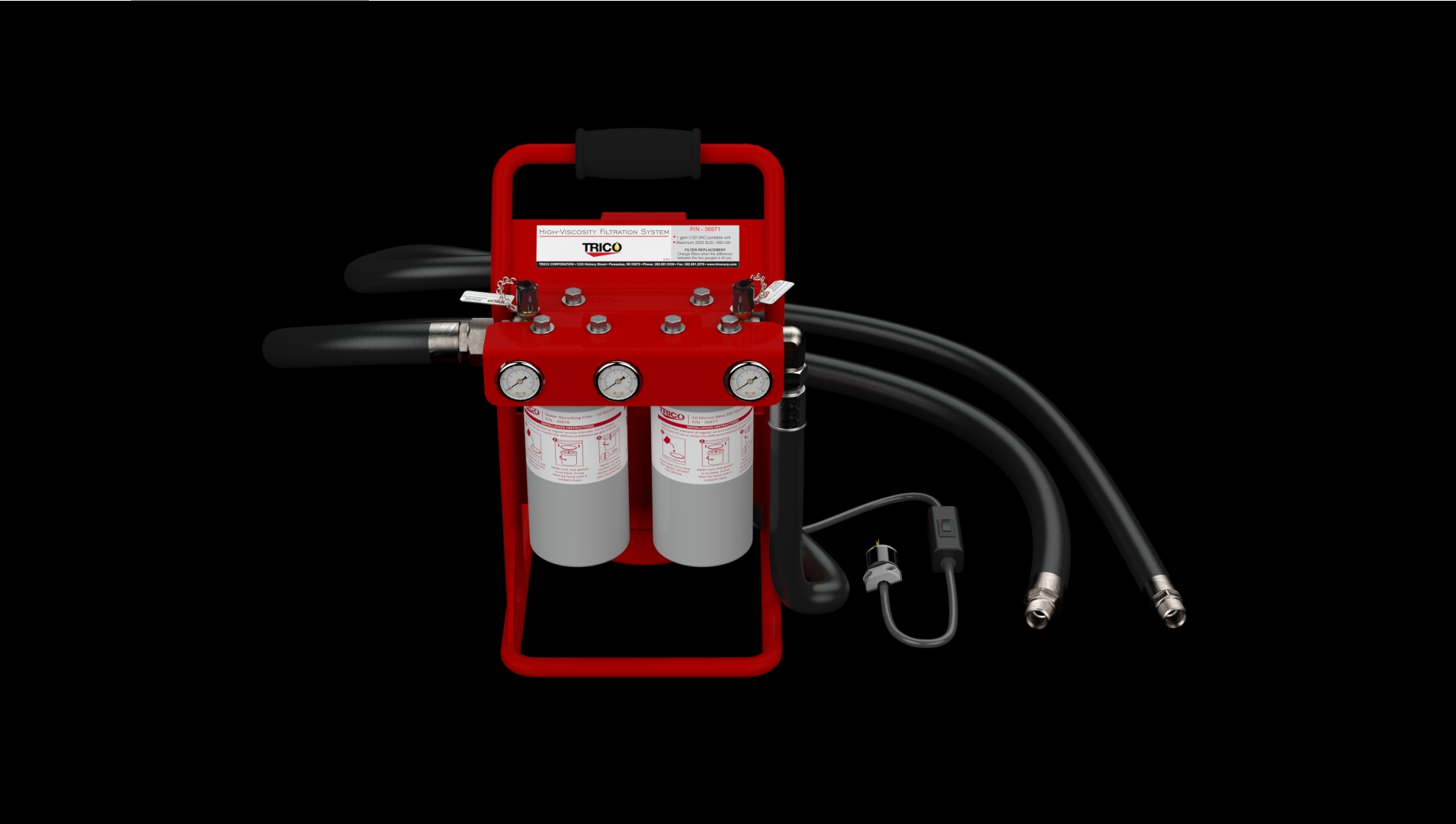

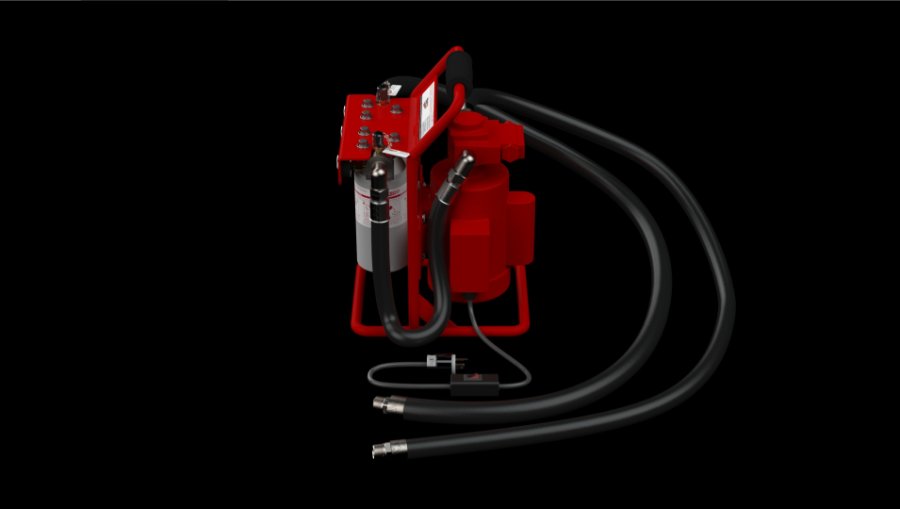

High-Viscosity Hand-Held Systems
These High-Viscosity Hand-Held Systems are designed for portable filtration of higher-viscosity oils. They can filter oils up to 7,500 SUS @ 100ºF (1600 cSt @ 40ºC), up to and including ISO 680 gear oil. The problem with attempting to filter a high-viscosity oil with a lower-viscosity system is that the pump and filters are not designed to work with higher pressures required to push high-viscosity fluids through the system. As a result, these low-viscosity units operate primarily in “bypass” mode where little, if any, of the high-viscosity oil gets filtered.
< class="overline overline--red">
Feature
Differential Pressure Gauges
Indicates when elements need to be changed
< class="overline overline--red">
Feature

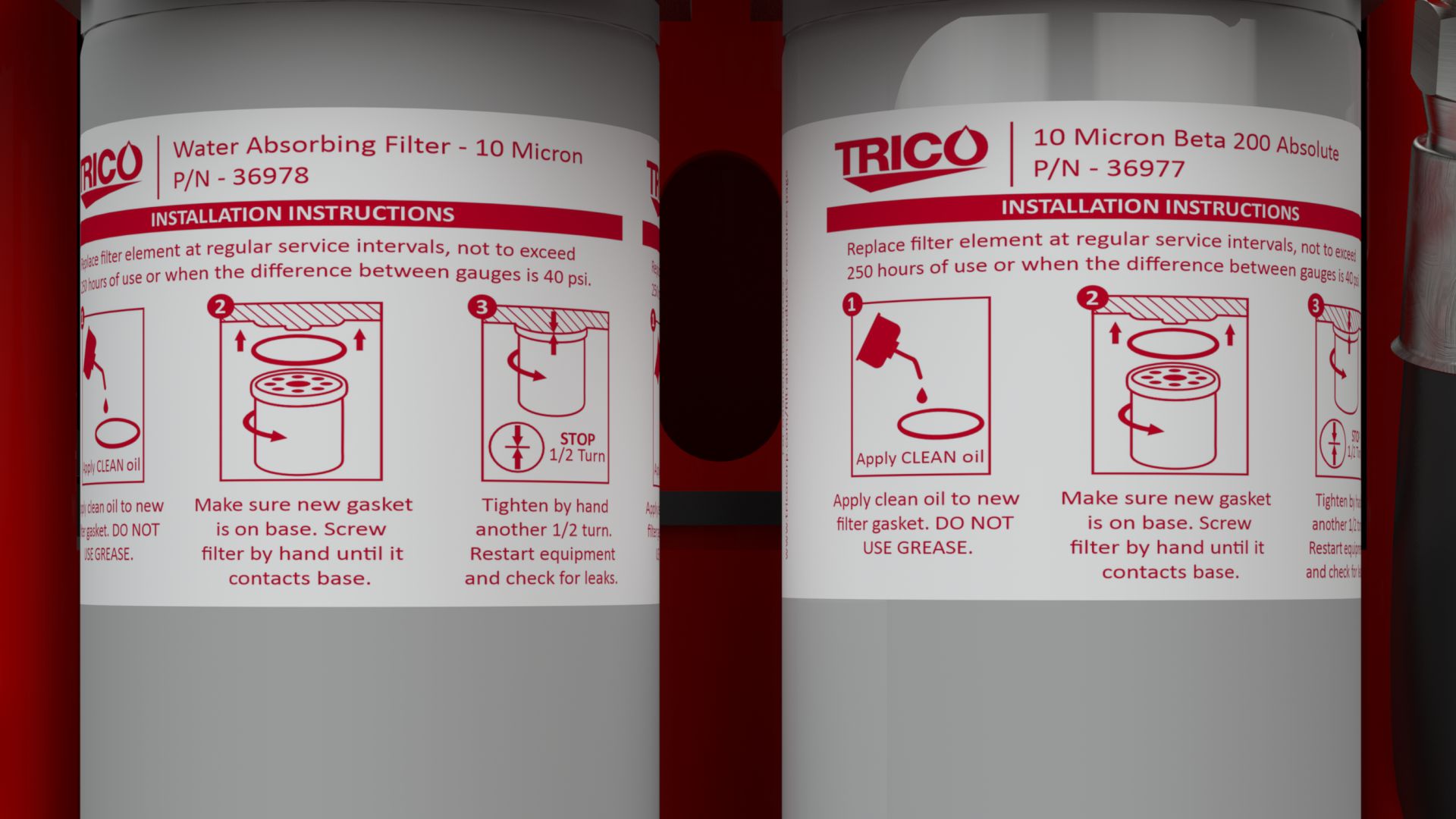

Dual Filters
Dual Filters

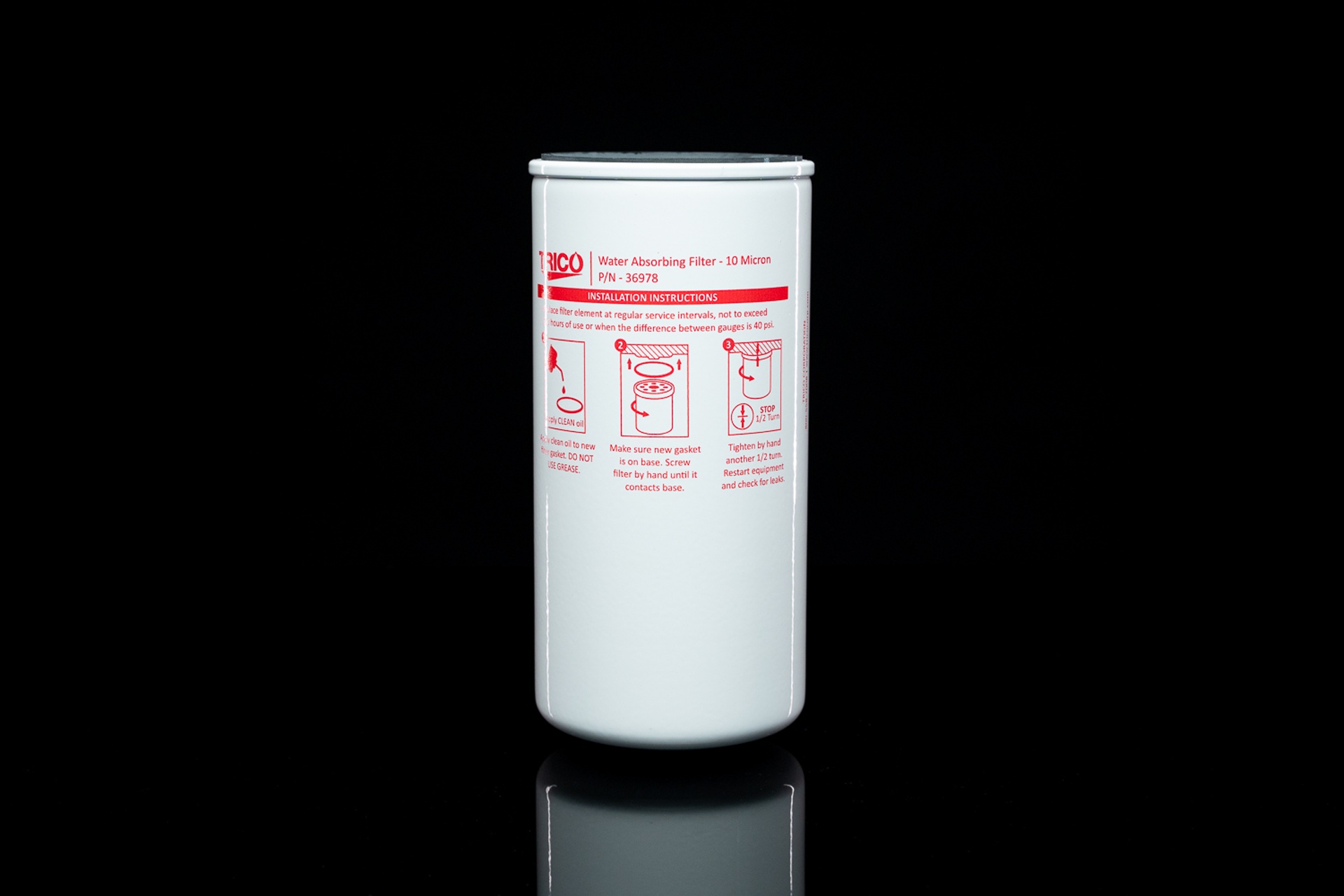

To ensure equipment receives the cleanest oil possible and for increased equipment life, the High-Viscosity Hand-Held Filtration System provides two-stage filtration. The oil flows through the primary filter first, where coarse particulate is removed. Then, the fluid flows through the secondary filter where fine particulate and water are removed.
< class="overline overline--red">
Feature

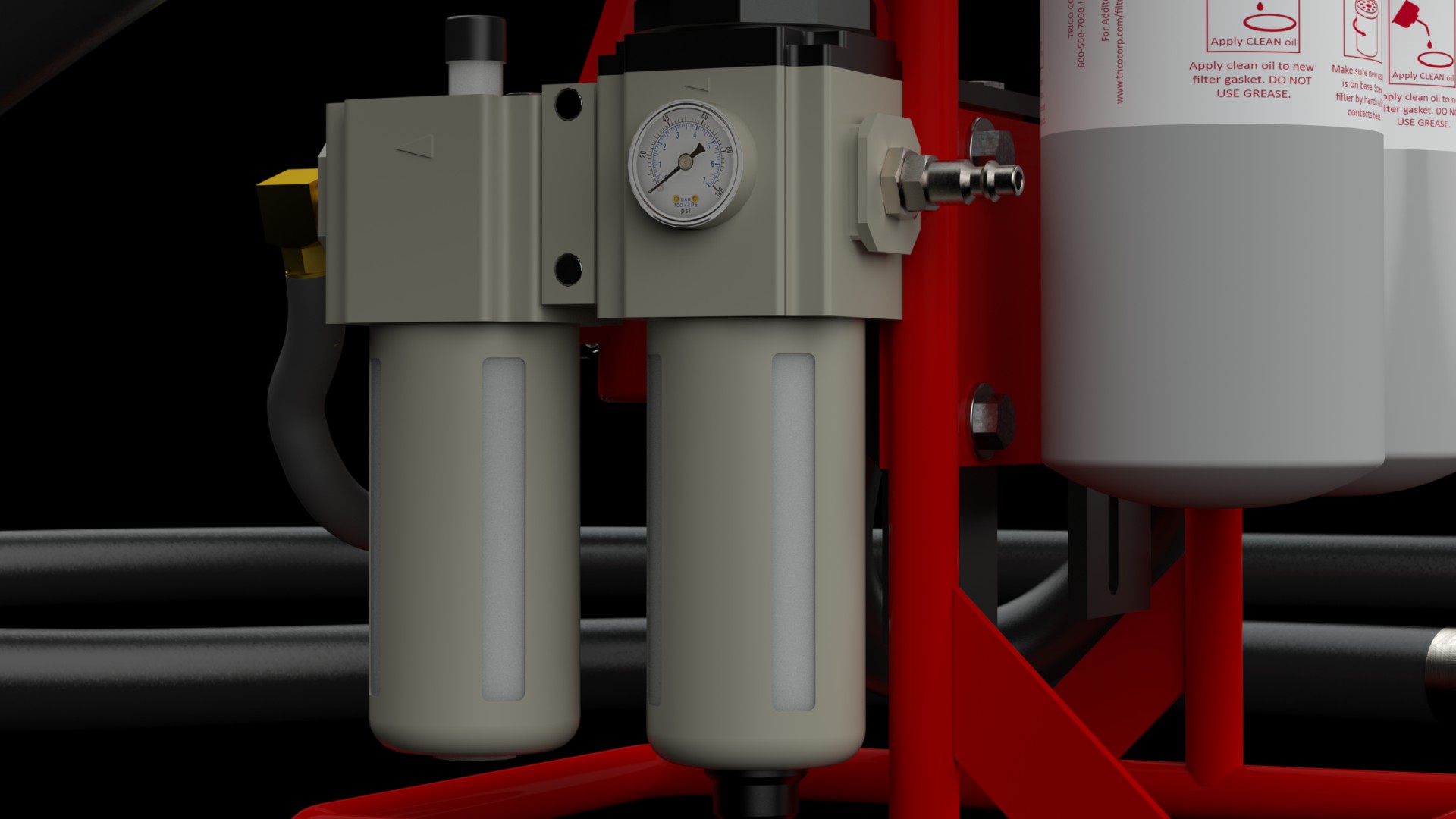

FRL Filter (Pneumatic Only)
FRL Filter (Pneumatic Only)
Removes moisture and debris from air supply line to prevent premature wear and failure
Additional Features
- Compact
- Lightweight design provides flexibility to service equipment located in hard-to-reach areas
- Hose Assembly
- Heavy-duty hydraulic hose (6' or 10' lengths) wih 3/4" MNPT or quick connects
- Oil Sampling Ports
- Two sampling ports available to monitor condition of oil
Other Specs
| Model | Description | Motor Type | Hose Length | NPT/Quick Connect Couplers |
|---|---|---|---|---|
| 36934 | Pneumatic High-Viscosity Hand-Held Filtration System | Pneumatic | 6' | 3/4" NPT Male |
| 36934-OP-10 | Pneumatic High-Viscosity Hand-Held Filtration System | Pneumatic | 10' | 3/4" NPT Male |
| 36934-QC | Pneumatic High-Viscosity Hand-Held Filtration System | Pneumatic | 6' | 3/4" ISO B Quick Connect Couplers |
| 36934-QC-10 | Pneumatic High-Viscosity Hand-Held Filtration System | Pneumatic | 10' | 3/4" ISO B Quick Connect Couplers |
| 36971 | High-Viscosity Hand-Held Filtration System | 120 V, 60 Hz | 6' | 3/4" NPT Male |
| 36971-OP-10 | High-Viscosity Hand-Held Filtration System | 120 V, 60 Hz | 10' | 3/4" NPT Male |
| 36971-QC | High-Viscosity Hand-Held Filtration System | 120 V, 60 Hz | 6' | 3/4" ISO B Quick Connect Couplers |
| 36971-QC-10 | High-Viscosity Hand-Held Filtration System | 120 V, 60 Hz | 10' | 3/4" ISO B Quick Connect Couplers |
-
Pump TypeIndustrial Grade Gear Pump
-
Motor TypeElectric or Pneumatic
-
Flow Capacity1 GPM
-
Pump Speed3/4 HP @ 1750 RPM – Electric #36971
Max 1.7 HP @ 3000 RMP Variable – Pneumatic #36934 -
Maximum Inlet Vacuum15″ of Mercury
-
Hose Sizing.75″ Suction/ 1″ Discharge @ 6 0r 10 feet long
-
Max. Operating Temperature200ºF (93ºC)
-
Pump By-Pass85 PSI
-
Filter By-Pass43 PSI
-
Maximum Viscosity1600 cSt @ 40ºF / 7500 SUS
-
Seal and Gasket MaterialViton®
-
Electrical Service Required120 V, 60 Hz (electric version only)
-
Air Inlet Connection1/4″ NPT Female (pneumatic version only)
-
Max. Operating Pressure100 PSI (pneumatic version only)
-
Weight50 lbs – Electric
49 lbs – Pneumatic -
DimensionsElectric - 12.89"W x 13.88"D x 19.14"H
Pneumatic - 14.65"W x 13.57"D x 19.14"H
