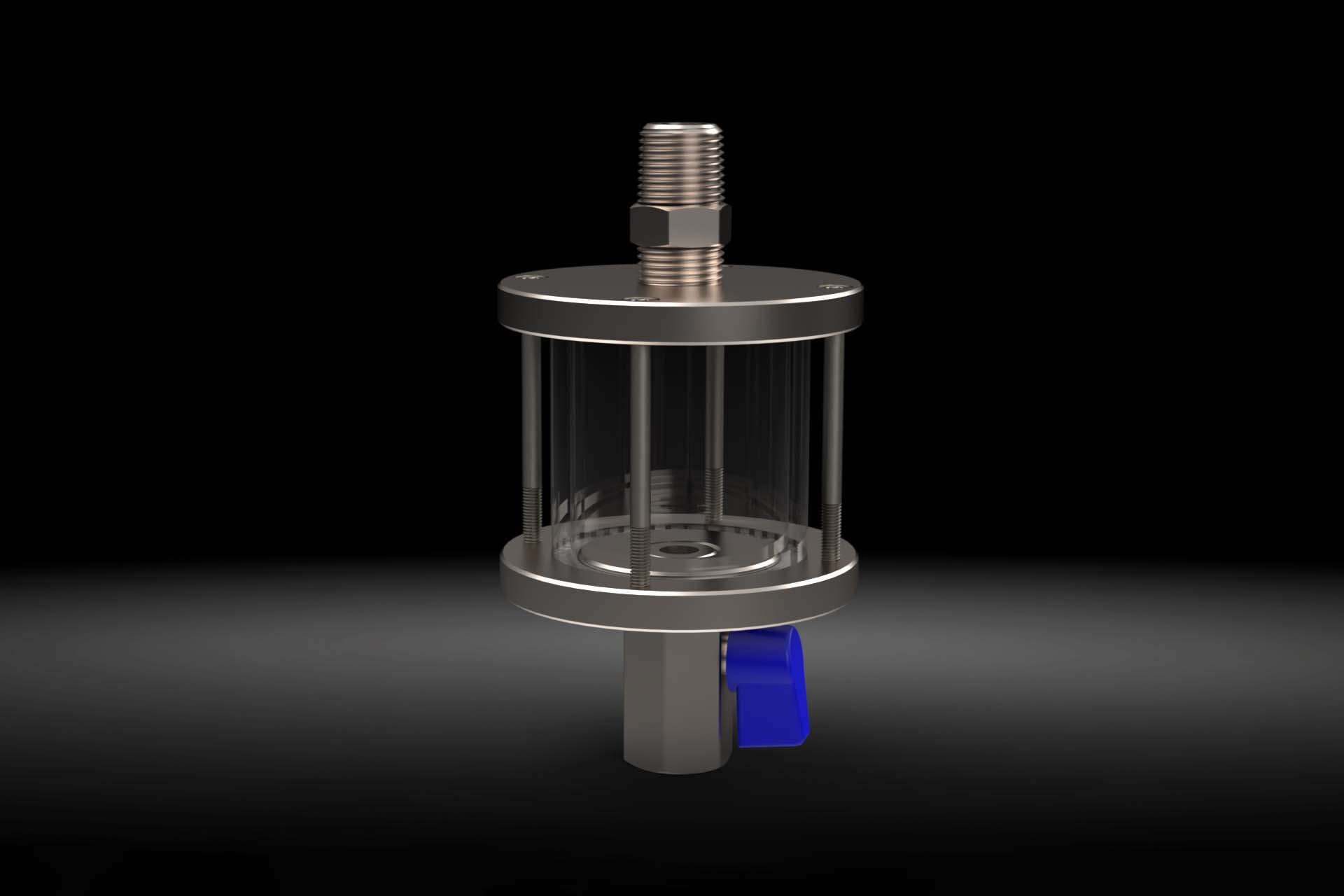

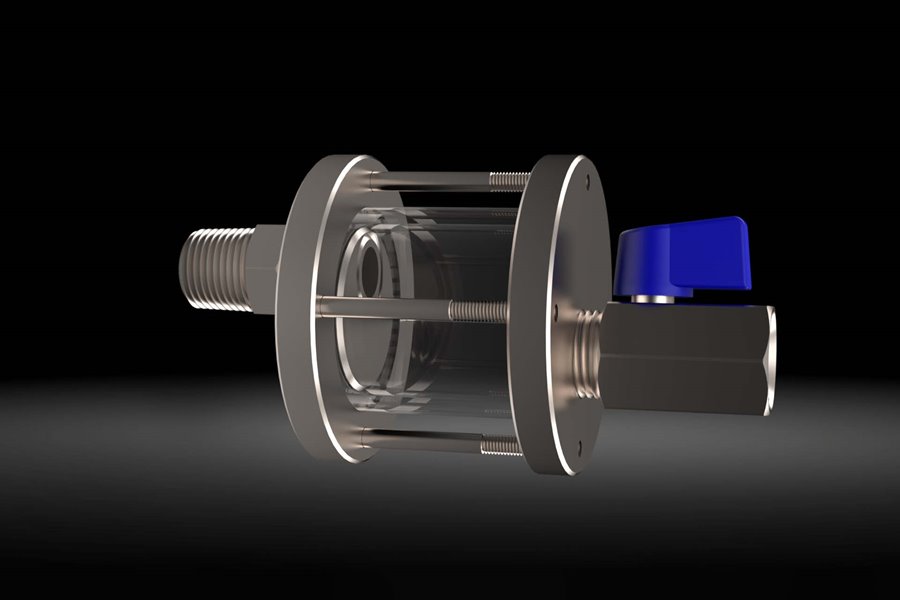

Sump Bottle - Ball Valve
Sump Bottles are used as collection chambers on bearing housings and other oil sump applications. They collect water and contaminants and have a ball valve drain for easy inspection and removal of fluids.
Additional Features
- Simple to Use
Easy open/close ball valve drain
- Variety
Pyrex 2- and 5-ounce glass reservoir
- Durable Construction
Stainless steel end caps on reservoir
Other Specs
| Model | Description | Connection (NPT) | Capacity | Height | Diameter | Style |
|---|---|---|---|---|---|---|
| 31400 | Sump Bottle with Ball Valve Drain | 1/2 | 2 oz | 5.77" | 3.00" | Centered Valve |
| 31402 | Sump Bottle with Offset Ball Valve Drain | 1/2 | 2 oz | 5.77" | 3.00" | Offset Valve |
| 31405 | Sump Bottle with Ball Valve Drain | 1/2 | 5 oz | 6.26" | 3.50" | Centered Valve |
| 31407 | Sump Bottle with Offset Ball Valve Drain | 1/2 | 5 oz | 6.26" | 3.50" | Offset Valve |
-
Operating Temperature-40°F (-40°C) and 225°F (107 °C)
-
ReservoirBorosilicate – Pyrex
-
GasketBuna-N
-
MaterialsStainless Steel
