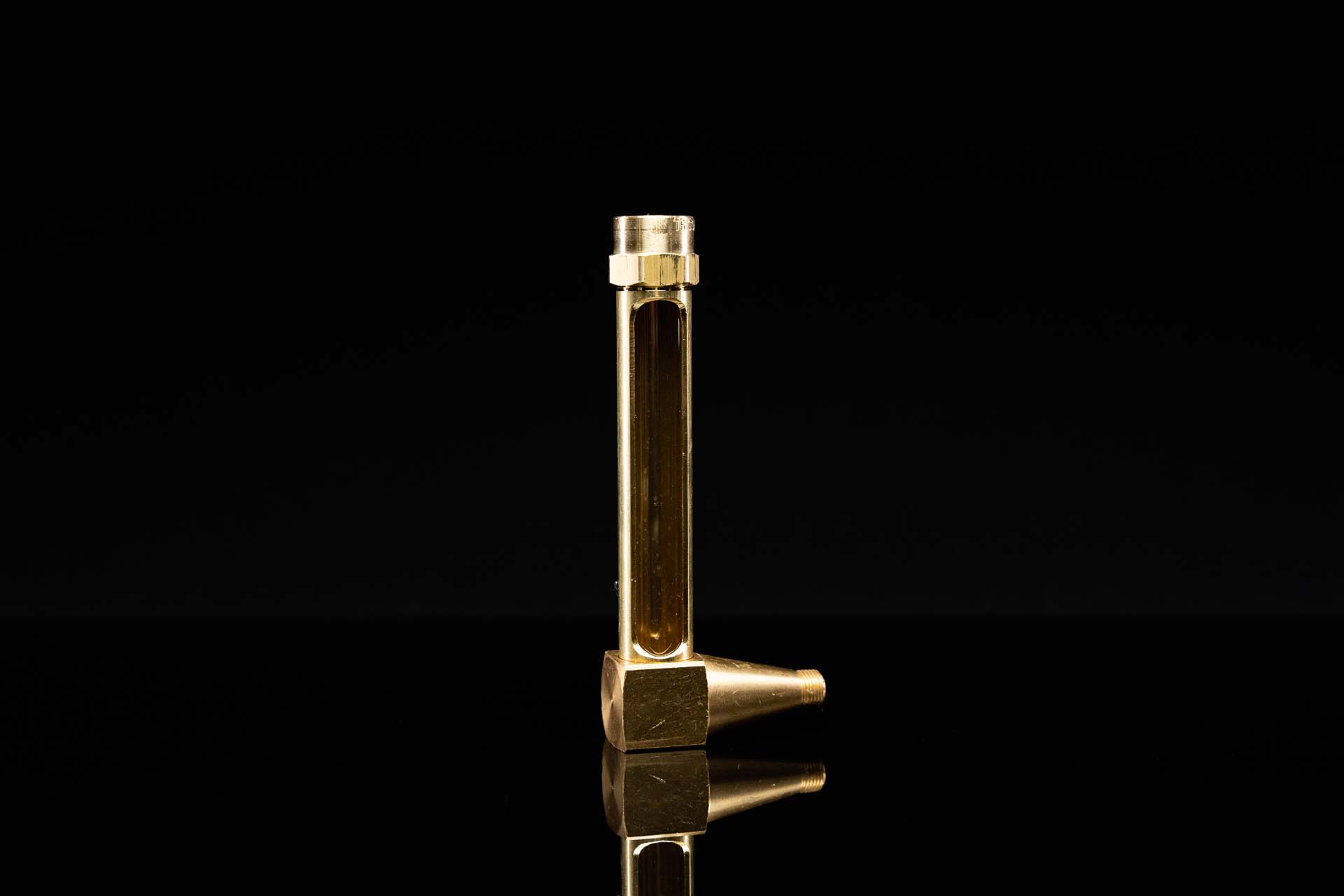

Short Elbow Connector Liquid Level Gauge
Short Elbow Connector Liquid Level Gauges provide easy viewing in many industrial applications. They are ideal for bearings, transformers, and many other non-pressure applications.
Feature
Optional Top Caps
Vented Top Cap
The vented cap is the standard cap on the Liquid Level Gauges.
Filter Cap
A porous filter is installed in the vent cap to minimize contamination. To order a Liquid Level Gauge with a filter cap, add a F as a suffix to the part number.
Closed System Top Cap
For closed system application, Liquid Level Gauges can be ordered with a top cap that has a 1/8" NPT port for installing a pressure-balancing line to the reservoir. Contamination from water and particulate is reduced and equipment life is prolonged. To order a Liquid Level Gauge with the closed system top cap, add the suffix C to the part number.
Additional Features
- Wide Viewing Range
Guards are standard on all sights and may be rotated 360º for easy viewing.
- High Temperature Rating
Glass tubes offer high temperature use to 250ºF.
- Multiple Options
Vented design with a wide range of mounting styles to fit most applications.
- Durable Construction
Brass construction and glass tubes provide long life.
Other Specs
| Model | Description | Dim A (in) | Dim B (in) | Dim C (in) | Dim D (in) | Dim E (in) | Square |
|---|---|---|---|---|---|---|---|
| BE-0150-2 | LLG | 1/4 | 1-1/2 | 3-1/2 | 1-3/4 | 5/8 | 7/8 |
| BE-0150-3 | LLG | 3/8 | 1-1/2 | 3-1/2 | 1-3/4 | 5/8 | 7/8 |
| BE-0350-2 | LLG | 1/4 | 3-1/2 | 5-1/4 | 1-3/4 | 5/8 | 7/8 |
| BE-0350-3 | LLG | 3/8 | 3-1/2 | 5-1/4 | 1-3/4 | 5/8 | 7/8 |
| BE-0550-2 | LLG | 1/4 | 5-1/2 | 7-1/4 | 1-3/4 | 5/8 | 7/8 |
| BE-0550-3 | LLG | 3/8 | 5-1/2 | 7-1/4 | 1-3/4 | 5/8 | 7/8 |
| BE-0750-2 | LLG | 1/4 | 7-1/2 | 9-1/4 | 1-3/4 | 5/8 | 7/8 |
| BE-0750-3 | LLG | 3/8 | 7-1/2 | 9-1/4 | 1-3/4 | 5/8 | 7/8 |
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
Description
Dim A (in)
Dim B (in)
Dim C (in)
Dim D (in)
Dim E (in)
Square
-
ConstructionBrass
-
SightGlass
-
SealsViton®
-
Max. Operating Temp250ºF
