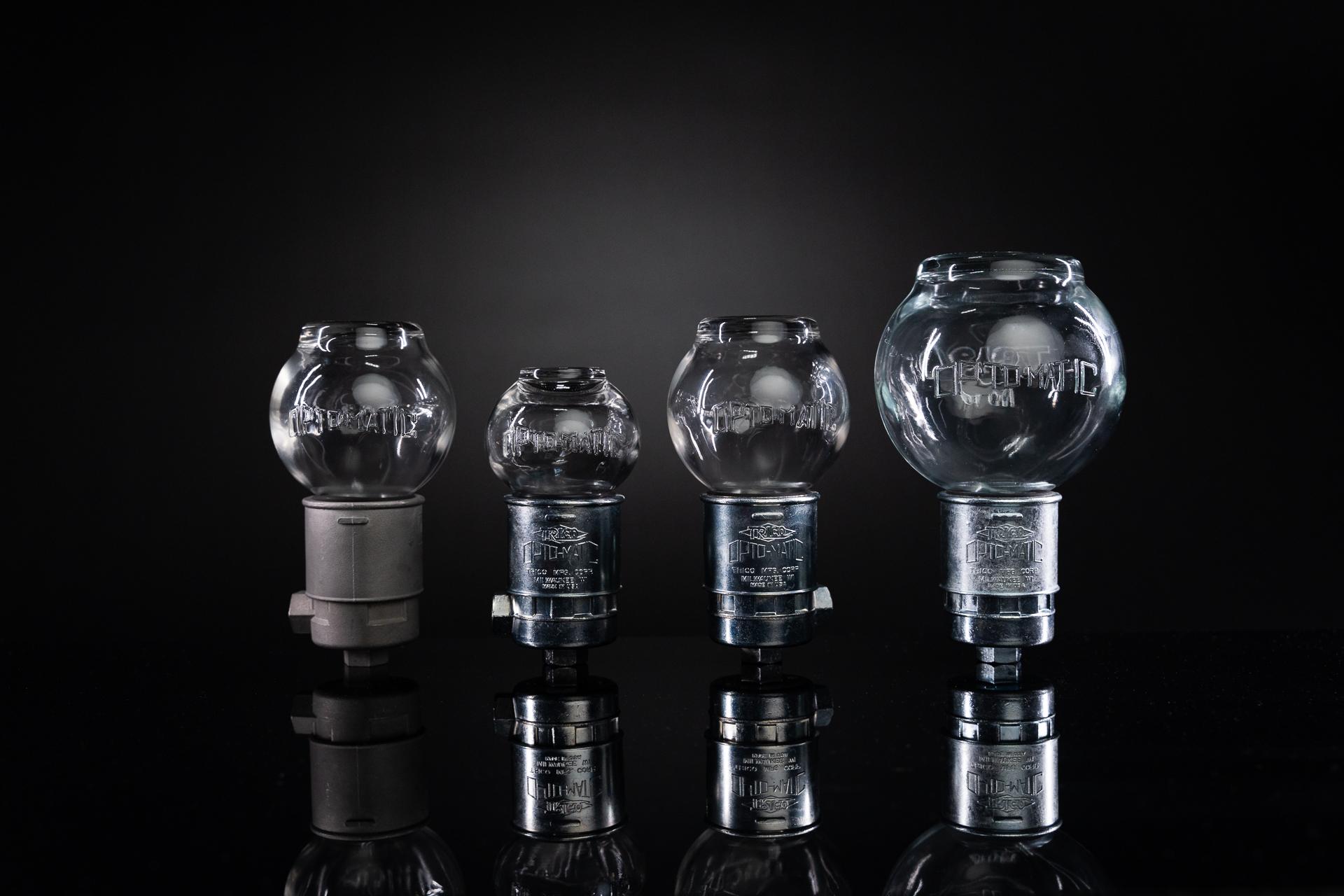

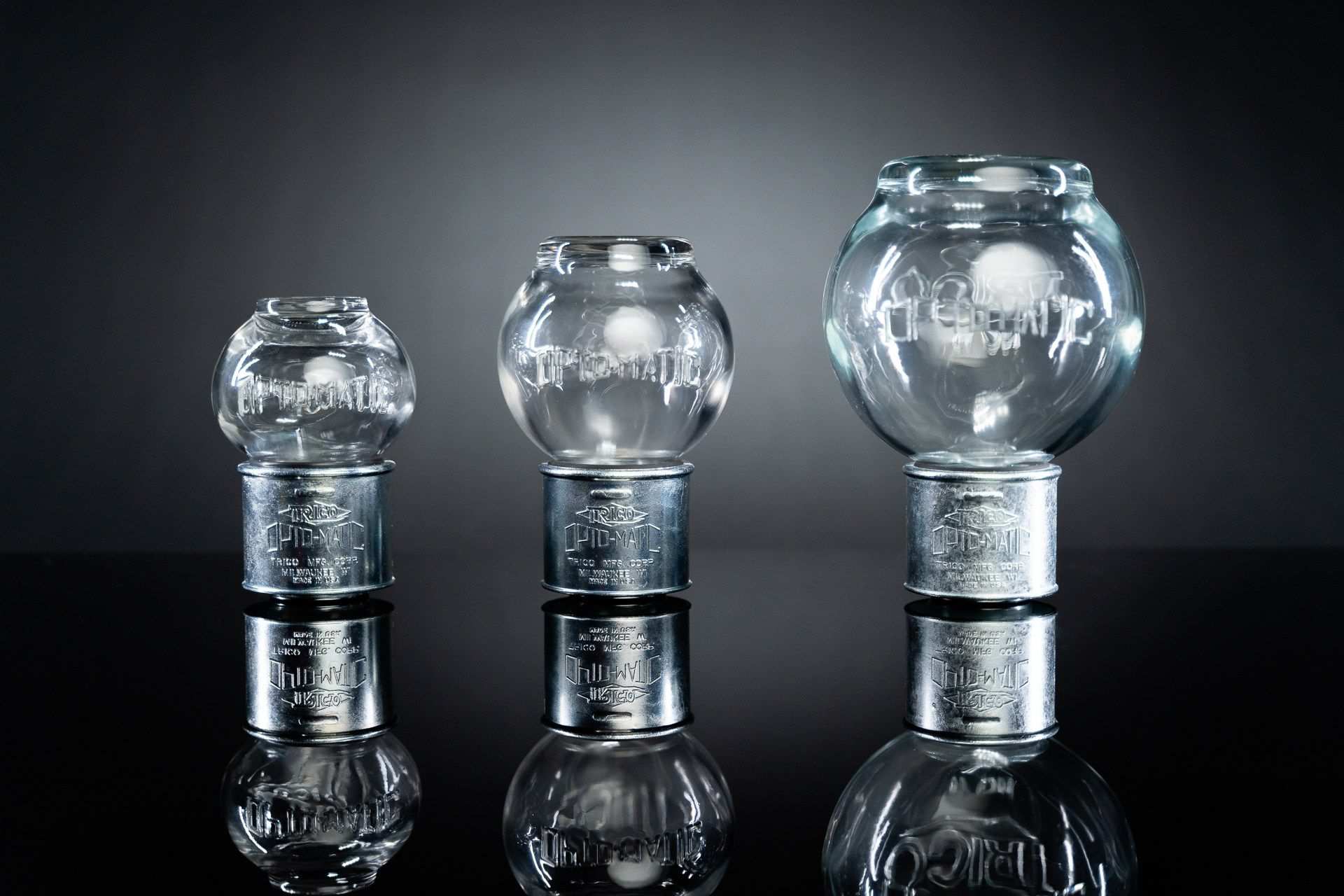

Opto-Matic Oiler - Glass
Constant level oilers have been utilized on rotating equipment for more than 90 years. They are the most effective and widely used method of maintaining the proper oil level in process and rotating equipment that depletes lubricant through use, wear, and friction. They are simple in design with no moving parts and follow the most basic principles of fluid dynamics. Once the proper level has been set, replacing the oil in the reservoir is the only required maintenance.
Feature
Adjustable Oil Level
This unique device raises and lowers the oil level in the lubricating sump. This is accomplished by moving the threaded arms up or down the leveling stem until the desired oil level is achieved. The leveling arms are then locked tight and maintain that setting.
Feature
Air Vent Slots
The air vent slots permit air to enter the oiler for proper functioning at all times. The air vents are equally spaced around the oiler. The chances of all the air vents becoming clogged is almost impossible compared to oilers with a single vent hole.
Additional Features
- One-Piece Glass Reservoir
A one-piece glass reservoir ensures proper constant level function. Compared to competitive models, there is no possibility of leakage that would cause overfilling of the bearing housing.
- Large Surge Chamber
Large surge chamber helps prevent overflow of oil during machine start-up or shutdown
- Side and Bottom Connections
Oilers available with both side and bottom connections for simplified installation
- Durable Models Available
Stainless steel models provide long life in corrosive environments in the chemical, pulp and paper, and mining industries.
Other Specs
| Model | Description | Material (opto-matic oiler-glass) | Capacity (Opto-Matic Oiler- glass) | Connection | Dim A (in) | Dim B (min) | Dim B (max) | Dim C (min) |
|---|---|---|---|---|---|---|---|---|
| 30002 | Opto-Matic | Zinc Plated | 2 1/2 oz. | 1/4 NPT | 2-1/2 | 3-15/16 | 4-1/4 | 11/32 |
| 30003 | Opto-Matic | Zinc Plated | 4 oz | 1/4 NPT | 2-11/16 | 5 | 5-3/4 | 9/32 |
| 30005 | Opto-Matic | Zinc Plated | 8 oz | 1/4 NPT | 3-3/16 | 5-15/16 | 6-11/16 | 9/32 |
| 30010 | Opto-Matic | Zinc Plated | 16 oz | 1/4 NPT | 4-1/8 | 6-13/16 | 7-9/16 | 9/32 |
| 30213 | Opto-Matic | Stainless Steel | 4 oz | 1/4 NPT | 2-11/16 | 4-15/16 | 5-11/16 | 9/32 |
| 30215 | Opto-Matic | Stainless Steel | 8 oz | 1/4 NPT | 3-3/16 | 5-7/8 | 6-5/8 | 9/32 |
| 30220 | Opto-Matic | Stainless Steel | 16 oz | 1/4 NPT | 4-1/8 | 6-3/4 | 7-1/2 | 9/32 |
-
Max. Operating Temp.250ºF Continuous
-
ReservoirOne-Piece Glass Bottle
-

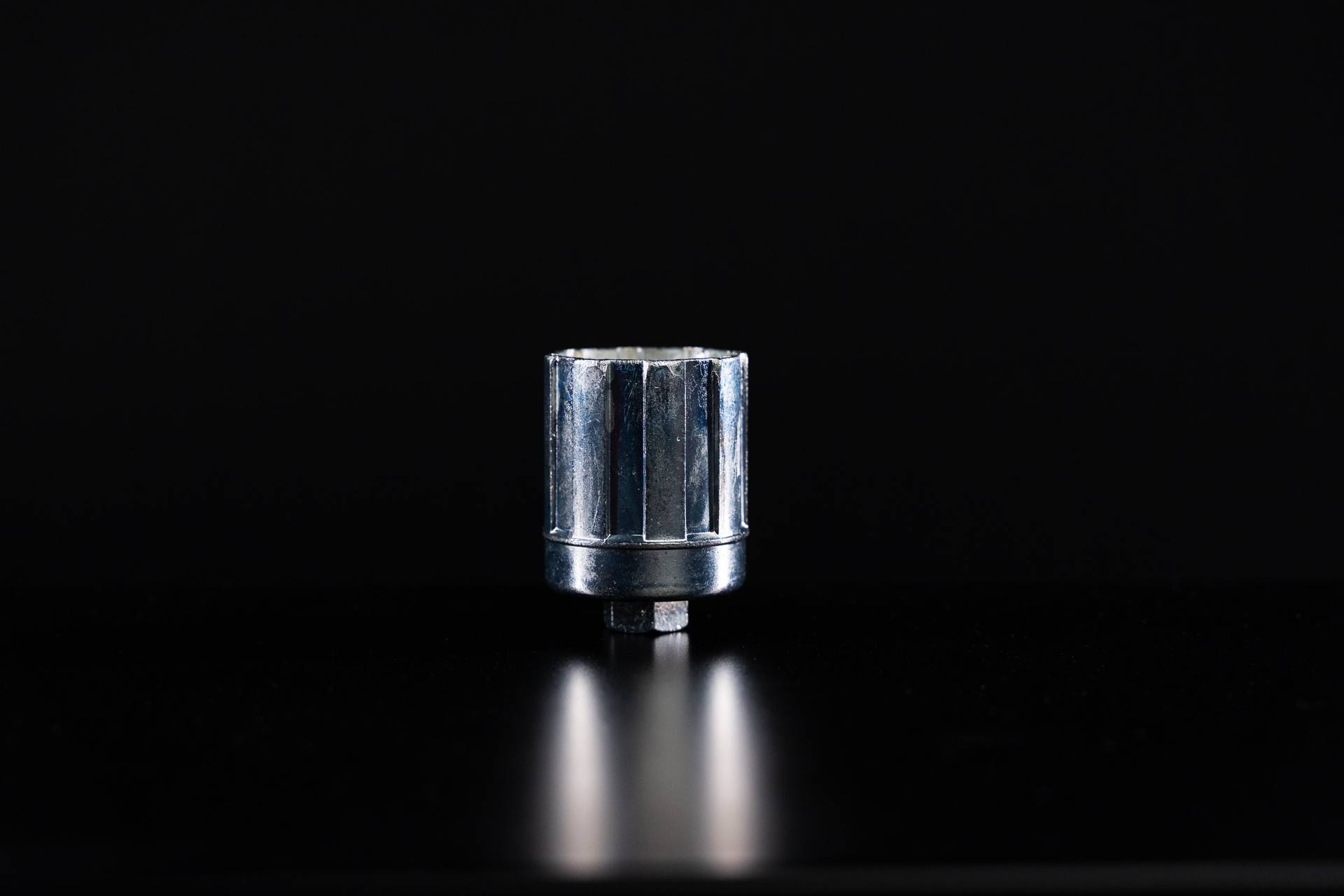

CastingStandard – Zinc
Stainless Steel – 316 Stainless Steel -
FinishStandard – Zinc/Chromate Plated
316 Stainless Steel -
Internal PartsZinc Plated Steel
-
O-RingViton®
Related Products
Smart Monitoring, Smarter Maintenance
Enhancing Oil Level Monitoring with Machine Vitals

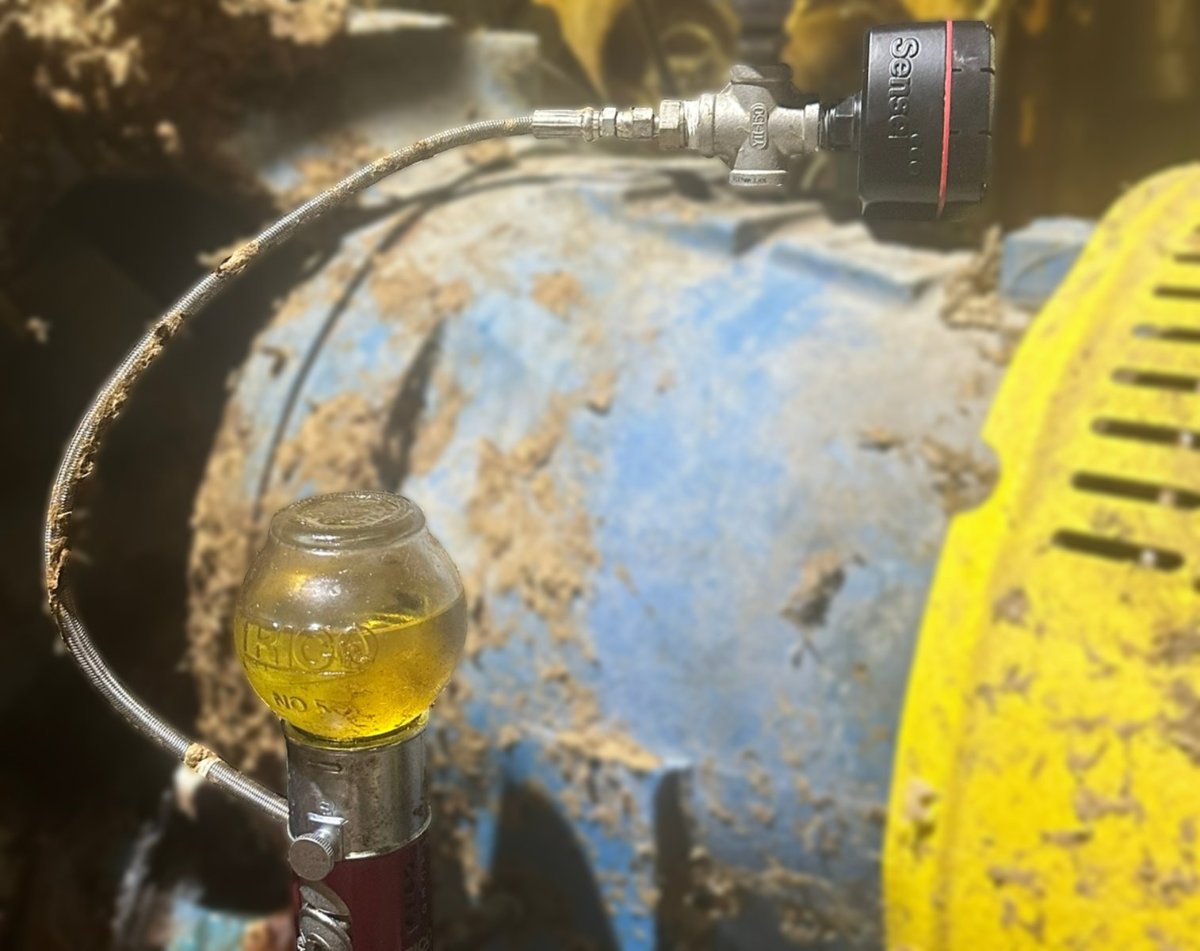

Machine Vitals™ offers a powerful complement to constant level oilers by providing early indications of potential issues related to low or high oil levels. As part of the Sensei® IIoT Network, this advanced condition monitoring device tracks critical parameters such as temperature, pressure, relative humidity, acoustics, and acceleratory variance. By delivering a comprehensive overview of machinery health, Machine Vitals™ ensures that you can address oil level concerns promptly and maintain optimal equipment performance.
