Low-Viscosity Hand-Held Filtration System

The Low-Viscosity Hand-Held System is a compact, lightweight unit for transferring and filtering particulate and water out of industrial oils. The unit is ideal for hard-to-reach places and application with 3-50 gallon reservoirs. The system is capable of delivering a flow up to 5.5 GPM and is rated for use with lubricants up to a viscosity of 2,000 SUS @ 100ºF, up to and including ISO 220.

Contact Us to Purchase
< class="overline overline--red"> Feature

Dual Filters

Two-stage filtration for long element life and pump protection
< class="overline overline--red"> Feature

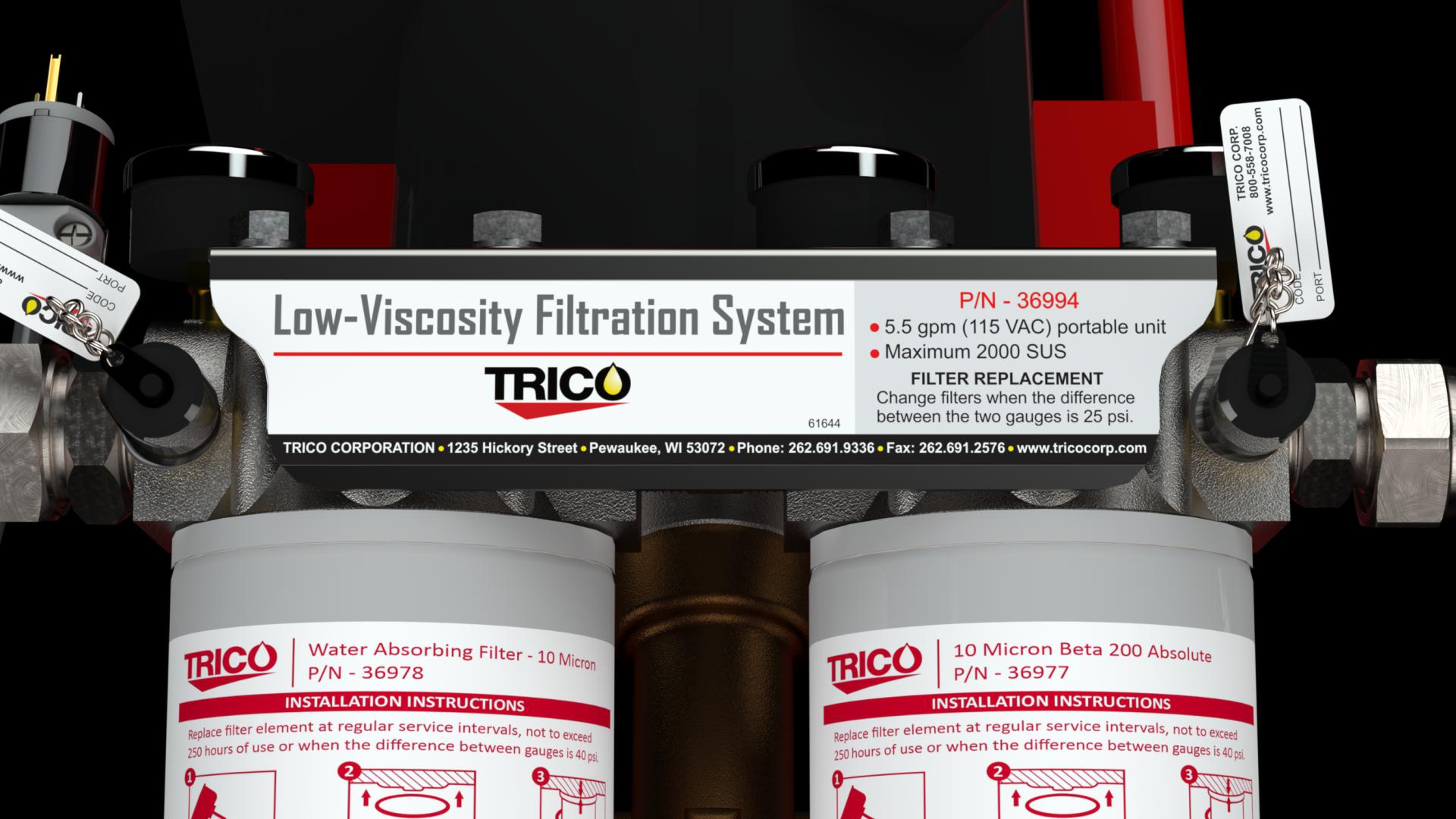

Oil Sampling Ports

Two sampling ports available to monitor condition of oil
< class="overline overline--red"> Feature

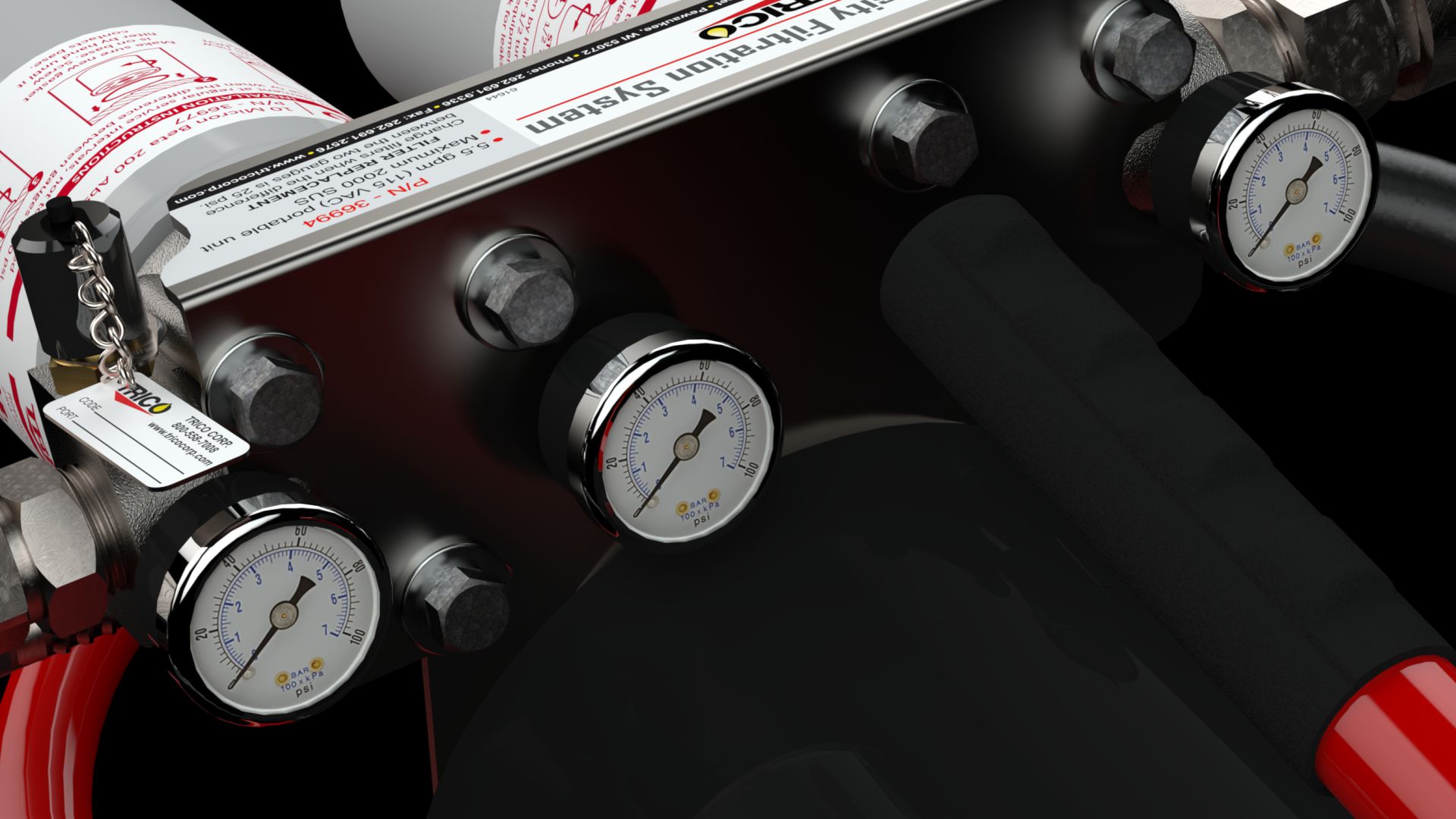

Differential Pressure Gauges

Indicates when elements need to be changed

Additional Features

Compact Frame
A lightweight design provides flexibility to service equipment located in hard-to-reach areas.
Industrial Grade Gear Pump
Industrial quality for long life
Hoses
Heavy-duty hydraulic hoses (6' or 10') with 3/4" MNPT or quick connects

Other Specs

Model Description Motor Type Hose Length NPT/Quick Connect Couplers
36994 Low-Viscosity Hand-Held Filtration System 120 V, 60 Hz 6' 3/4" NPT Male
36994-OP-10 Low-Viscosity Hand-Held Filtration System 120 V, 60 Hz 10' 3/4" NPT Male
36994-QC Low-Viscosity Hand-Held Filtration System 120 V, 60 Hz 6' 3/4" ISO B Quick Connect Couplers
36994-QC-10 Low-Viscosity Hand-Held Filtration System 120 V, 60 Hz 10' 3/4" ISO B Quick Connect Couplers

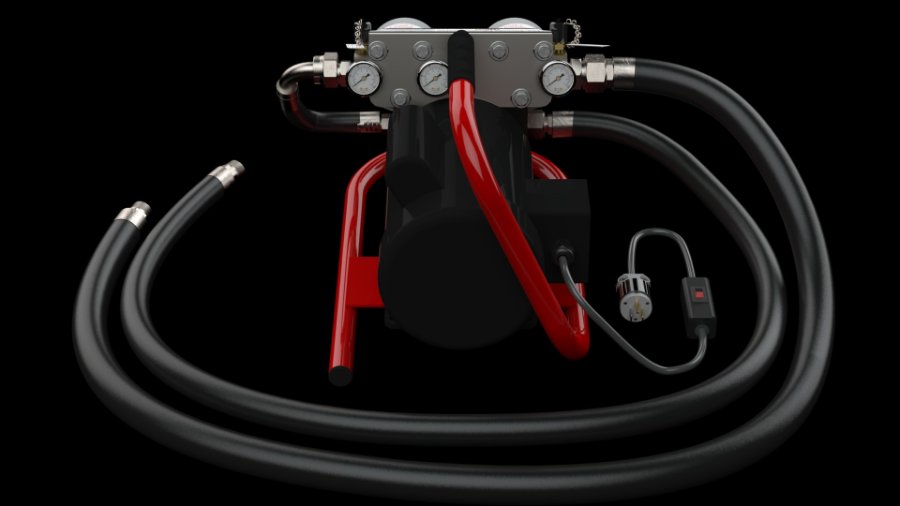

Low-Viscosity Hand-Held | Back View

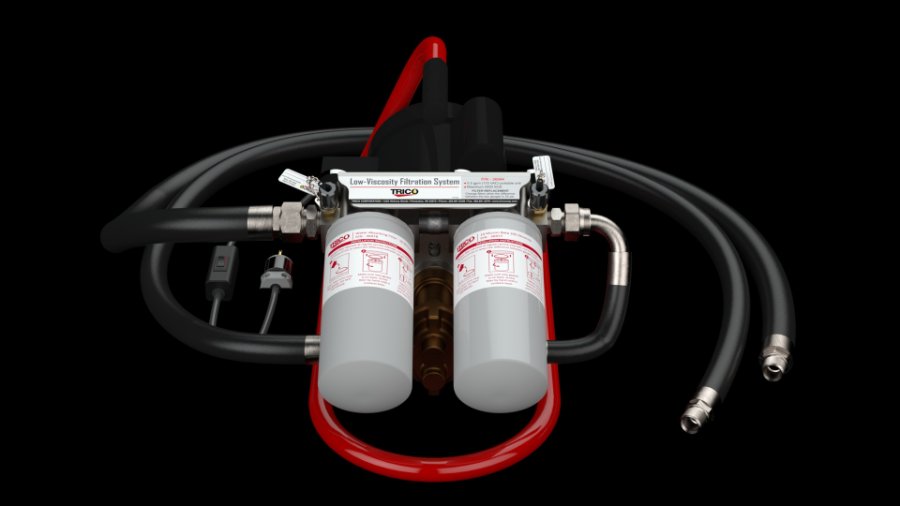

Low-Viscosity Hand-Held | Front View

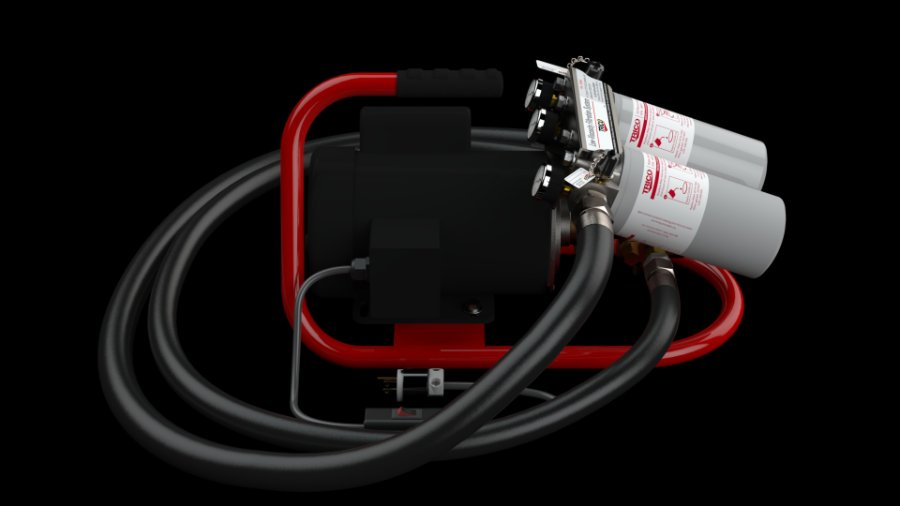

Low-Viscosity Hand-Held | Left Side View

Low-Viscosity Hand-Held | Right Side View
