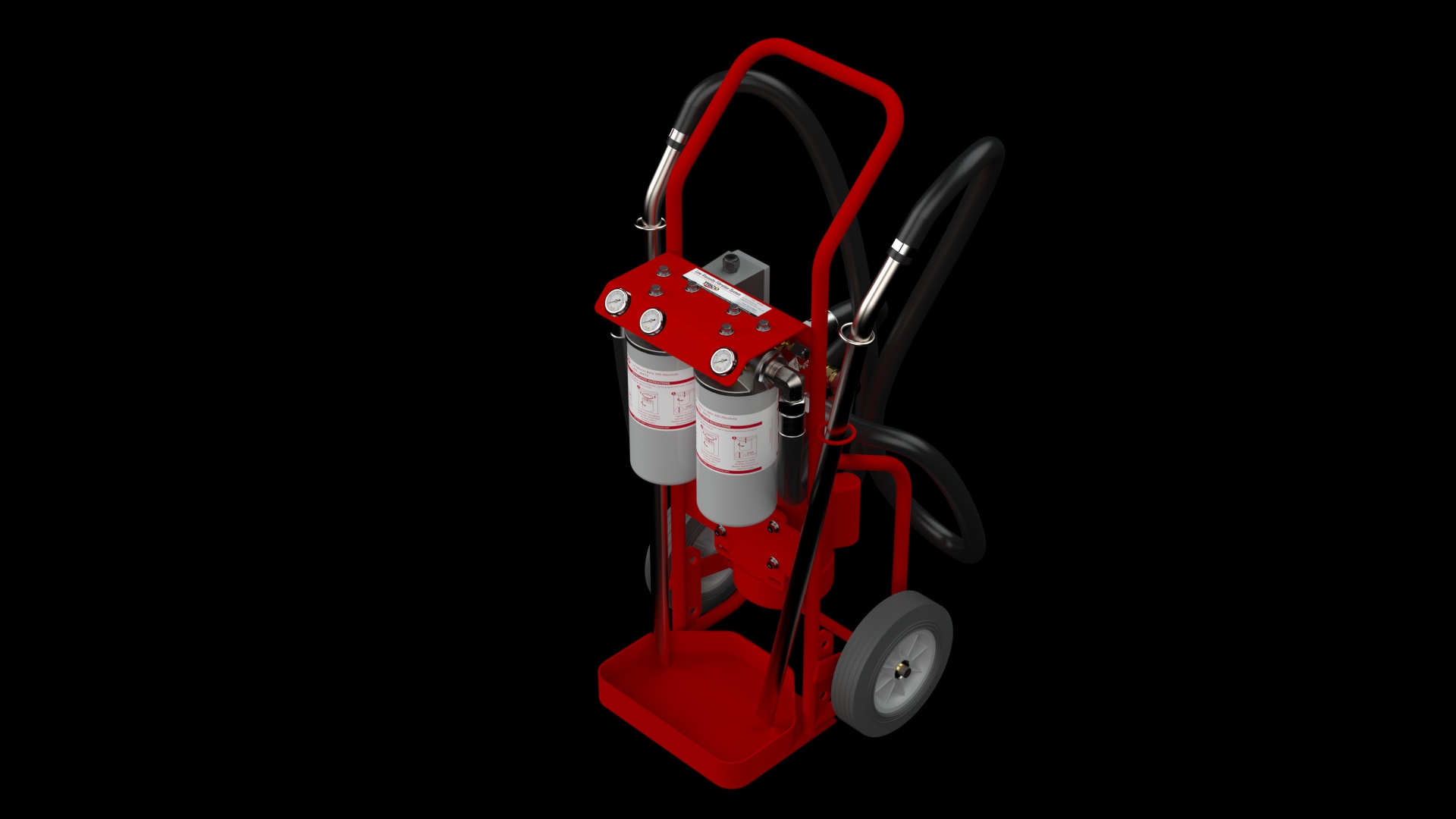

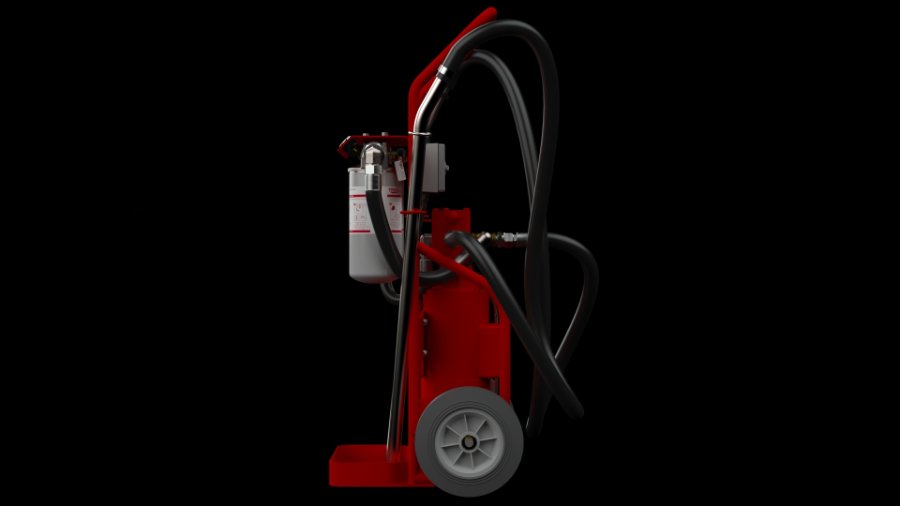

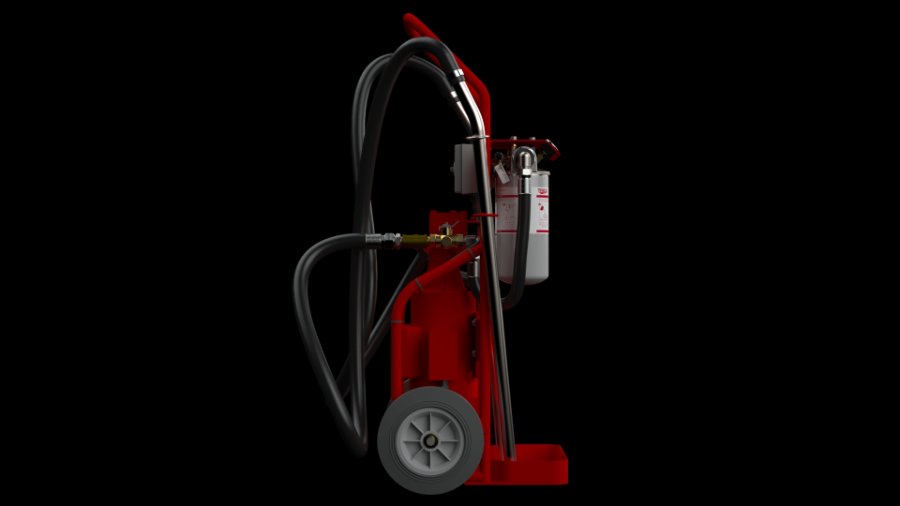

Low-Viscosity Filter Cart
The Low-Viscosity Portable Filter Cart System provides convenient off-line filtration, flushing, conditioning, and fluid transfer of industrial oils. To ensure equipment receives the cleanest oil possible for increased life, the system uses a two-stage filtration process.
Feature
Oil Sampling Ports & Hoses
Feature

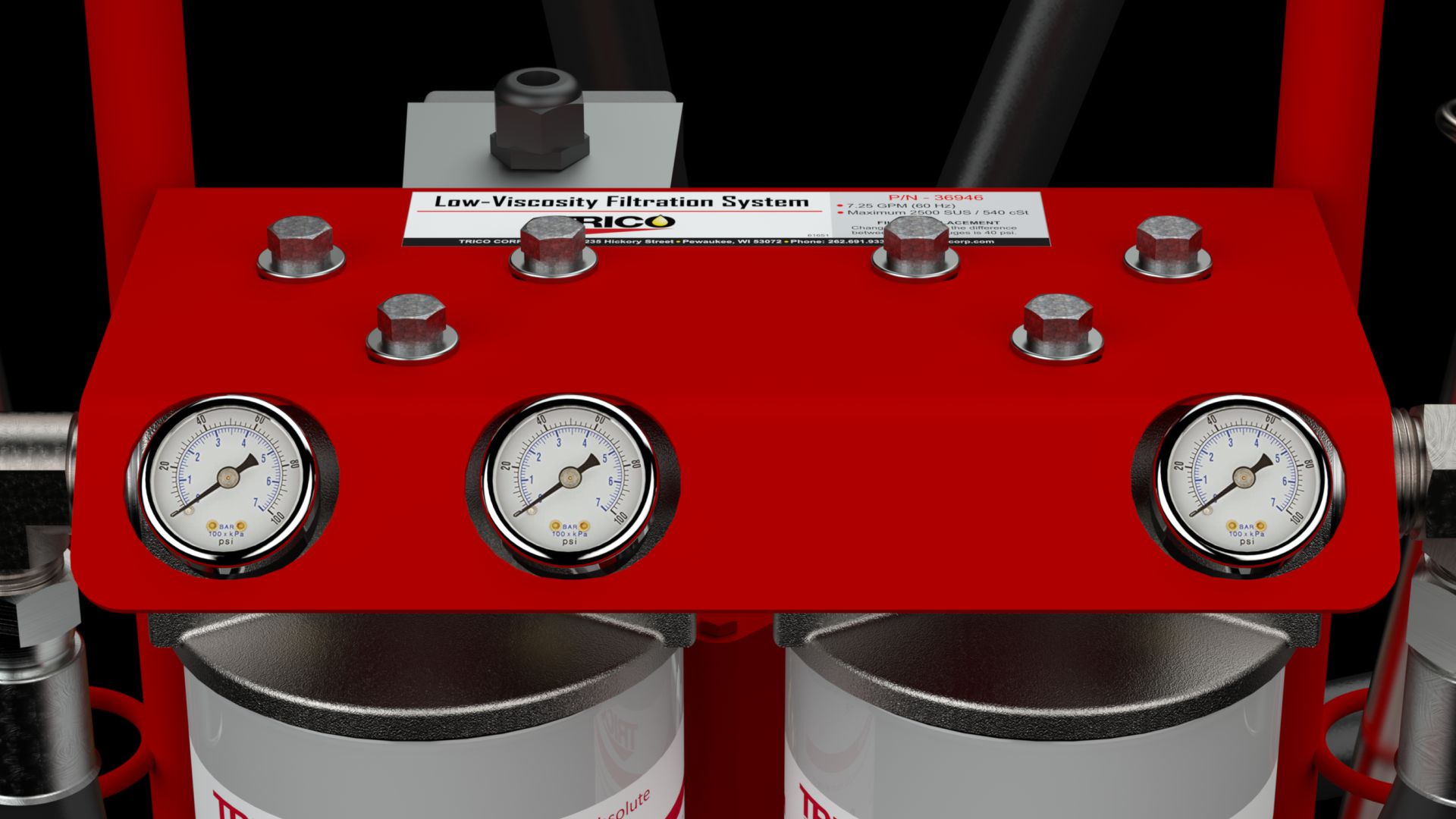

Differential Pressure Gauges
Feature

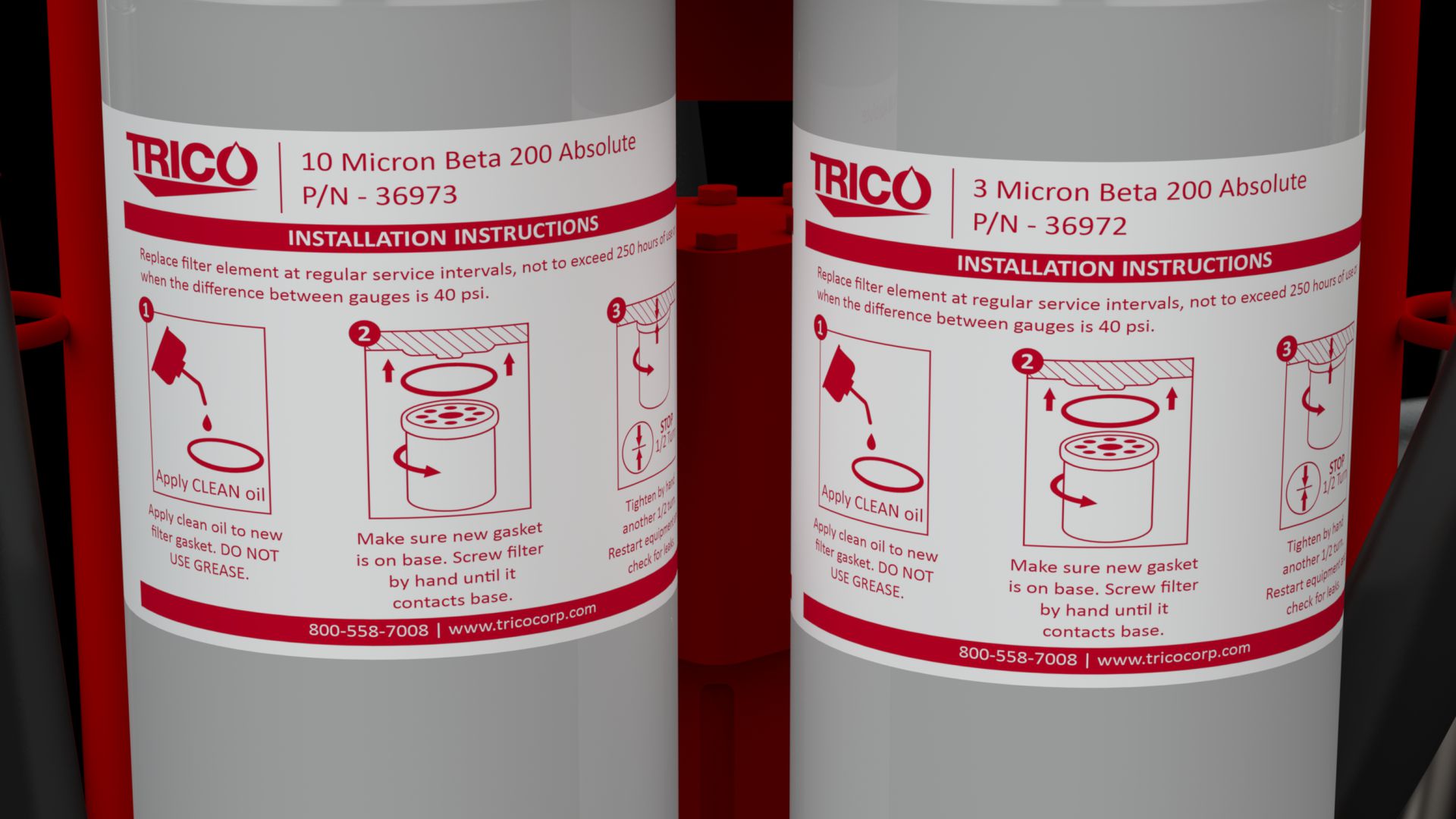

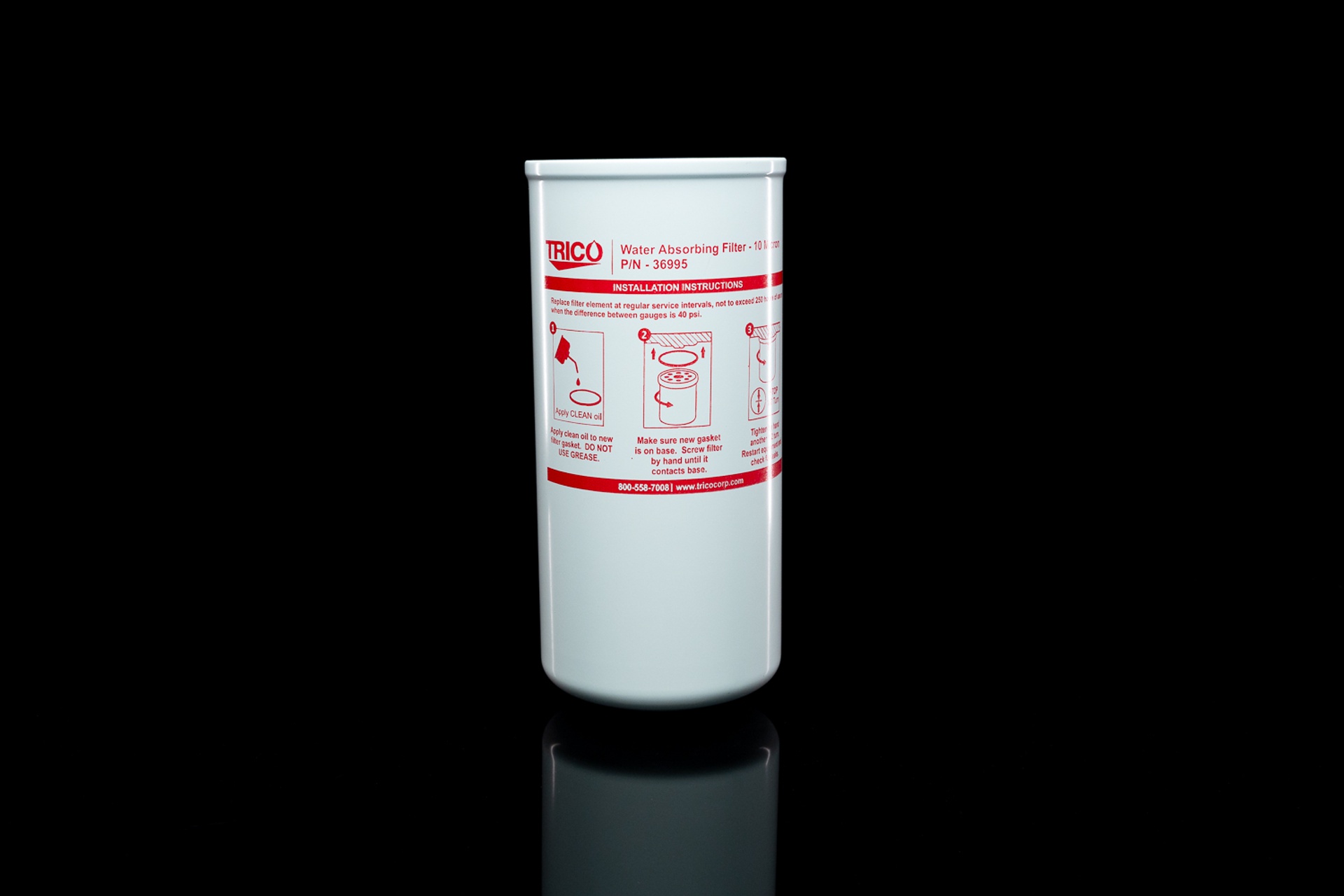

Dual Filters
Additional Features
- Bypass Valve
- Allows transfer of expired oil without filtering
- Flow Rate
- The system is capable of delivering a flow up to 7.25 GPM and is rated for use with lubricants up to a viscosity 2,500 SUS @ 100ºF.
- Industrial Strength Tires
- Wide, solid tires capable of getting over large grate gaps
- Heavy-Duty Cart
- Rugged and built to last
- Hose Assembly
- Heavy-duty hydraulic hoses (6' or 10' lengths) with 3 ft long metal wands or quick connect couplers
- Drip Pan
- Keeps work area safe and clean
Other Specs
| Model | Description | Motor Type | Hose Length | Hose Connection |
|---|---|---|---|---|
| 36946 | Pneumatic High-Viscosity Filtration Cart | 120 V, 60 Hz | 6' | 3-foot Wands |
| 36946-QC | Low-Viscosity Filtration Cart | 120 V, 60 Hz | 6' | 3/4" ISO B Quick Connect Couplers |
| 36946-QC-10 | Low-Viscosity Filtration Cart | 120 V, 60 Hz | 10' | 3/4" ISO B Quick Connect Couplers |
| 36946-W-10 | Low-Viscosity Filtration Cart | 120 V, 60 Hz | 10' | 3-foot Wands |
| 36947 | Low-Viscosity Filtration Cart | 220 V, 50 Hz | 6' | 3-foot Wands |
| 36947-QC | Low-Viscosity Filtration Cart | 220 V, 50 Hz | 6' | 3/4" ISO B Quick Connect Couplers |
| 36947-QC-10 | Low-Viscosity Filtration Cart | 220 V, 50 Hz | 10' | 3/4" ISO B Quick Connect Couplers |
| 36947-W-10 | Low-Viscosity Filtration Cart | 220 V, 50 Hz | 10' | 3-foot Wands |
-
Pump TypeIndustrial Grade Gear Pump
-
Maximum Flow Rate7.25 GPM (P/N 36946)
6.0 GPM (P/N 36947) -
Electric Motor1-1/2 HP @ 1750 RPM (P/N 36946)
1-1/2 HP @ 1425 RPM (P/N 36947) -
Maximum Inlet Vacuum8″ of Mercury
-
Hose Sizing1″ Suction and Discharge Line @ 6′ or 10′ Long
-
Maximum Operating Temperature200ºF (93ºC)
-
Pump Relief105 PSI
-
Maximum Viscosity540 cSt @ 40ºC / 2,500 SUS
-
Seal and Gasket MaterialViton®
-
Electric Motor Rating120 V, 60 Hz (P/N 36946)
220 V, 50 Hz (P/N 36947) -
Maximum Filter Operating Pressure120 PSI
-
Weight130 lbs
-
Dimensions20.46"W x 18.18"D x 45.42"H
Precision Monitoring for Timely Filtration
Enhancing Filter Cart Efficiency
Incorporating Machine VitalsTM, part of the Sensei® IIoT Network, with your Filter Carts offers a transformative approach to monitoring and maintaining fluid cleanliness. By tracking changes in key parameters such as relative humidity, temperature, and pressure, Machine Vitals provides precise indicators of when your equipment requires filtering. This not only ensures that filtration is performed at the most opportune moments but also maximizes the efficiency and lifespan of both the Filter Carts and the equipment they serve. As a result, you achieve a more proactive maintenance strategy, optimizing operational performance and preventing unscheduled downtime.
