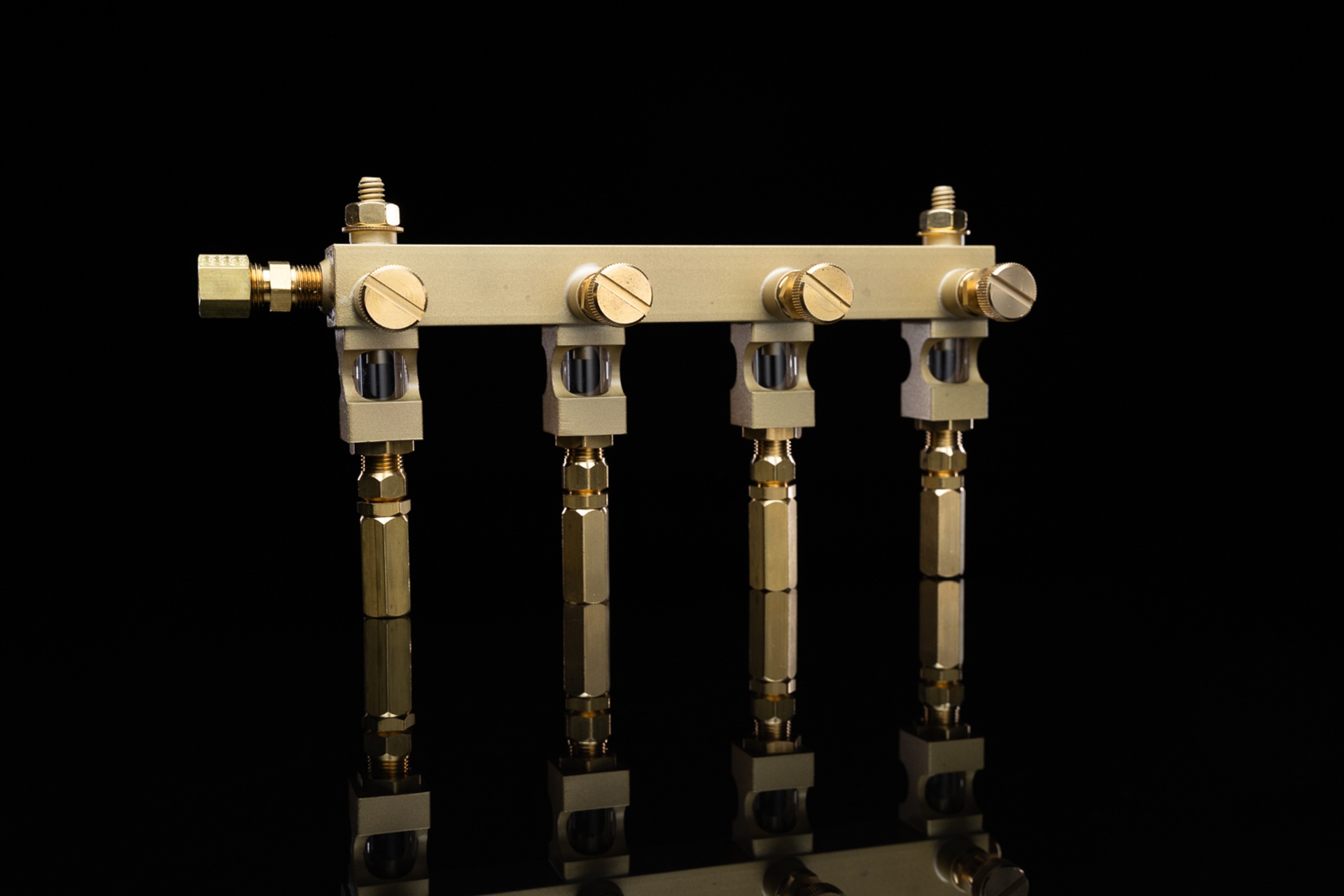

VM Manifolds
VM Series Manifolds are used with Type D Dispensers or Type DE Dispensers and allow Even-Flo or Ever-Last 2" brush applicators to be mounted directly to them. With adjustable adapters and integral needle valves, these manifolds allow easy setting at the point of lubrication.
Additional Features
- Versatile
VM Series Valves have 1 to 6 outlets, in glass or acrylic. Hex nut can be lowered as the brushes wear.
- Reliable
Horizontal design of needle valve minimizes contamination at the valve seat.
- Drip Rate View
Heavy wall polycarbonate or heat resistant glass sights allow easy setting of the desired drip rate.
- Durable
Silver brazing of all brass construction provides long life and leak proof design. Clear lacquer finish of brass components resists corrosion.
Other Specs
| Model | Description | No. of Valves | Sight | A Dimensions (in) |
|---|---|---|---|---|
| 35581 | VM Manifolds | 1 | Glass | - |
| 35582 | VM Manifolds | 2 | Glass | - |
| 35584 | VM Manifolds | 4 | Glass | 6 |
| 35586 | VM Manifolds | 6 | Glass | 10 |
| 35591 | VM Manifolds | 1 | Acrylic | - |
| 35592 | VM Manifolds | 2 | Acrylic | - |
| 35594 | VM Manifolds | 4 | Acrylic | 6 |
| 35596 | VM Manifolds | 6 | Acrylic | 10 |
Description
No. of Valves
Sight
A Dimensions (in)
Description
No. of Valves
Sight
A Dimensions (in)
Description
No. of Valves
Sight
A Dimensions (in)
Description
No. of Valves
Sight
A Dimensions (in)
Description
No. of Valves
Sight
A Dimensions (in)
Description
No. of Valves
Sight
A Dimensions (in)
Description
No. of Valves
Sight
A Dimensions (in)
Description
No. of Valves
Sight
A Dimensions (in)
-
Max. Operating Temp.Glass 250ºF Continuous
Acrylic 165ºF Continuous -
Oil SightHeavy Wall Heat Resistant Glass
Heavy Wall Acrylic Plastic -
GasketBuna-N
-
Packing GlandGraphite
-
MaterialBrass
-
FinishLacquered Satin Finish
-
Needle ValveBrass
-
Tube Connection1/4″ OD Compression Fitting
