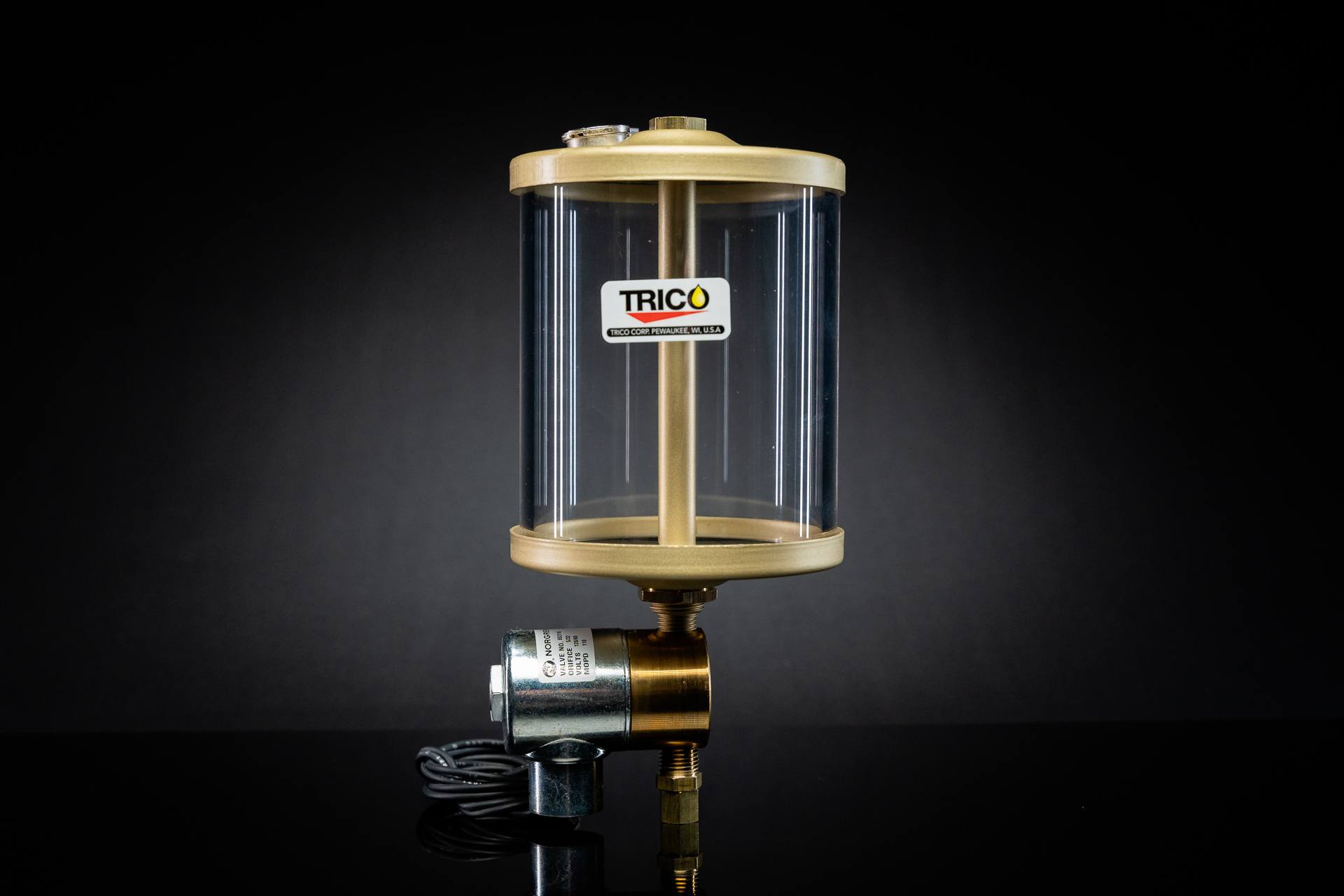

Type DE Dispensers
Type DE Dispensers are used to lubricate bearings, chains, and other machinery parts when remote valves or manifolds are used. They are solenoid controlled to be wired to the machine or other timing device (PLC). These reservoirs are designed as a "full flow on" / "full flow off" dispensers, allowing the flow adjustment to be controlled at the valves or manifolds.
Feature
Solenoid Controlled
The solenoid produces the open/closed function by wiring it to the machine's power supply or other timing device. It eliminates the need for manual on/off toggle switch.
Additional Features
- Simple Mounting
Mounting stud simplifies installation to customer supplied bracket.
- Dependable Design
Silver brazing of all brass construction provides long life and leak proof design.
- Durable
Clear lacquer finish of brass components resists corrosion
- Easy Connection to Manifolds
1/4 tube connector outlet furnished
- Acrylic or Glass Reservoir
Acrylic reservoir versions have heavy walls for long life in applications to 165º F. Heavy wall heat resistant glass reservoirs and sights providing service in temperatures to 250º F.
- Remote Mounting
Remote mounting the reservoir allows for easy fill access when the valve or manifold is located in a difficult to reach spot.
Other Specs
| Model | Description | Capacity | Reservoir | Mounting Stud | Dim A (in) | Dim B (in) |
|---|---|---|---|---|---|---|
| 35572-B | DE Dispenser | 1 pt | Glass | 3/4-16 | 3-5/8 | 5-3/16 |
| 35573-B | DE Dispenser | 1 pt | Acrylic | 3/4-16 | 3-5/8 | 5-3/16 |
| 35574-B | DE Dispenser | 1 qt | Glass | 3/4-16 | 4-7/16 | 6-3/16 |
| 35575-B | DE Dispenser | 1 qt | Acrylic | 3/4-16 | 4-7/16 | 6-3/16 |
| 35576-B | DE Dispenser | 2.5 qt | Glass | 3/4-16 | 5-11/16 | 8-5/16 |
| 35577-B | DE Dispenser | 2.5 qt | Acrylic | 3/4-16 | 5-11/16 | 8-5/16 |
| 35579-B | DE Dispenser | 1 gal. | Acrylic | 3/4-16 | 5-11/16 | 13-5/16 |
Description
Capacity
Reservoir
Mounting Stud
Dim A (in)
Dim B (in)
Description
Capacity
Reservoir
Mounting Stud
Dim A (in)
Dim B (in)
Description
Capacity
Reservoir
Mounting Stud
Dim A (in)
Dim B (in)
Description
Capacity
Reservoir
Mounting Stud
Dim A (in)
Dim B (in)
Description
Capacity
Reservoir
Mounting Stud
Dim A (in)
Dim B (in)
Description
Capacity
Reservoir
Mounting Stud
Dim A (in)
Dim B (in)
Description
Capacity
Reservoir
Mounting Stud
Dim A (in)
Dim B (in)
-
Max. Operating Temp.Glass 250ºF Continuous
Acrylic 165ºF Continuous -
ReservoirHeavy Wall Heat Resistant Glass
Heavy Wall Acrylic Plastic -
GasketBuna-N
-
MaterialBrass
-
FinishLacquered Satin Finish
-
SolenoidStainless Steel Plunger and Brass Body UL/CSA Listed
-
Solenoid Voltage120V 60 Hz
-
Needle ValveBrass
