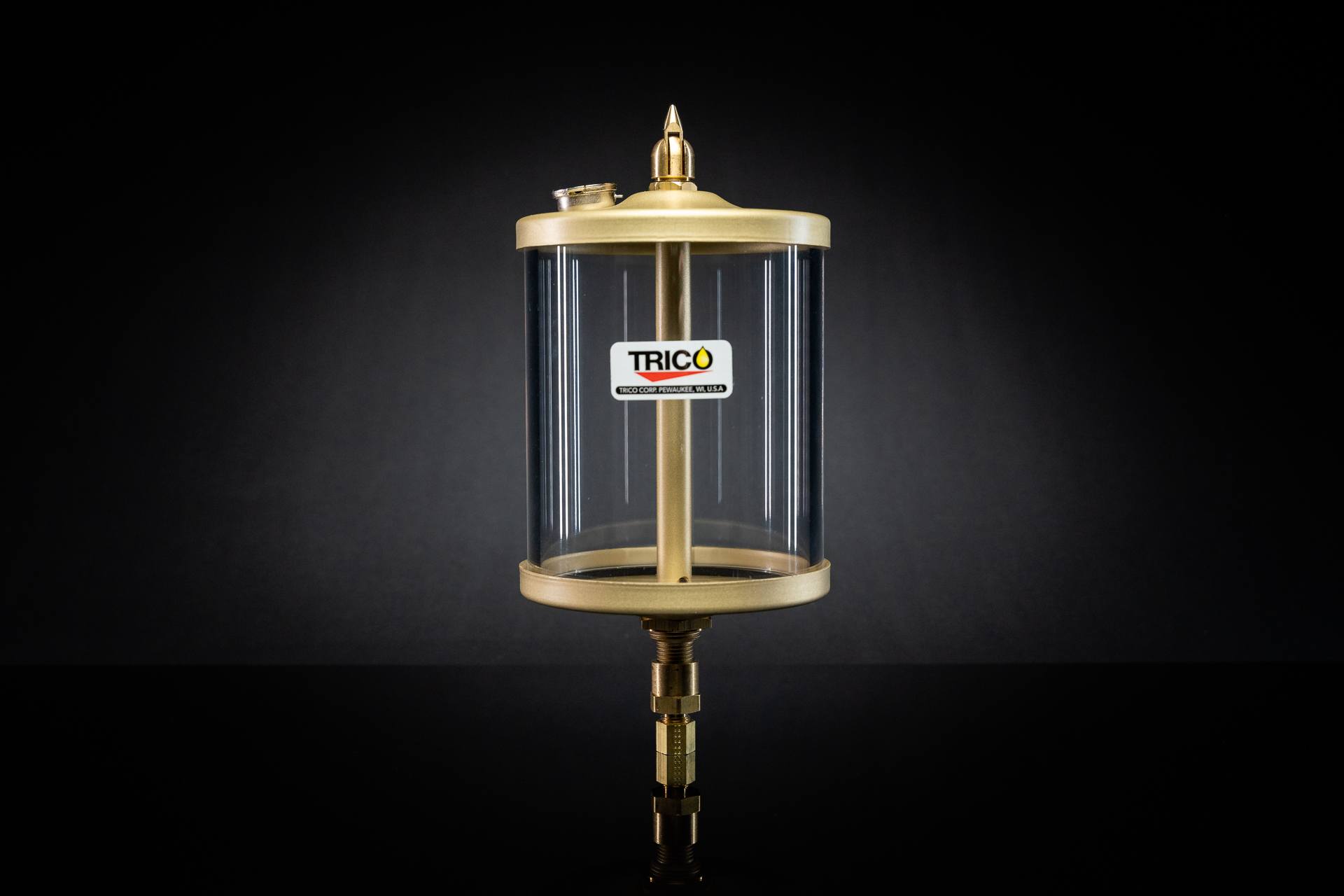

Type D Dispensers

Type D Dispensers are used to lubricate bearings, chains, and other machinery parts when remote valves or manifolds are used. These reservoirs are designed as a "full flow on" / "full flow off" dispensers, allowing the flow adjustment to be controlled at the valves or manifolds. Remote mounting the reservoir allows for easy fill access when the valve or manifold is located in a difficult to reach spot.

Contact Us to Purchase

Feature

Toggle Shut-off

The toggle shut off provides a simple open/closed manual control.

Additional Features

Simple Mounting

Mounting stud simplifies installation to customer-supplied bracket.

Dependable Design

Silver brazing of all brass construction provides for long life and leakproof design.

Durable

Clear lacquer finish of brass components resists corrosion.

Easy Connection

1/4 tube connector outlet furnished

Heavy Wall Reservoir

Acrylic reservoir versions have heavy walls for long life in applications to 165º F. Heavy wall heat-resistant glass reservoirs and sights providing service in temperatures to 250º F.

Other Specs

Model Description Capacity Reservoir Mounting Stud Dim A (in) Dim B (in)
35562 D Dispenser 1 pt Glass 3/4-16 3-5/8 6-3/16
35563 D Dispenser 1 pt Acrylic 3/4-16 3-5/8 6-3/16
35564 D Dispenser 1 qt Glass 3/4-16 4-7/16 7-3/16
35565 D Dispenser 1 qt Acrylic 3/4-16 4-7/16 7-3/16
35566 D Dispenser 2.5 qt Glass 3/4-16 5-11/16 9-5/16
35567 D Dispenser 2.5 qt Acrylic 3/4-16 5-11/16 9-5/16
35569 D Dispenser 1 gal. Acrylic 3/4-16 5-11/16 14-5/16
