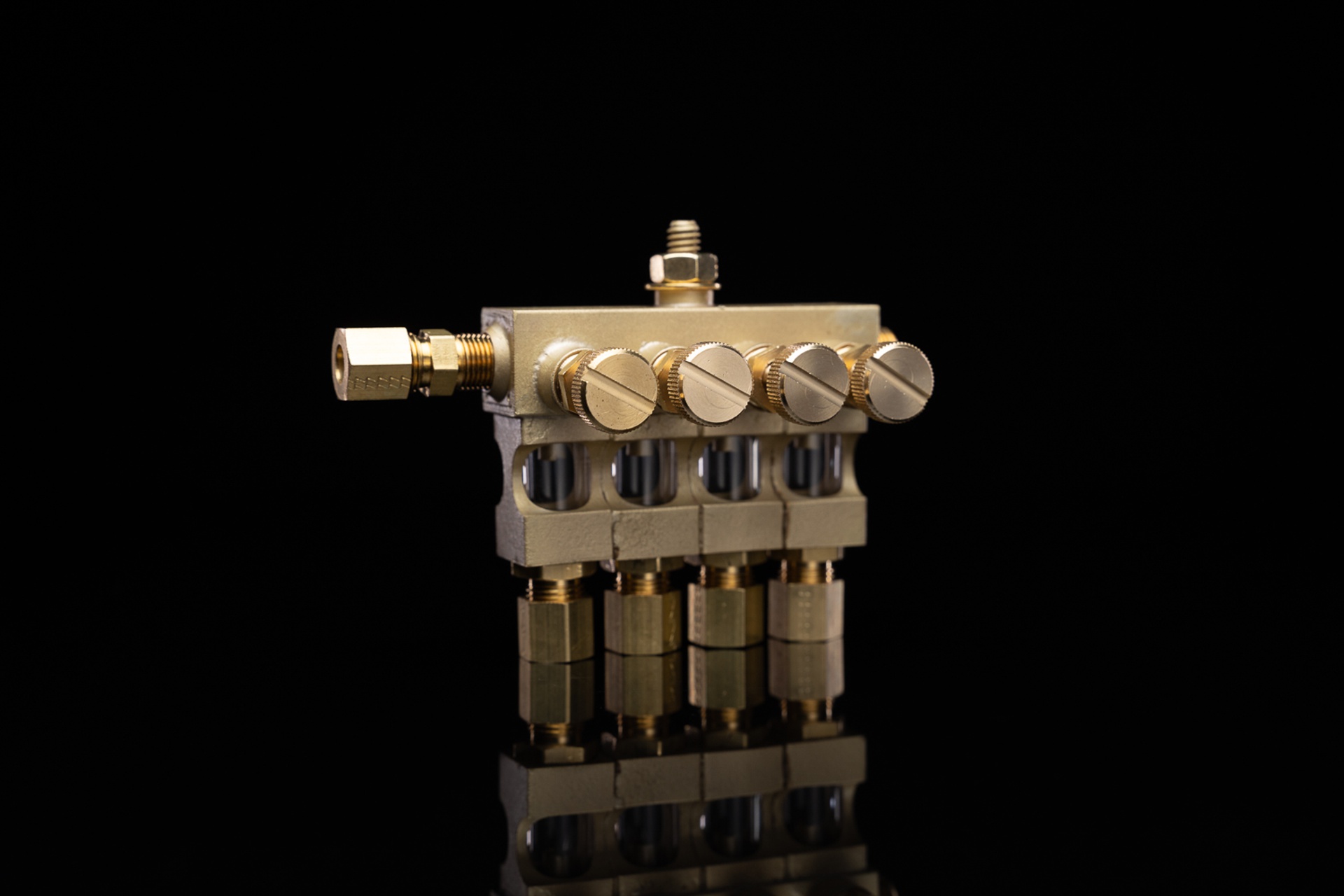

V Series Valves

V Series Valves are used with Type D Dispensers or Type DE Dispensers where feed rate adjustment is desired at the point of lubrication.

Additional Features

Versatile: V Series Valves have 1 to 6 outlets, in glass or acrylic.
Reliable: Horizontal design of needle valve minimizes contamination at the valve seat.
Drip Rate View: Heavy wall polycarbonate or heat resistant glass sights allow easy setting of the desired drip rate.
Durable: Silver brazing of all brass construction provides long life and leak proof design. Clear lacquer finish of brass components resists corrosion.

Model	Description	No. of Valve Outlets	Sight	A Dimensions (in)	B Dimensions (in)	C Dimensions (in)
30171	V Series	1	Glass	2	5/8	-
30172	V Series	2	Glass	2-11/16	31/32	-
30174	V Series	4	Glass	4-1/16	1-21/32	-
30176	V Series	6	Glass	5-7/16	5/8	3-7/16
30271	V Series	1	Acrylic	2	5/8	-
30272	V Series	2	Acrylic	2-11/16	31/32	-
30274	V Series	4	Acrylic	4-1/16	1-21/32	-
30276	V Series	6	Acrylic	5-7/16	5/8	3-7/16
