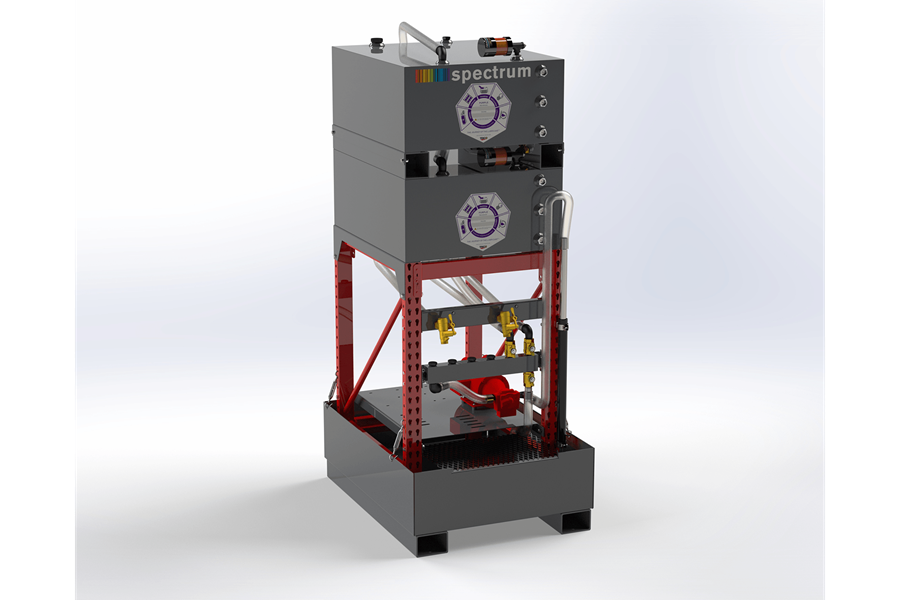

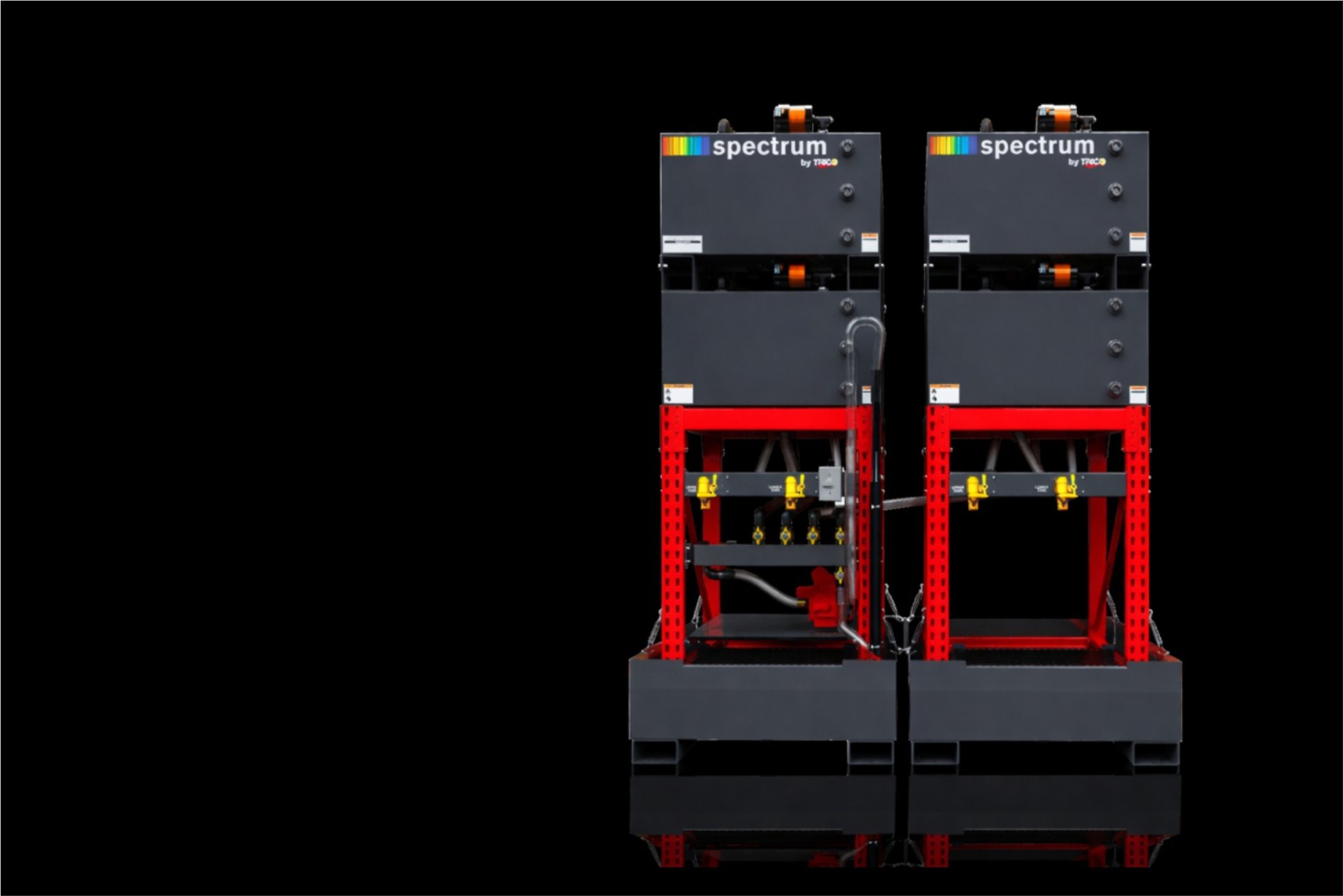

Spectrum Bulk Oil Storage System - Essential Stack
The Essential Stack provides a budget-friendly and space-saving solution. It's designed to easily and effectively identify, handle, store, and dispense lubricants and is an economical way to save space on a plant floor, while keeping lubricants organized and contaminant free. The 65-gallon tank capacity eliminates the cost of wasted space, time, labor, and unnecessary equipment purchases required when using 55-gallon drums.
Feature
Manifold
Allows for easy expansion with up to two Storage Stacks per each Pump Stack for a maximum of six tanks per Essential Stack System
Feature

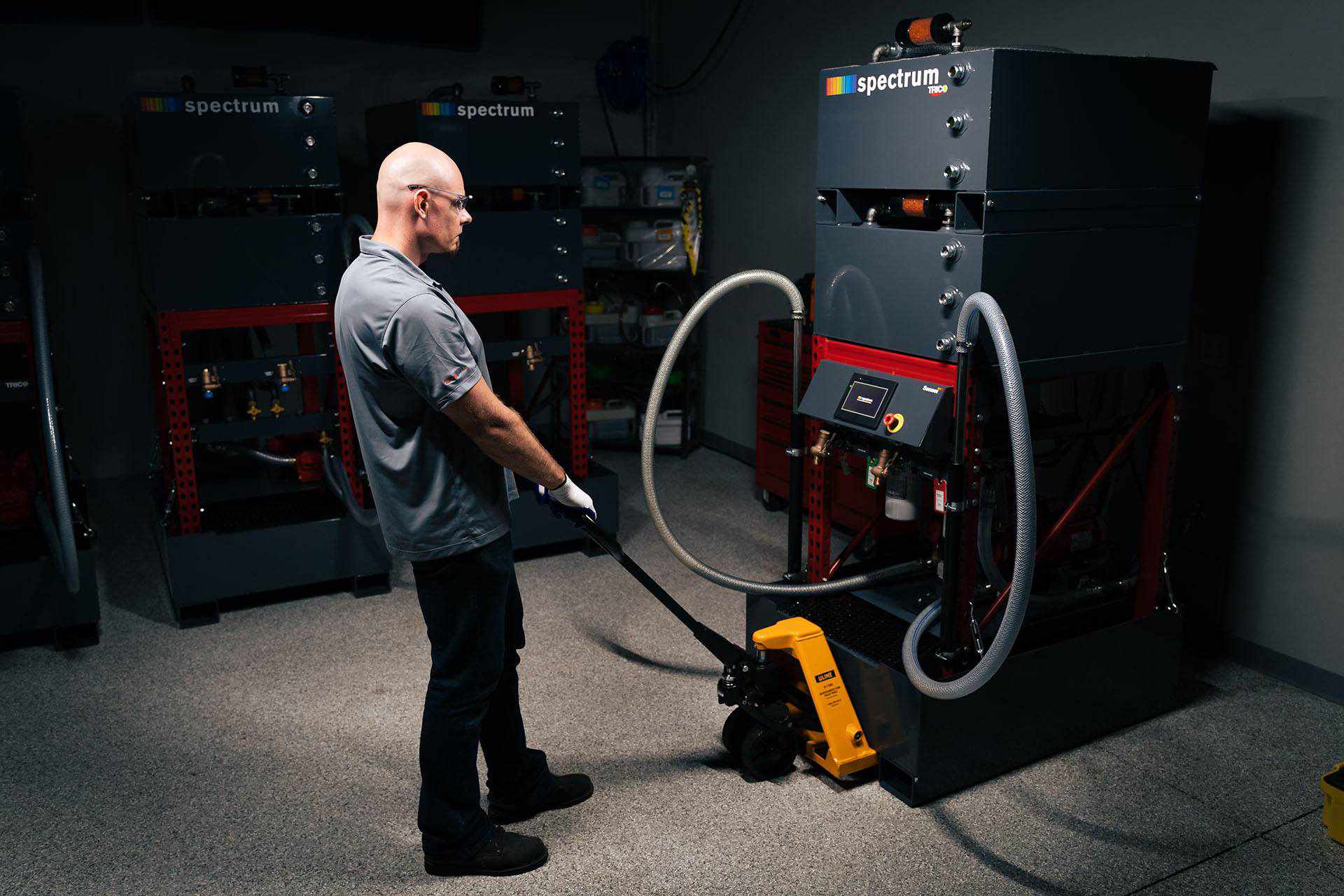

Integrated Forklift Pockets
Comes with built-in lift points for easy forklift and hand pallet transportation
Special Feature

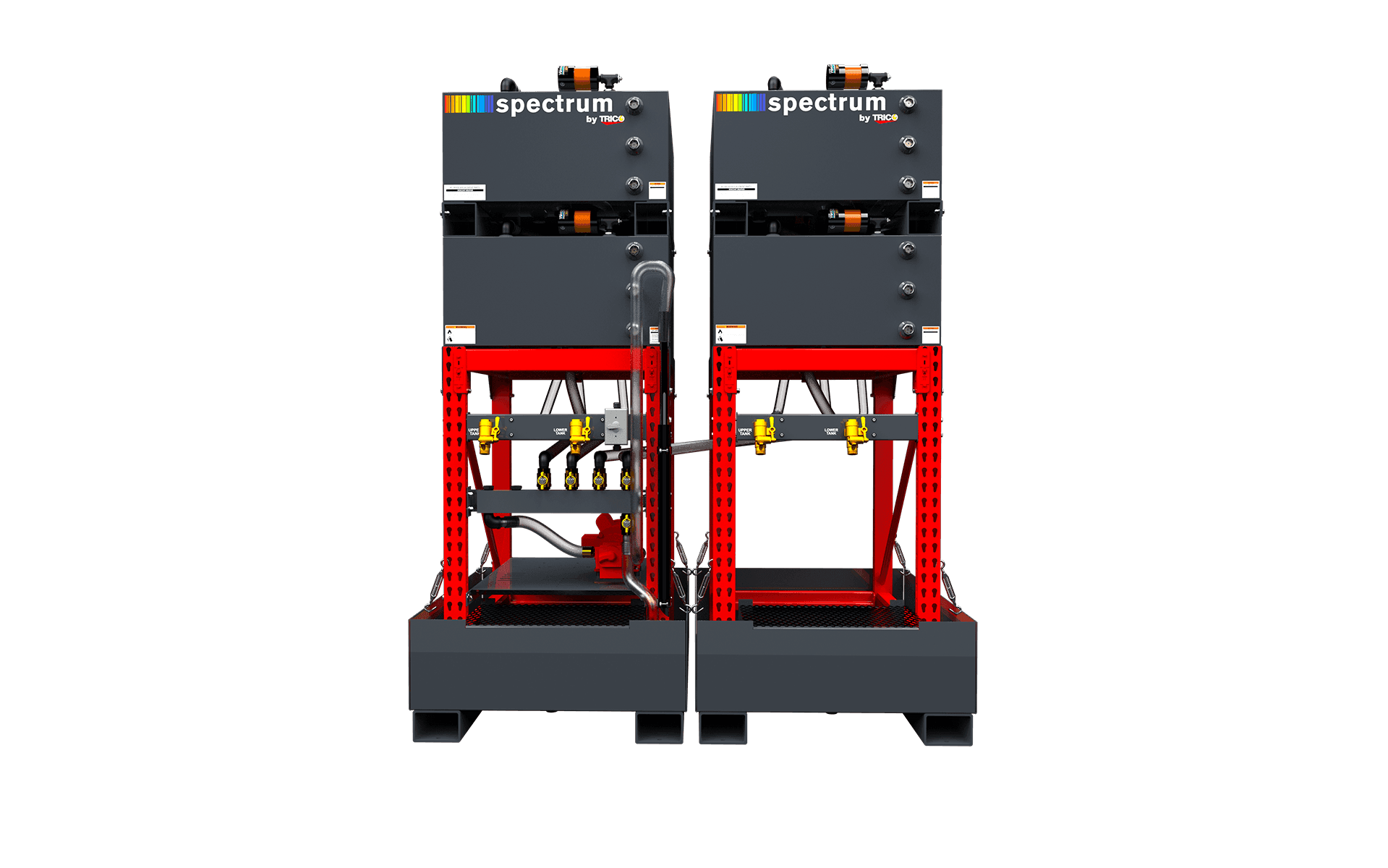

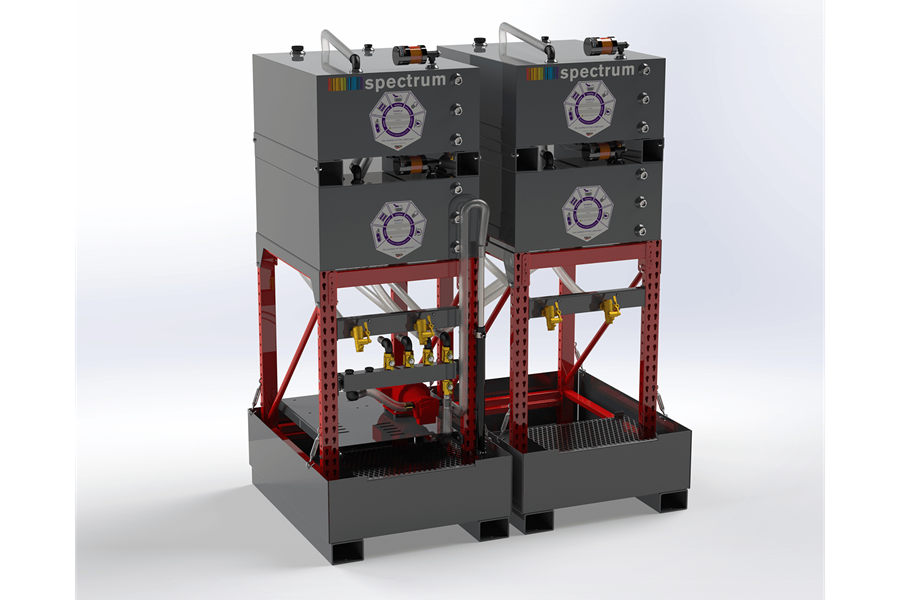

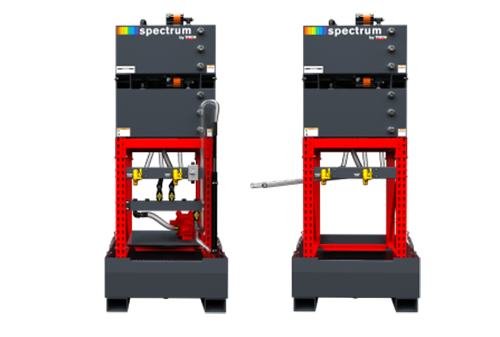

Essential Stack System Configuration

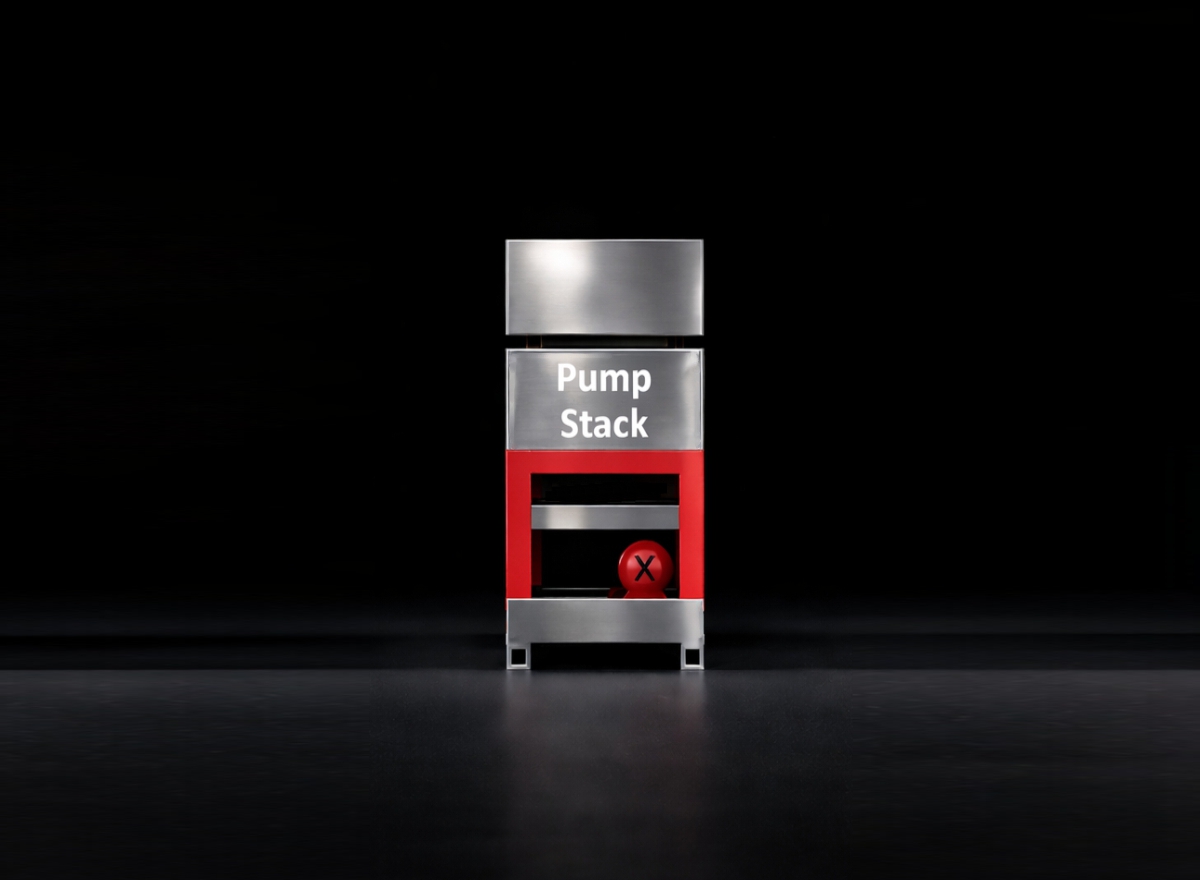

Pump Stack
The Pump Stack is the base unit of the Essential System incorporating a manifold for system expansion with the additional Storage Stack.
Storage Stack

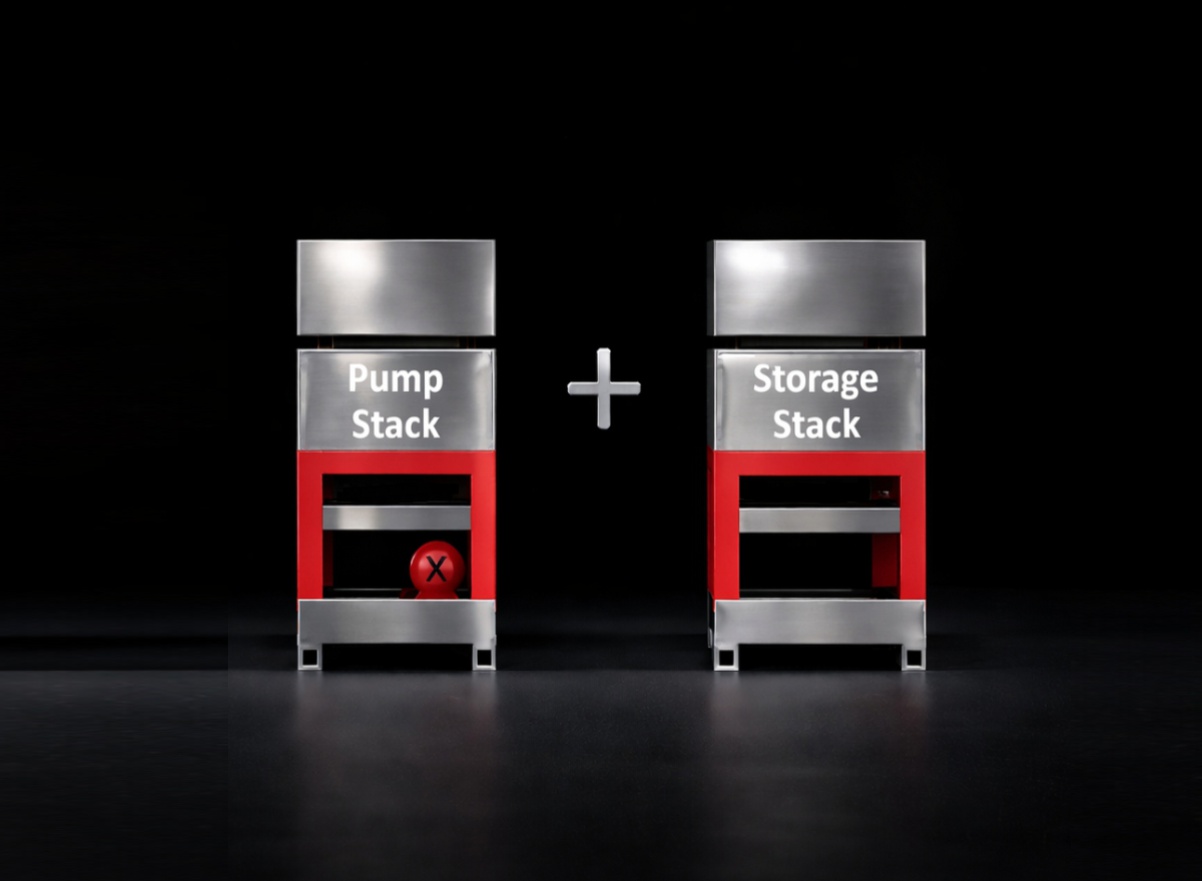

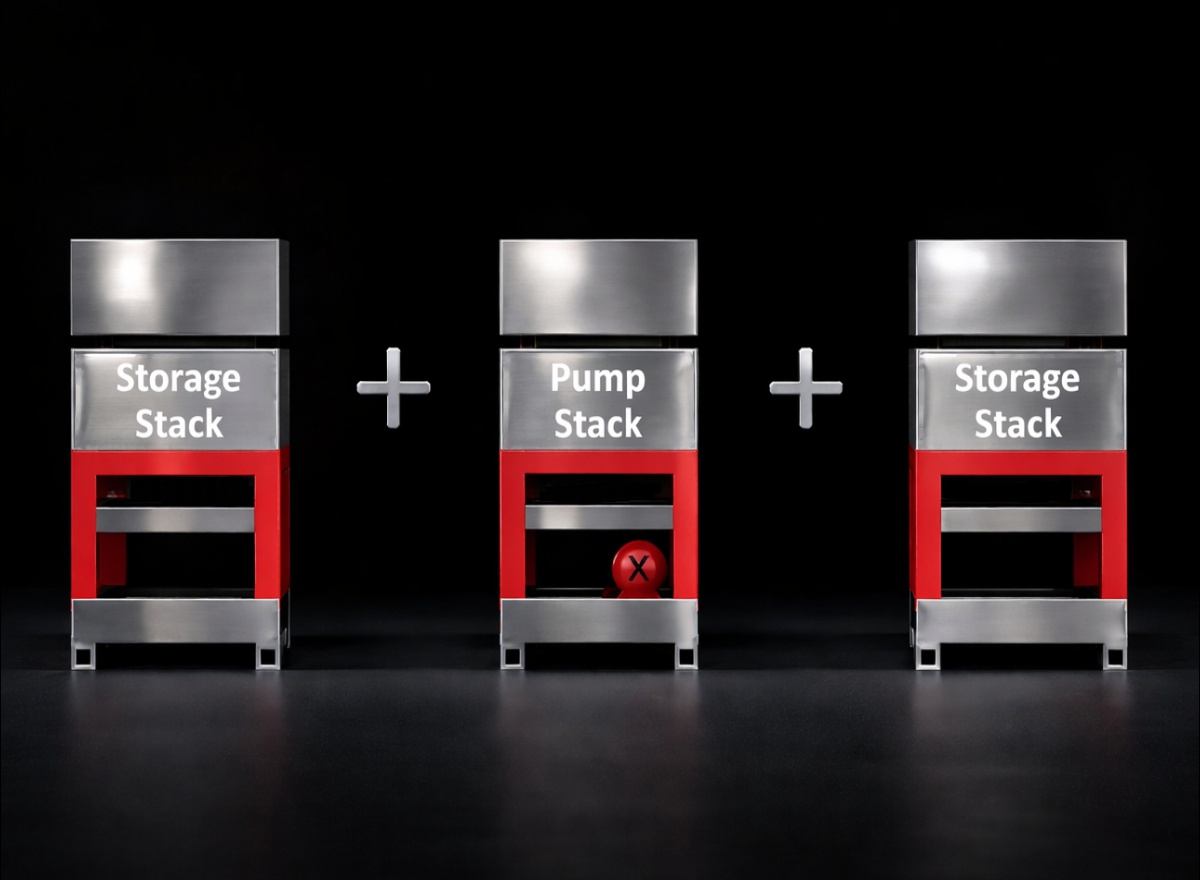

The Storage Stack is the complementary unit for the Essential System and is designed to be an add-on to the Pump Stack adding one or two of these Storage Stacks to the Pump Stack will result in a four or six tank system which can be added at the time of purchase or at any point in the future.
Feature

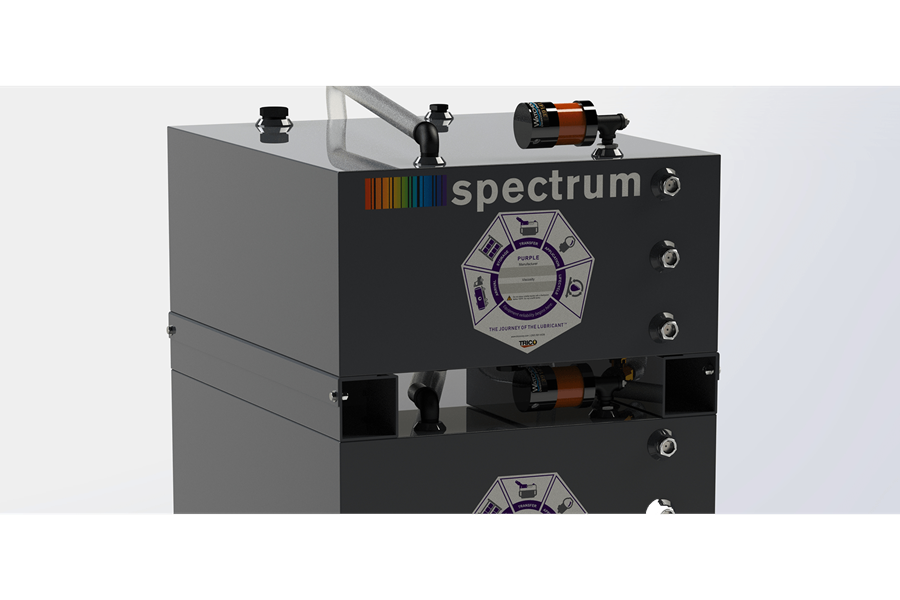

Color-Coded Organization
Eliminate the potential for mess and mishandling by keeping each fluid clearly identified with Trico's color-coded tags and labels, part of the Spectrum Visual Lubrication Management line of products. Each label features a space to identify the specific substance contained within each tank, ensuring the right lubricant is delivered to the right equipment every time. System comes with a set of 10 color labels and tags to clearly mark tanks and valves with oil type to ensure the right product is being used at the right application.
Additional Features

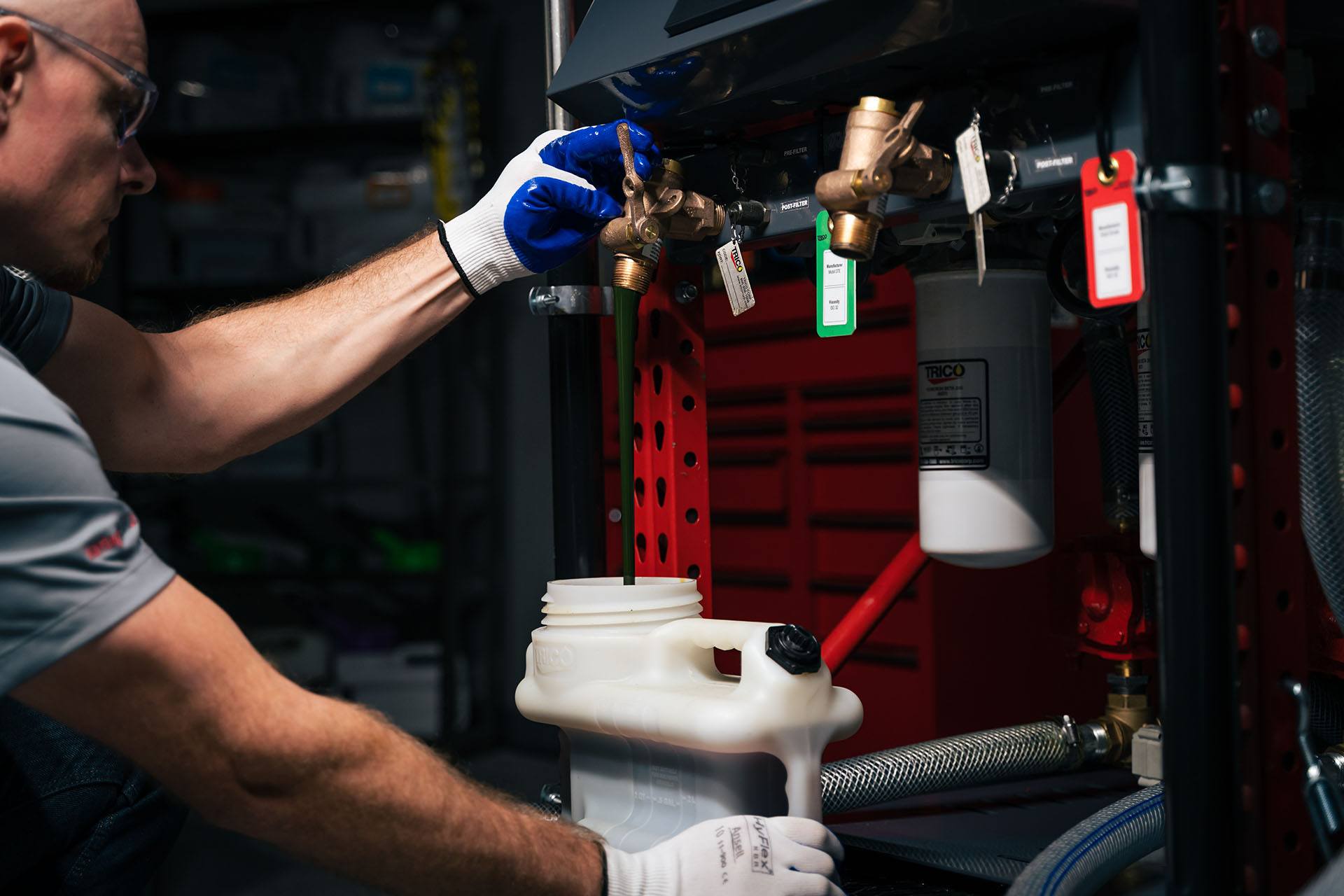

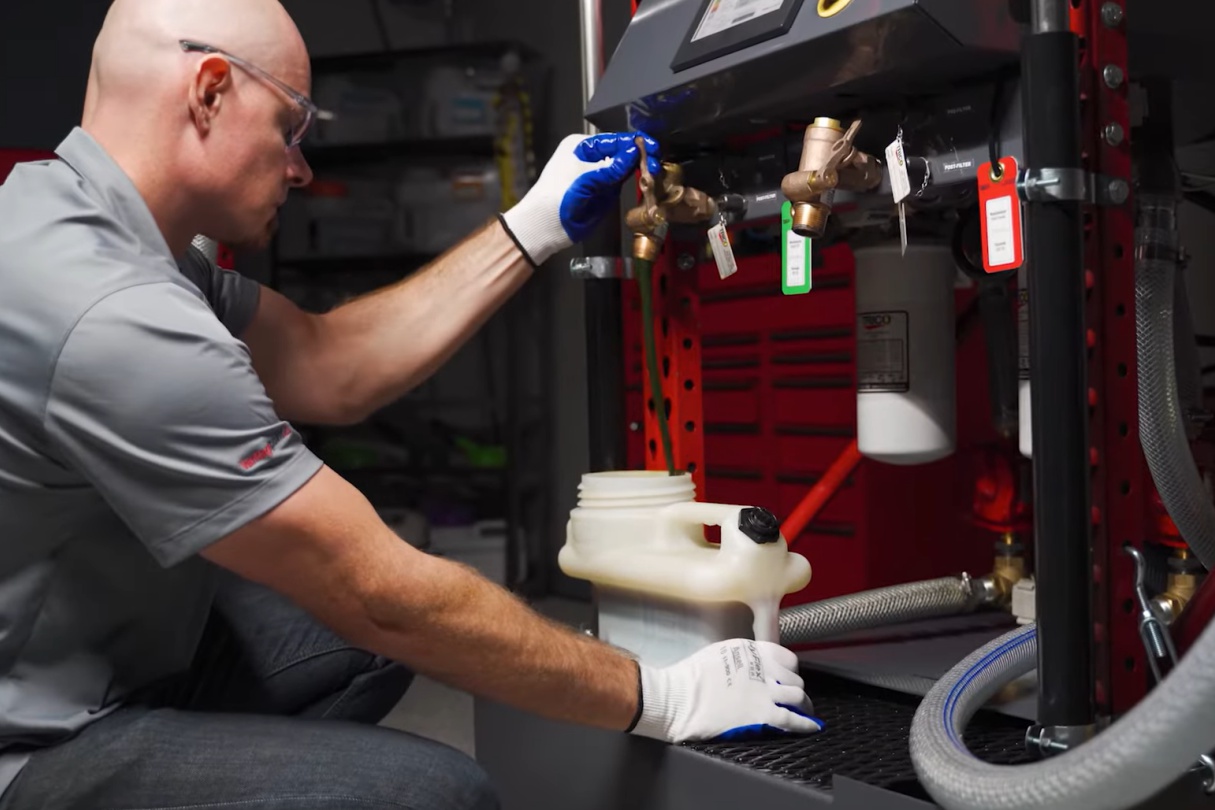

- Self-Closing Brass Dispensing Valves
These heavy-duty self-closing valves make dispensing oil quick, easy, and spill-free. The valves include 3/4" NPT threaded openings.
- 65 Gallon Tanks
10 gallons of additional capacity allows you to pump all product out of a 55-gallon drum and into the Spectrum Bulk Oil Storage tank.
- Expandable System

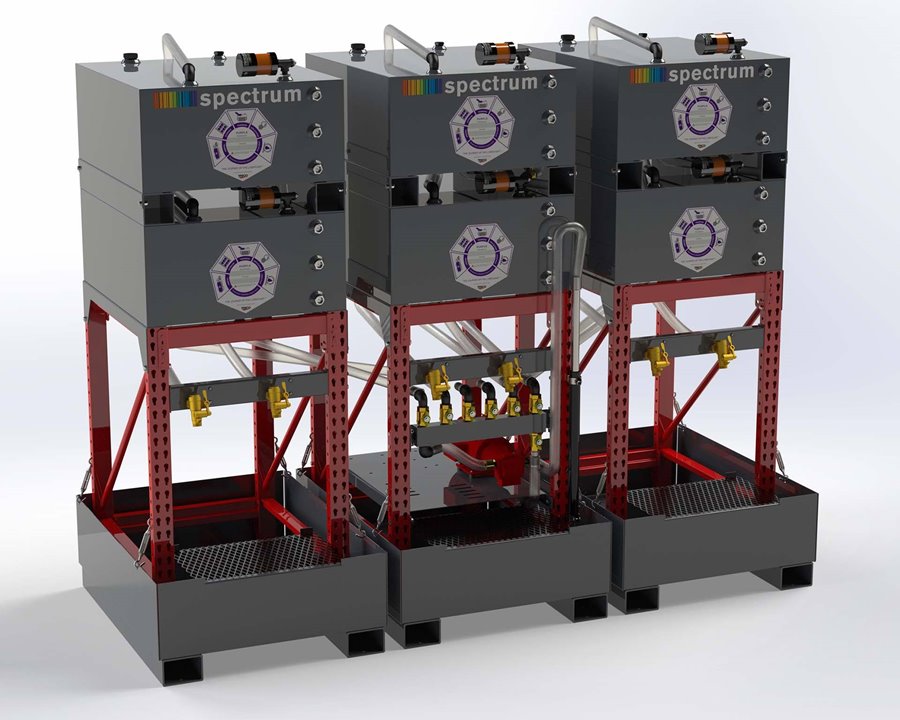

Easily add extra stacks to an existing system with the Storage Stack (P/N 37202) for a maximum of six tanks per Essential Stack system.
- Heavy Gauge Racking
The heavy gauge racking supports tanks when completely filled with lubricant.
- Spill Containment and Dispensing Area
Heavy duty steel constructed and built to exceed regulations of 110% capacity
- Desiccant Breathers
Prevent moisture and particulate contamination from entering tanks
- Sight Ports
Provides quick easy indication of oil level
- Shut-Off Ball Valves
Each tank is equipped with its own valve to shut-off the oil flow.
- Stainless Steel Wands
These heavy-duty stainless-steel wands are corrosion resistant to provide long life and are used to fill tanks (excluded on the expansion Storage Stack).
- Pump Control Switch
Customer-mounted on/off switch to control the operation of the pump
- Bronze Gear Pump
Self-priming pump saves time
- Pressure Relief Valve
Prevents over pressurizing and damage to tanks
Other Specs
| Model | Description | Pump Motor | Depth | Width | Height |
|---|---|---|---|---|---|
| 37200 | Pump Stack (base stack required to build Essential Stack System) | 120V 20 AMP | 46" | 36" | 88" |
| 37202 | Storage Stack (use to add additional stacks to Essential Stack System up to 6 tanks per system) | N/A | 46" | 36" | 88" |
| 37245 | Pump Stack (base stack required to build Essential Stack System) | Pneumatic | 46" | 36" | 88" |
| 37257 | Pump Stack (base stack required to build Essential Stack System) | 50 Hz | 46" | 36" | 88" |
-
Tank Size65 Gallons
-
Tank MaterialPowder Coated Steel
-
Frame MaterialPowder Coated Steel
-
Oil Level IndicationsViewports
-
Oil Type IndicatorColor-Coded Labels and Tags
-
FiltrationNo
-
FilterNone
-
Electric MotorPump Stack: 1.5 HP @ 1750 RPM
Storage Stack: None -
Pneumatic MotorPump Stack: 4 HP @ Max 3000 RPM
Storage Stack: None -
Pump TypePump Stack: 1 – Industrial Grade Gear Pump
Storage Stack: None -
Desiccant Breather2 – Dedicated Breather for Each Tank
-
WandPump Stack: 1 – 1″ ID Stainless Steel Wand
Storage Stack: None -
Hoses1-1/4″ ID Heavy Wall Wire PVC
-
Spill ContainmentYes – 73 Gallons (OSHA Compliant)
-
Dispensing ValvesSelf-Closing Bronze Valves
-
Emergency StopNo
-
Power DispenseNo
-
Filter Life IndicatorN/A
-
Sampling PortsNone
-
Maximum ViscosityISO 680 at room temperature (70ºF)
-
PowerPump Stack: 120V 20 AMP (50 Hz option available)
Storage Stack: N/A -
Maximum Temperature150ºF (65ºC)
-
Rack Capacity2500 lbs
-
Overall Size88″H x 36″W x 46″D
-
Dry WeightPump Stack: 800 lbs
Storage Stack: 700 lbs -
Shipping Skid Size41″ x 58″
-
Wetted Parts Material CompositionSteel – Stainless, Galvanized & Zinc; Viton; Buna; Brass; Bronze; Iron – Galvanized & Black Coated; PVC; Aluminum
-
WarningFor use with only petroleum-based fluids. Do not use with solvents or fuels.
