PE-40 Series

The PE-40 Series Continuous Pumps are designed for applications where lubrication of critical components is needed on a continual basis, rather than on a timed basis. Using control units, these pumps provide lubricant at flow rates of 250 cc/min. Common applications include injection molding, printing presses, punch presses, and milling machines.

Additional Features

Low Level Indication: Standard float switch provides signal when lubricant level is low
Durable Reservoirs: Easy view plastic reservoir on 3-liter models, steel reservoir with sight gauge on 6-, 8-, and 20-liter reservoirs
Return to Tank Port: Return to tank port available on 6-, 8-, and 20-liter models for returning unused oil to reservoir
Pressure Gauge: Pressure gauge provides real time monitoring of the system lubricant delivery
Safety Relief Valve: Safety relief valve assures reliable performance
System Protection: Pressure switch, with reset button, shuts down pump if system pressure drops below set level, protecting against line or component failure
Easy Filling: Large fill plug simplifies adding or changing lubricant
Oil Filter: Convenient drop-in filter in fill port keeps oil clean

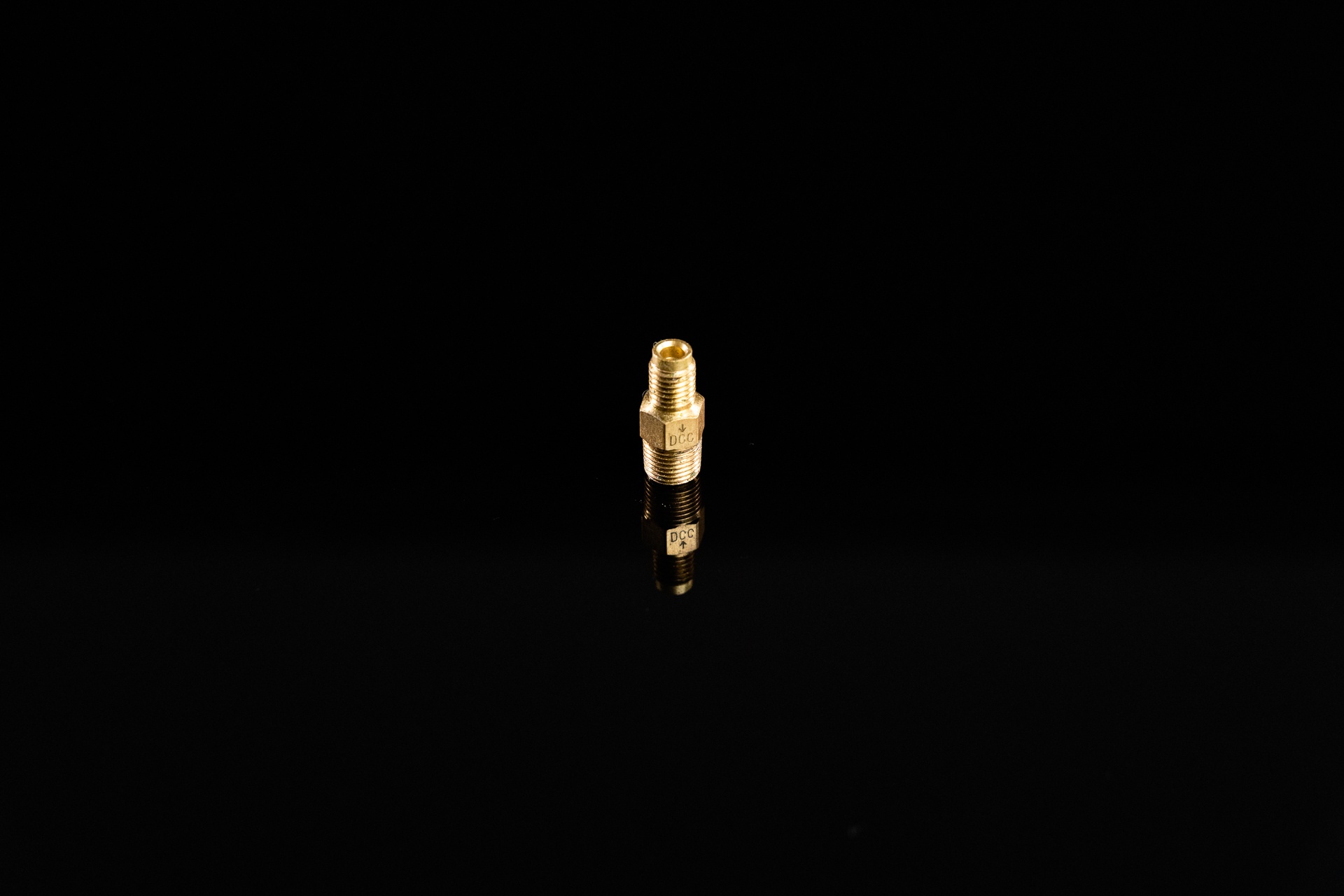

Accessories: These pumps use control units in single or multiple point applications. Control units, fittings, and accessories are available to create a central lubrication system.

Other Specs

Model	Description	Style	Reservoir Capacity (liters)	Reservoir Material	Pressure Switch	Output Volume (cc/min)
PE-4003	Continuous Pump	Without Return to Tank Port	3	Plastic	Yes	250
PE-4006	Continuous Pump	Without Return to Tank Port	6	Metal	Yes	250
PE-4008	Continuous Pump	Without Return to Tank Port	8	Metal	Yes	250
PE-4020	Continuous Pump	Without Return to Tank Port	20	Metal	Yes	250
PE-4206	Continuous Pump	With Return to Tank Port	6	Metal	Yes	250
PE-4208	Continuous Pump	With Return to Tank Port	8	Metal	Yes	250
PE-4220	Continuous Pump	With Return to Tank Port	20	Metal	Yes	250

Description

Continuous Pump

Style

Without Return to Tank Port

Reservoir Capacity (liters)

Reservoir Material

Plastic

Pressure Switch

Yes

Output Volume (cc/min)

250

Learn More From Lubricology

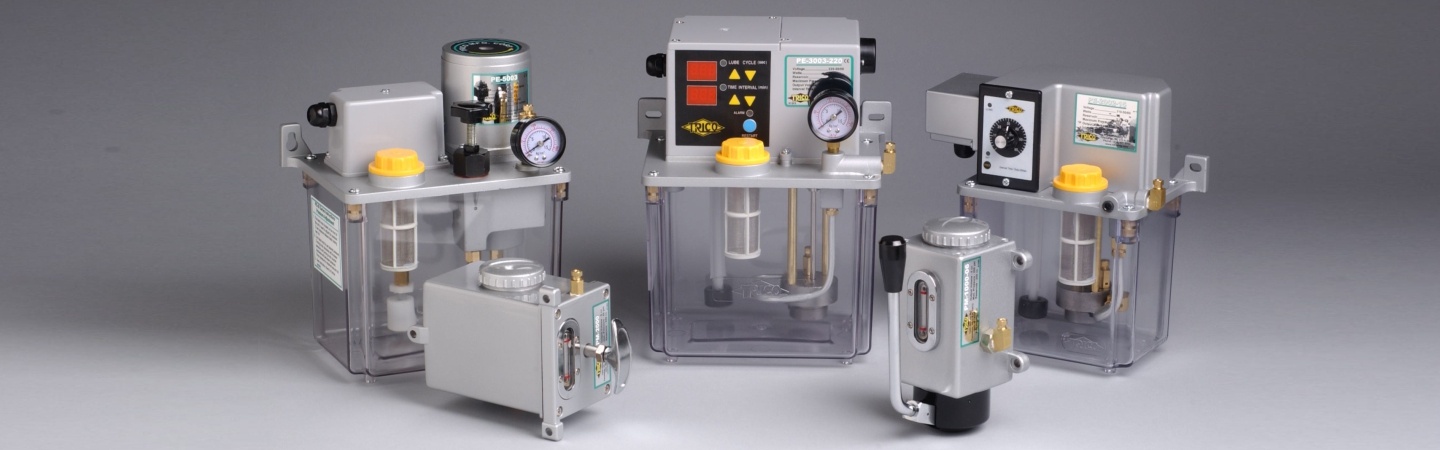

Central Lubrication Overview

Central Lubrication

01.31.2023 Lisa Kiepert

Central Lubrication Overview

Central Lubrication Systems are used in many different types of equipment, offering an array of benefits that can help protect and prolong the life of the equipment’s moving parts.

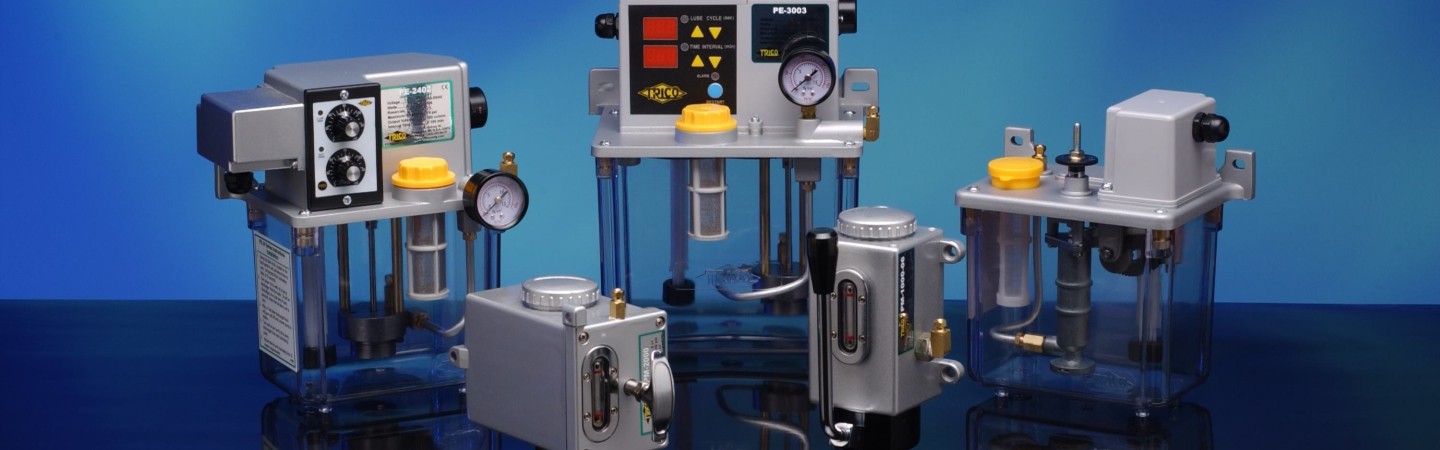

Introducing Central Lubrication
