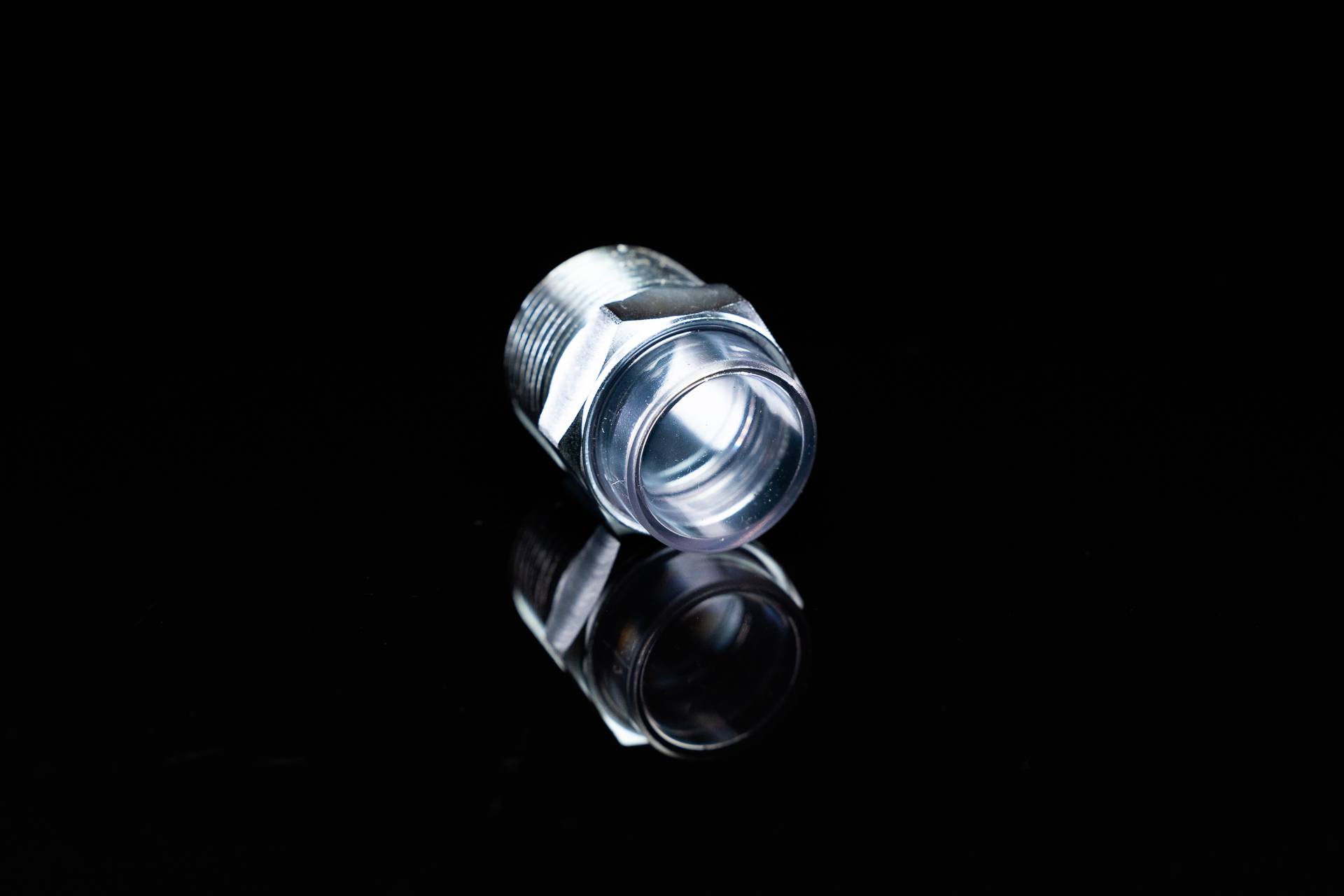

Viewports - 3D Plastic Lens
The 3D Lens Viewports can be used to monitor oil levels within a sump housing and provide visual inspection of lubricant condition.
Contact Us to Purchase
Additional Features
- Multiple Angle Viewing
- A straight protruding lens simplifies liquid viewing and reduces distortion created by dome lenses, especially on small sizes.
- Economical
The lenses can be removed in the field for cleaning, rather than purchasing and installing a new viewport.
- Corrosion Resistance
Viewports are offered in brass or zinc-plated steel bodies.
- Durable Construction
Engineered polymer lens for long life
Other Specs
| Model | Description | Material | Connection | Dim A (in) | Dim B (in) | Dim C (in) |
|---|---|---|---|---|---|---|
| 34199 | Viewport | Steel | 1/2 NPT | 7/8 | 1/2 | 1-17/32 |
| 34201 | Viewport | Steel | 3/4 NPT | 1-1/8 | 3/4 | 1-9/16 |
| 34202 | Viewport | Steel | 1 NPT | 1-5/16 | 1 | 1-11/16 |
| 34230 | Viewport | Brass | 1/2 NPT | 7/8 | 1/2 | 1-17/32 |
| 34231 | Viewport | Brass | 3/4 NPT | 1-1/8 | 3/4 | 1-9/16 |
| 34232 | Viewport | Brass | 1 NPT | 1-5/16 | 1 | 1-11/16 |
Description
Viewport
Material
Steel
Connection
1/2 NPT
Dim A (in)
7/8
Dim B (in)
1/2
Dim C (in)
1-17/32
Description
Viewport
Material
Steel
Connection
3/4 NPT
Dim A (in)
1-1/8
Dim B (in)
3/4
Dim C (in)
1-9/16
Description
Viewport
Material
Steel
Connection
1 NPT
Dim A (in)
1-5/16
Dim B (in)
1
Dim C (in)
1-11/16
Description
Viewport
Material
Brass
Connection
1/2 NPT
Dim A (in)
7/8
Dim B (in)
1/2
Dim C (in)
1-17/32
Description
Viewport
Material
Brass
Connection
3/4 NPT
Dim A (in)
1-1/8
Dim B (in)
3/4
Dim C (in)
1-9/16
Description
Viewport
Material
Brass
Connection
1 NPT
Dim A (in)
1-5/16
Dim B (in)
1
Dim C (in)
1-11/16
-
Body MaterialZinc Plated Steel/Brass
-
Window MaterialPolysulfone
-
Maximum Operating Temperature300ºF (149ºC)
-
Maximum Pressure50 PSI
-
Seal MaterialViton®
