Streamliner M EXPL Grease Dispenser

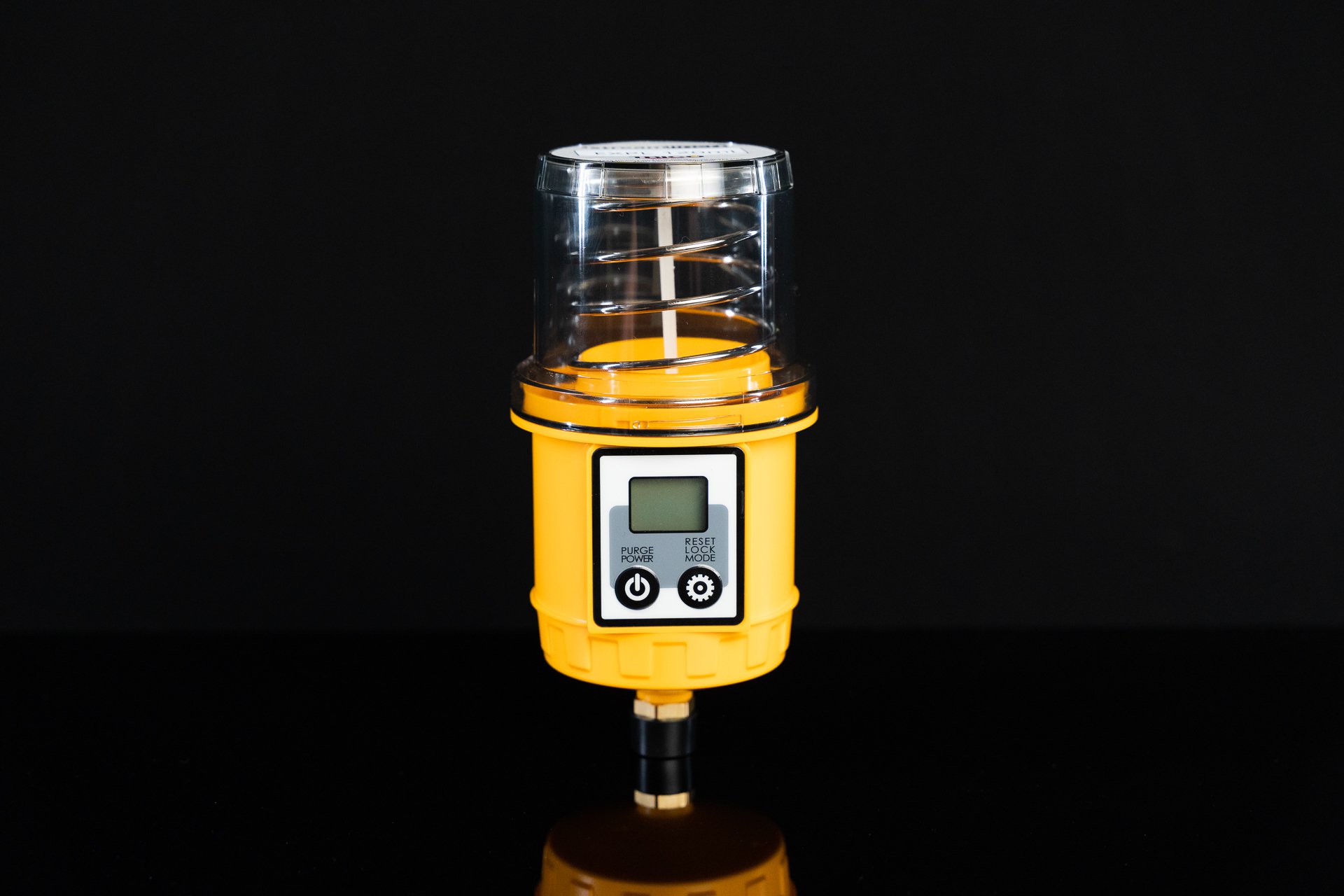

The Streamliner M EXPL is an electro-mechanical automatic grease dispenser specifically designed for hazardous environments with explosive gases or dust. It ensures reliable and precise lubrication through its vertical feed pump, motor, gear set, and microprocessor control system. With an impressive operating pressure of 870 psi, it supports multi-point applications effectively.
Contact Us to Purchase
Feature
Multi-Point Capability
Feature
Refillable
Special Feature
Intuitive LCD Display

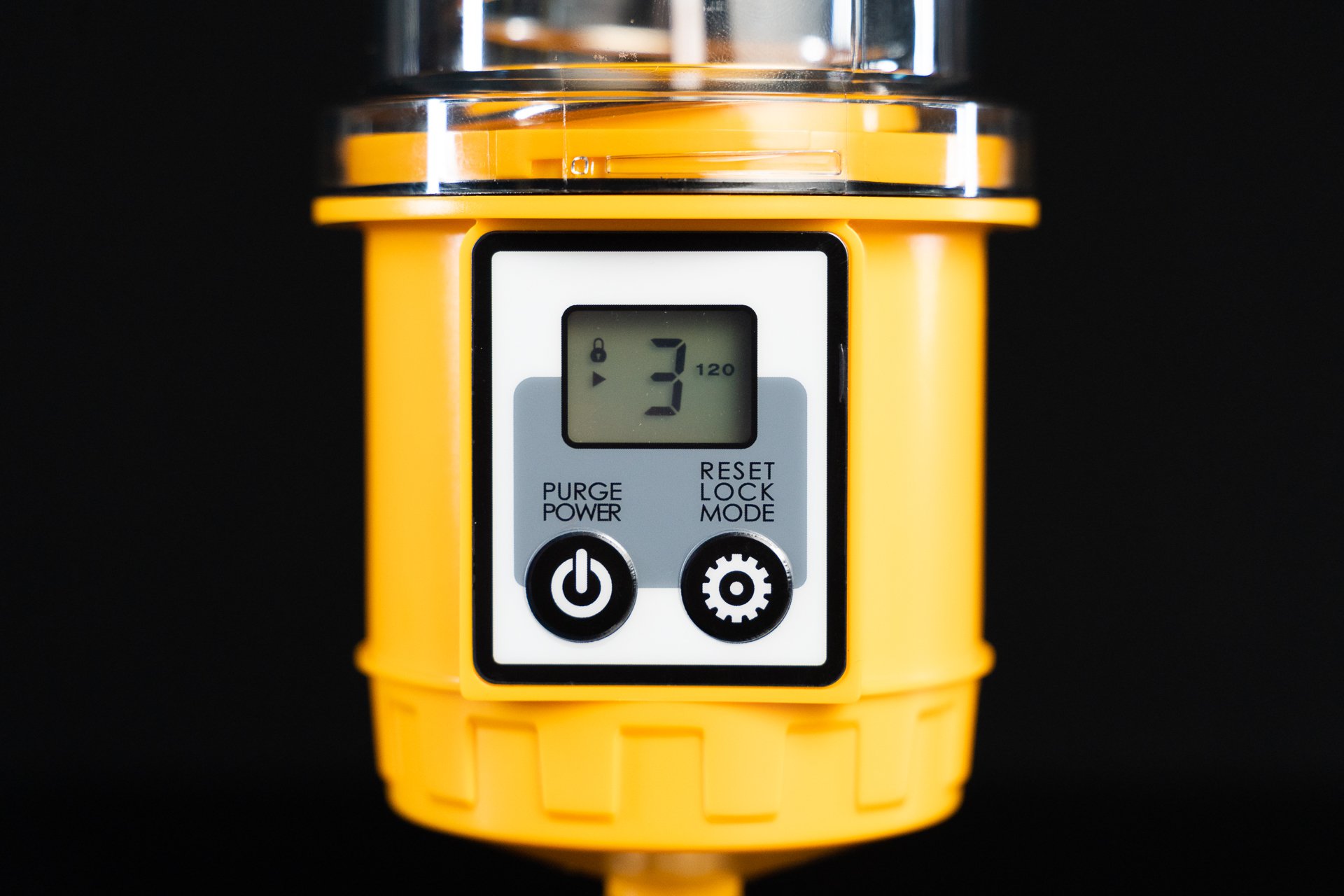

LCD Display
Dispensing Period
Displays selected dispensing rate from a choice of six – 1, 2, 3, 6, 9, and 12 months.
Days Until Empty
Displays the number of days remaining until grease pouch is empty.
Grease Capacity
Indicates the selected grease pouch capacity installed in the unit.
Alert Status
A LED blinks when battery level is low, excessive backpressure exists, or grease level is empty.
Empty Notification
Notification the unit is empty and the number of days since the grease pouch has been empty.
Feature
Durable Construction
Additional Features
- Accuracy
- Electro-mechanical driven with microprocessor control for precise lubrication delivery.
- Variable Dispensing Rate
- Select one of six variable dispensing rates from 1, 2, 3, 6, 9, and 12 months.
- IP65 Rating
- Dustproof and protected against water jets.
Other Specs
| Model | Description | Reservoir Capacity | Thread Connection |
|---|---|---|---|
| 33702 | Streamliner M EXPL | 120 cc | 3/8" NPT |
| 33703 | Streamliner M EXPL | 240 cc | 3/8" NPT |
-
Grease Pouch Capacity125 cc (4 oz) and 250 cc (8 oz) (replaceable)
-
Power SupplyDC 4.5 V Battery Pack (replaceable)
Standard: Alkaline Battery
Optional: Lithium Battery -
Dispensing Periods1, 2, 3, 6, 9, and 12 months
-
Dispensing Volume Size0.34 ml/stroke (@ 68°F/20°C)
-
Operating Pressure30 – 60 bar (435 – 870 psi)
-
Operating Temperature5°F – 122°F (-15°C – 50°C)
-
Single Point Remote InstallationLithium Battery: Maximum 20 ft (6 m) with 6mm diameter tube
-
Multi-Point InstallationLithium Battery: Maximum 10 ft (3 m) with 6mm diameter tube (up to 8 lube points)
-
Hazardous Location CertificationsIECEx : Ex ic IIB T4 Gc (International)
ATEX : II 3 G Ex ic IIB T4 Gc (EU)
KCs : Ex ic IIB T4 (KR)
NEPSI : Ex ic IIB T4 Gc (CN)
ETL : Class I, Division 2, Groups A, B, C, & D, T4
Class II, Division 2, Groups F, G, T4 (NA)
