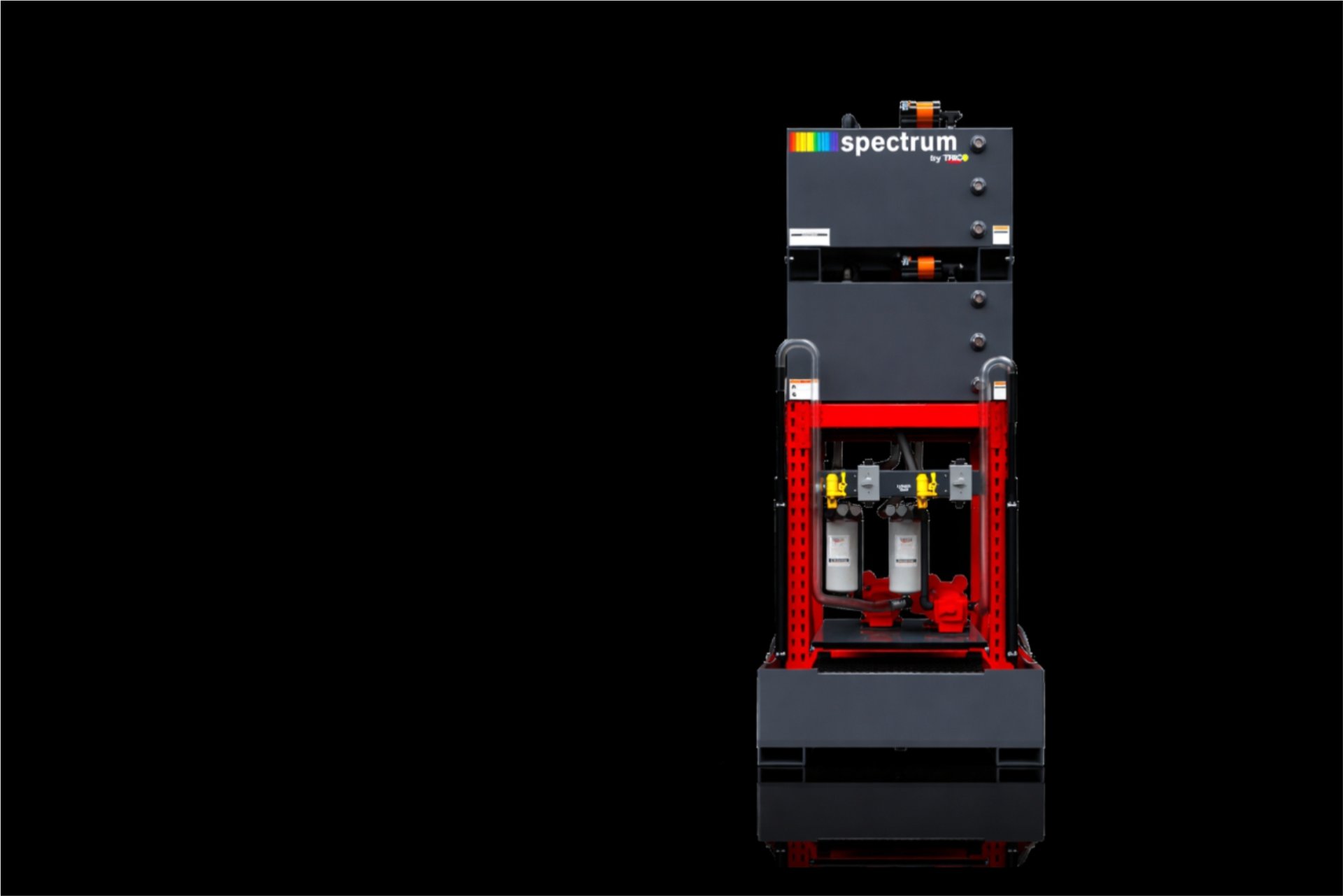

Spectrum Bulk Oil Storage System - Performance Stack

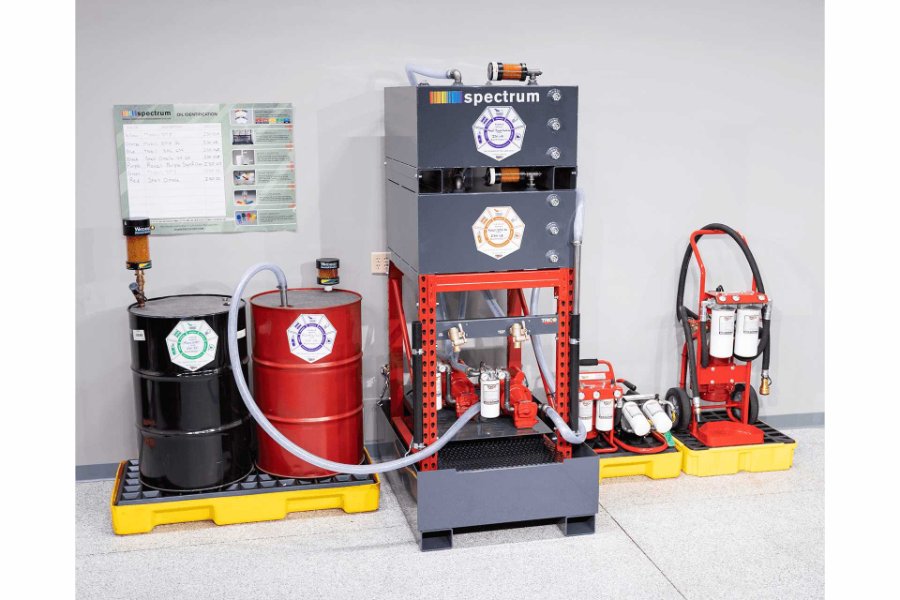

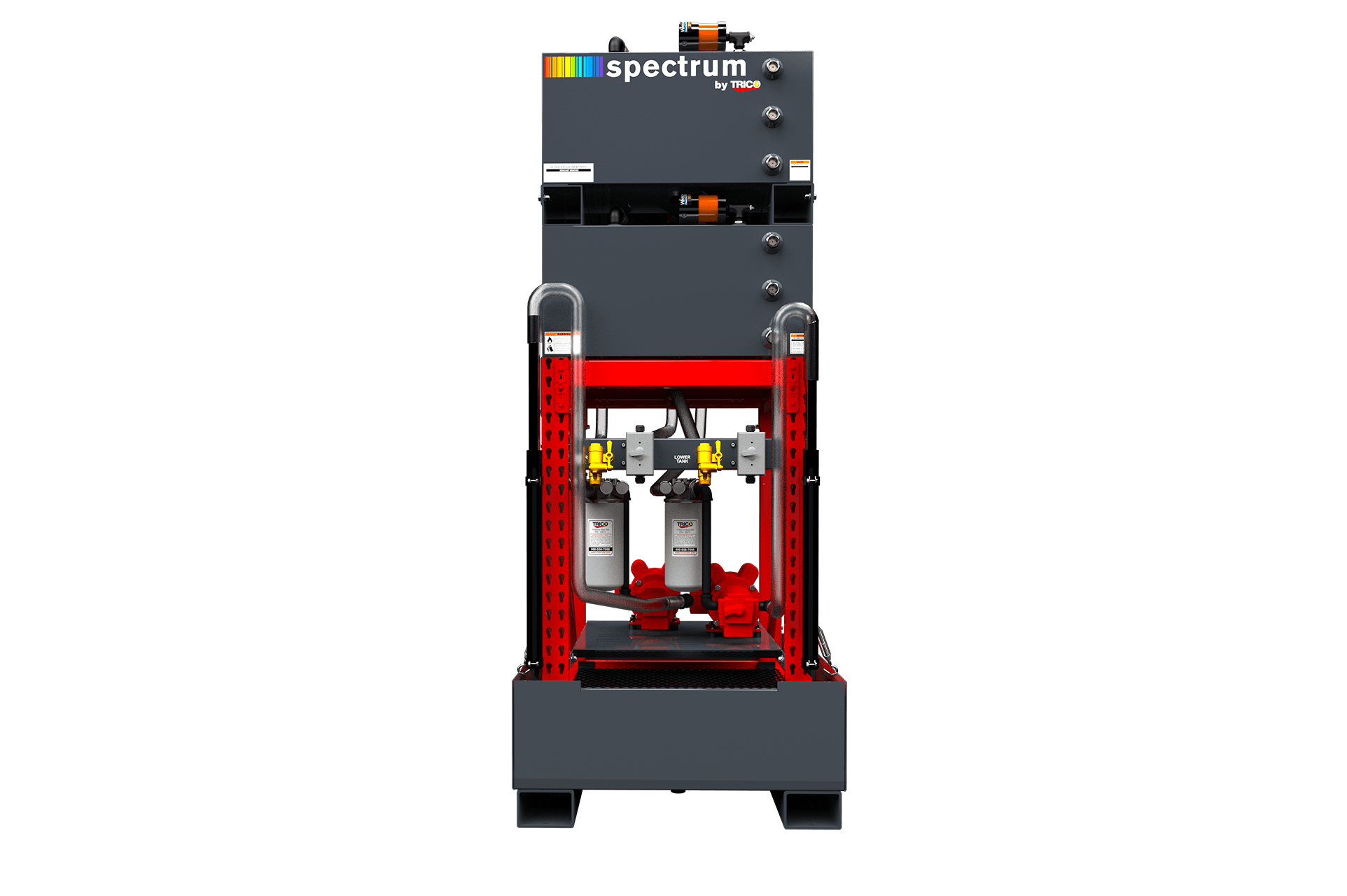

The Performance Stack provides best practices in storage and dispensing of lubricants with inline filtration. The Performance Stack System is designed to easily and effectively identify, store, handle, and dispense lubricants. It is an economical way to save space on a plant floor, while keeping lubricants organized and contaminant free.
The 65-gallon tank capacity eliminates the cost of wasted space, time, labor, and unnecessary equipment purchases required when using 55-gallon drums.
Feature
Contamination Control
The Performance Stack provides best practices in contamination control. Each tank has inline filtration, an individual pump, separate lubricant lines, and stainless-steel wands. This will prevent cross-contamination between different lubricants by having completely independent set ups for each storage tank. The inline filtration reduces the concentration of contaminants from the oils as they are being stored before use. The inline filtration for each tank has post-filter sampling port for oil sampling.
Feature
Integrated Forklift Pockets

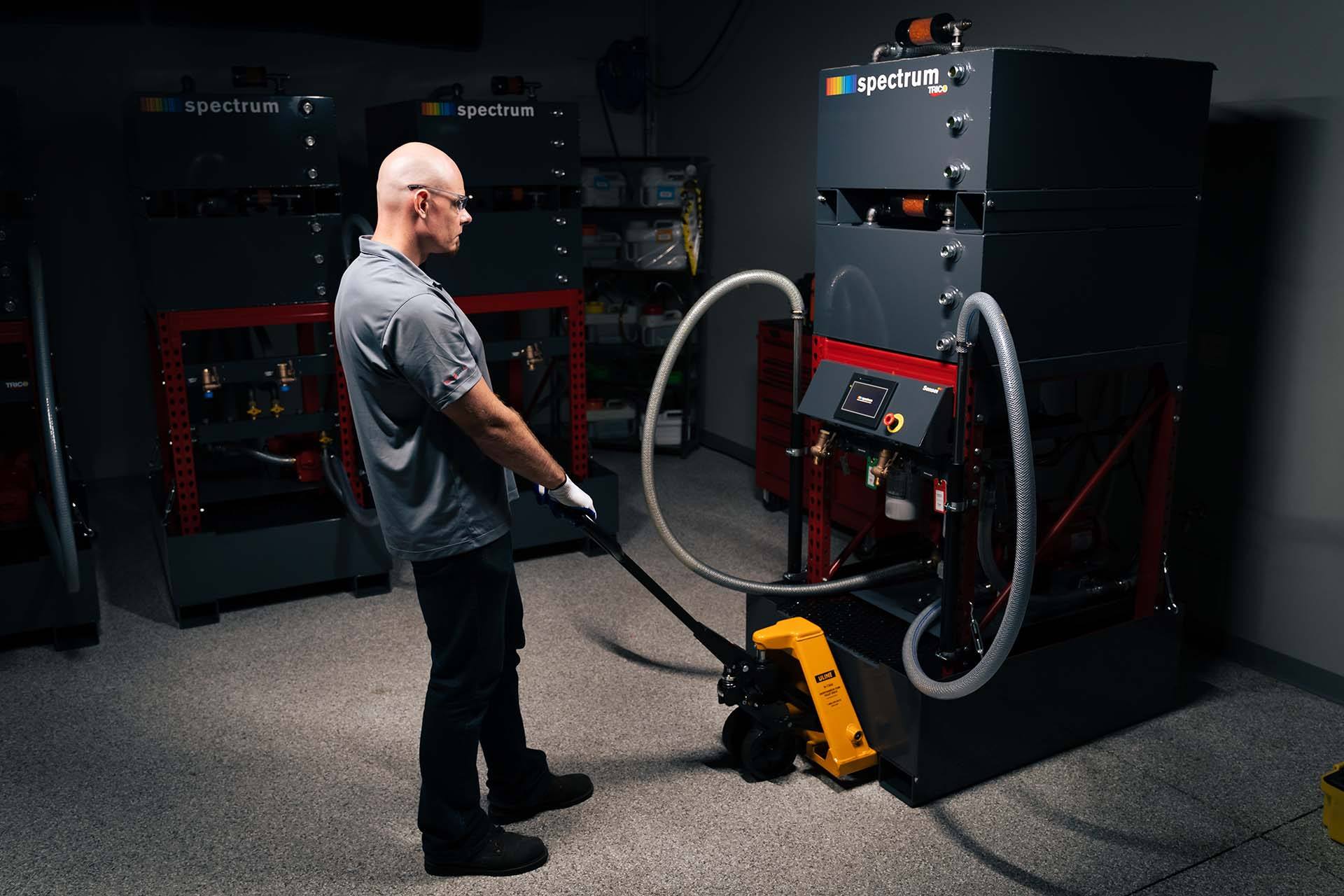

The Performance Stack System comes with built in lift points for easy forklift and hand pallet transportation.
Feature

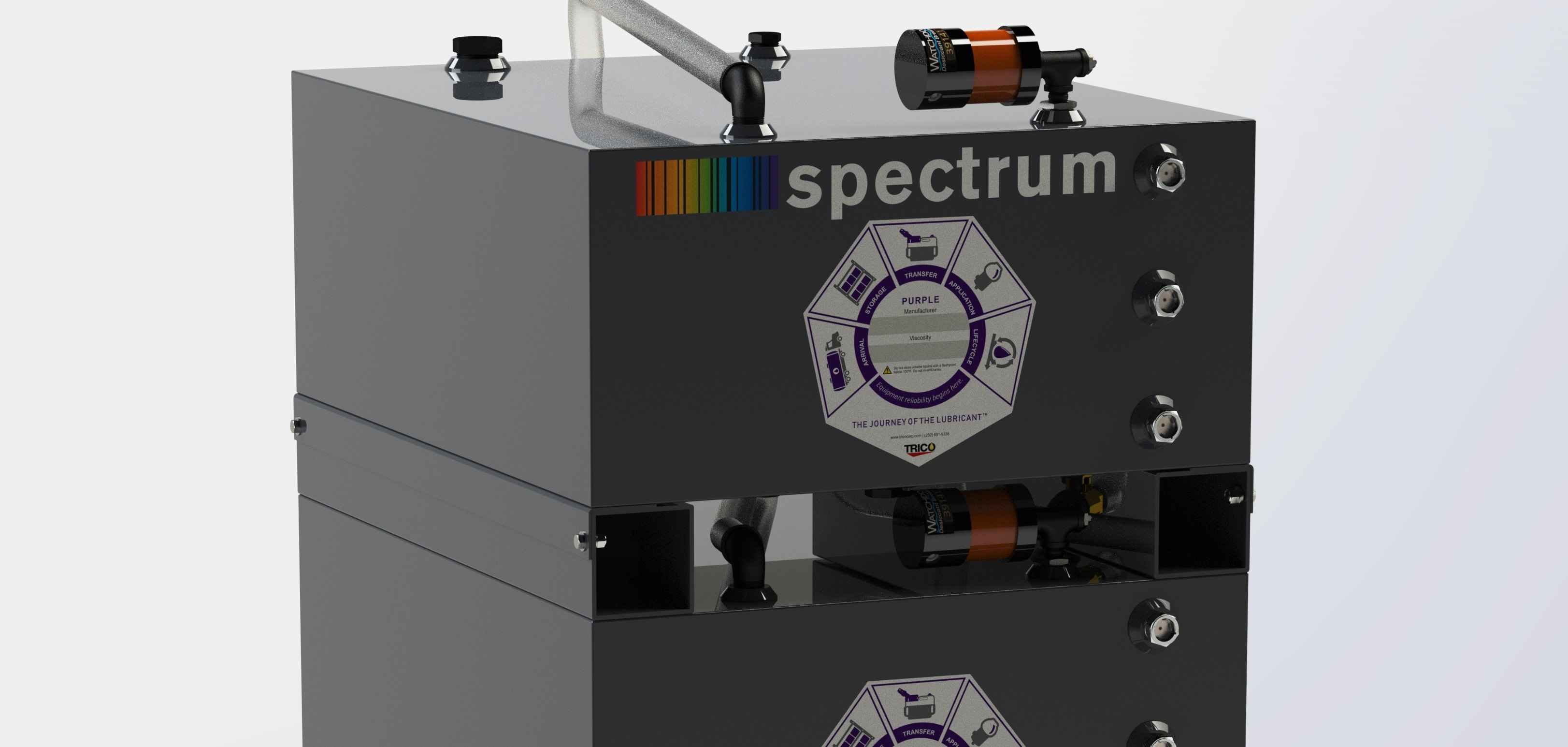

Color-Coded Organization
Eliminate the potential for mess and mishandling by keeping each fluid clearly identified with Trico's color-coded tags and labels, part of the Spectrum Visual Lubrication Management line of products.
Each label features a space to identify the specific substance contained within each tank, ensuring the right lubricant is delivered to the right equipment every time.
System comes with a set of 10 color labels and tags to clearly mark tanks and valves with oil type to ensure the right product is being used at the right application.
Feature

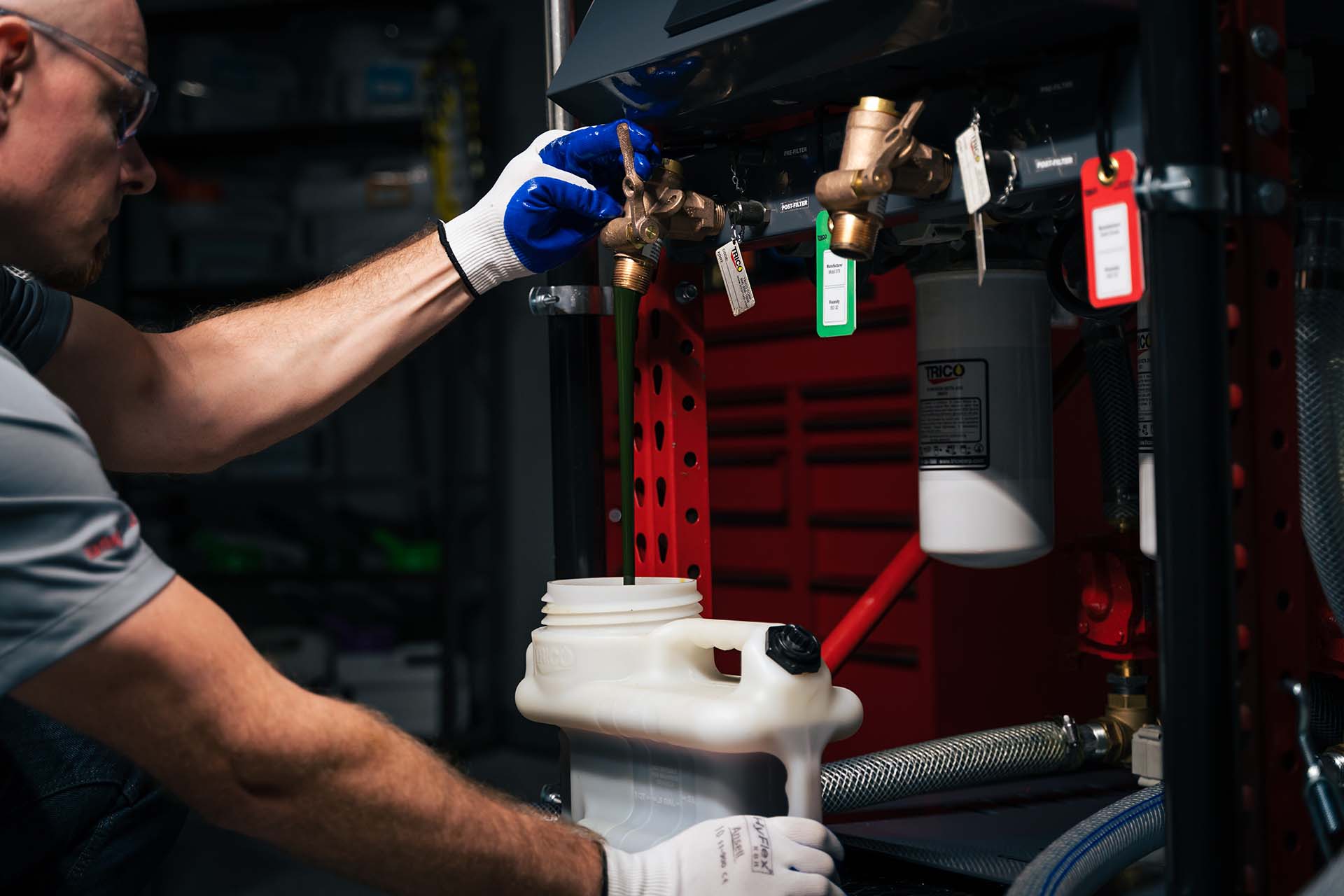

Self-Closing Brass Dispensing Valves
Additional Features
- 65 Gallon Tanks
10 gallons of additional capacity allows you to pump all product out of a 55-gallon drum and into the Spectrum Bulk Oil Storage tank.
- Expandable System
Easily add extra tanks with additional stack systems.
- Oil Sampling Ports
Oil sampling ports included post filter
- Heavy Gauge Racking
The heavy gauge racking supports tanks when completely filled with lubricant.
- Spill Containment and Dispensing Area
Heavy duty steel constructed and built to exceed regulations of 110% capacity
- Desiccant Breathers
Prevents moisture and particulate contamination from entering tanks

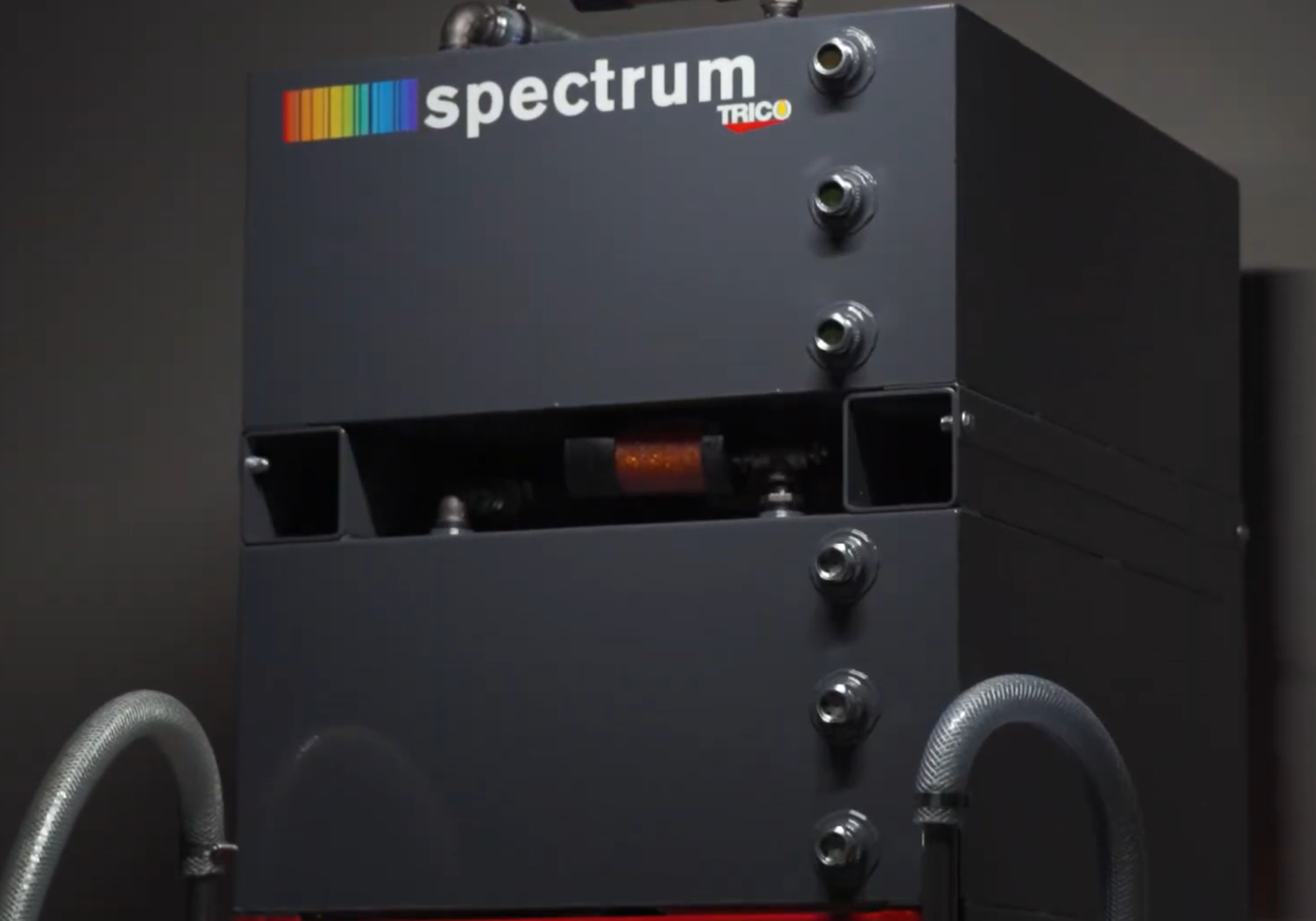

- Sight Ports
Provides quick easy indication of oil level
- Shut-Off Ball Valves
Each tank is equipped with its own valve to shut-off the oil flow
- Stainless Steel Wands
These heavy-duty stainless-steel wands are corrosion resistant to provide long life and are used to fill tanks.
- Pump Control Switch
Customer mounted on/off switch to control the operation of the pump
- Bronze Gear Pump
A self-priming pump saves time.
- Pressure Relief Valve
Prevents over pressurizing and damage to tanks
Other Specs
| Model | Description | Pump Motor | Depth | Width | Height |
|---|---|---|---|---|---|
| 37210 | Performance Stack | 120V 20 AMP | 46" | 36" | 88" |
| 37246 | Performance Stack | Pneumatic | 46" | 36" | 88" |
| 37258 | Performance Stack | 50 Hz | 46" | 36" | 88" |
-
Tank Size65 Gallons
-
Tank MaterialPowder Coated Steel
-
Frame MaterialPowder Coated Steel
-
Oil Level IndicationsViewports
-
Oil Type IndicatorColor-Coded Labels and Tags
-
FiltrationInline Filtration
-
Filter2 – 10 Micron Filters
-
Electric Motor1.5 HP @ 1750 RPM
-
Pneumatic Motor4 HP @ Max 3000 RPM
-
Pump Type2 – Industrial Grade Gear Pump
-
Desiccant Breather2 – Dedicated Breather for Each Tank
-
Wand2 – 1″ ID Stainless Steel Wand
-
Hoses1-1/4″ ID Heavy Wall Wire PVC
-
Spill ContainmentYes – 73 Gallons (OSHA Compliant)
-
Dispensing ValvesSelf-Closing Bronze Valves
-
Emergency StopNo
-
Power DispenseNo
-
Filter Life IndicatorPressure Differential
-
Sampling PortsPost Filter
-
Maximum ViscosityISO 680 at room temperature (70ºF)
-
Power120V 20 AMP (50 Hz option available)
-
Maximum Temperature150ºF (65ºC)
-
Rack Capacity2500 lbs
-
Overall Size88″H x 36″W x 46″D
-
Dry Weight860 lbs
-
Shipping Skid Size41″ x 58″
-
Wetted Parts Material CompositionSteel – Stainless, Galvanized & Zinc; Viton; Buna; Brass; Bronze; Iron – Galvanized & Black Coated; PVC; Aluminum
-
WarningFor use with only petroleum-based fluids. Do not use with solvents or fuels.
