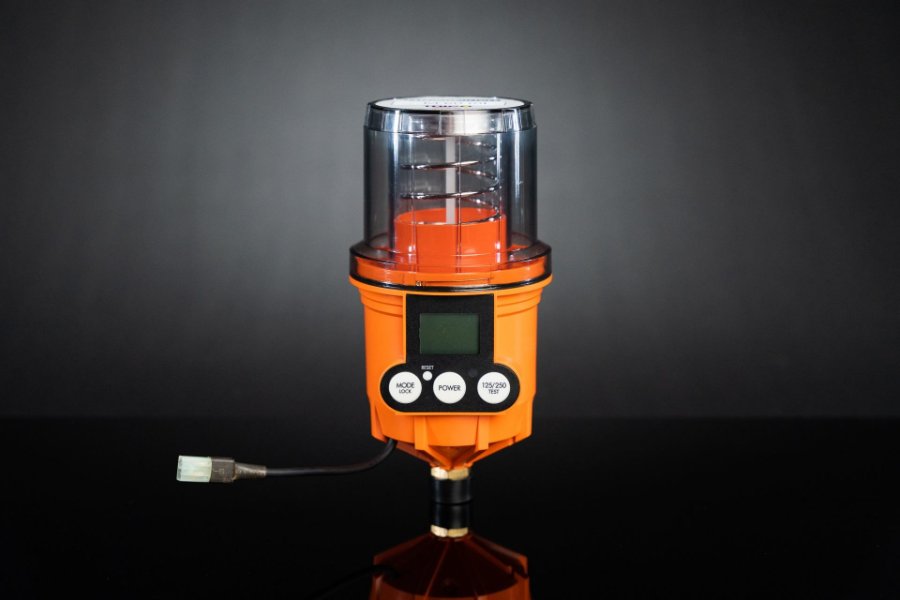

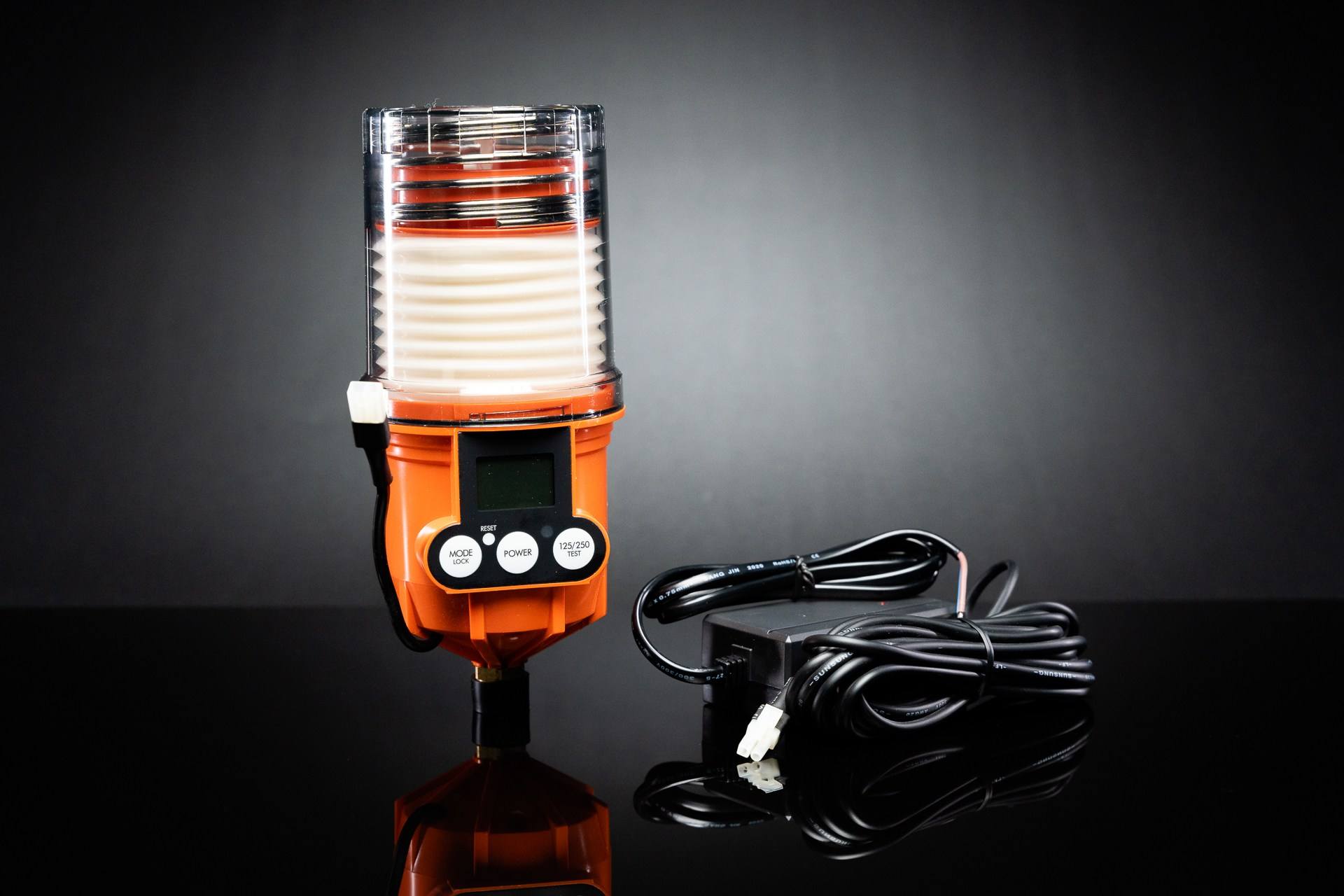

Machine Synchronized Unit – Streamliner MSP

The Streamliner MSP unit offers the advantage of providing automatic lubrication to machinery that is infrequently or intermittently used by synchronizing itself to the equipment, thereby avoiding the problem of overlubrication. It will dispense a preset amount of grease as the machine is operating and does not dispense lubricant if the equipment stops running. The unit goes into “standby mode” until the machine goes back into operation. The Streamliner MSP can be externally powered by the machine or PLC.

Contact Us to Purchase

Feature

Multi-Point Capability

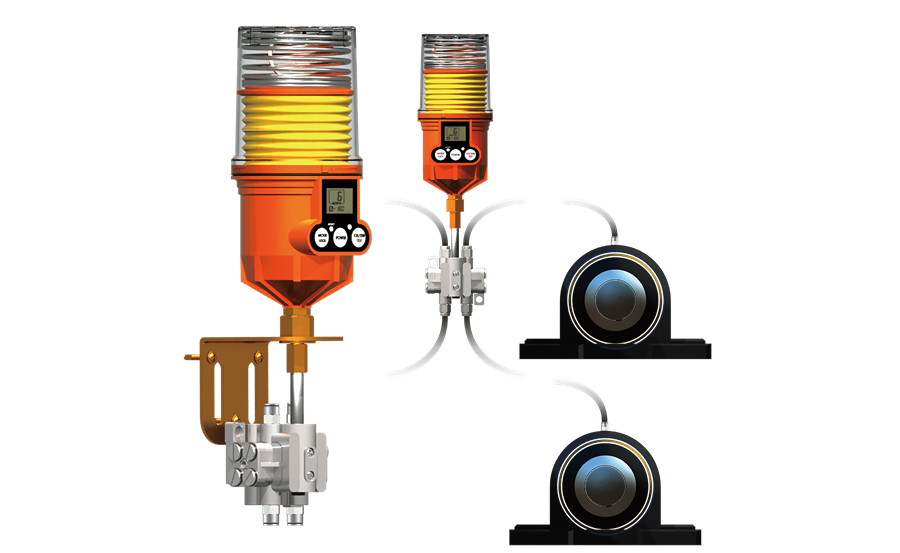

The dispenser has a high operating pressure of 280 psi, making it ideal for use in remote and multi-point applications. When used with a Distribution Block, a single unit can lubricate up to eight lubrication points.

Feature

Refillable

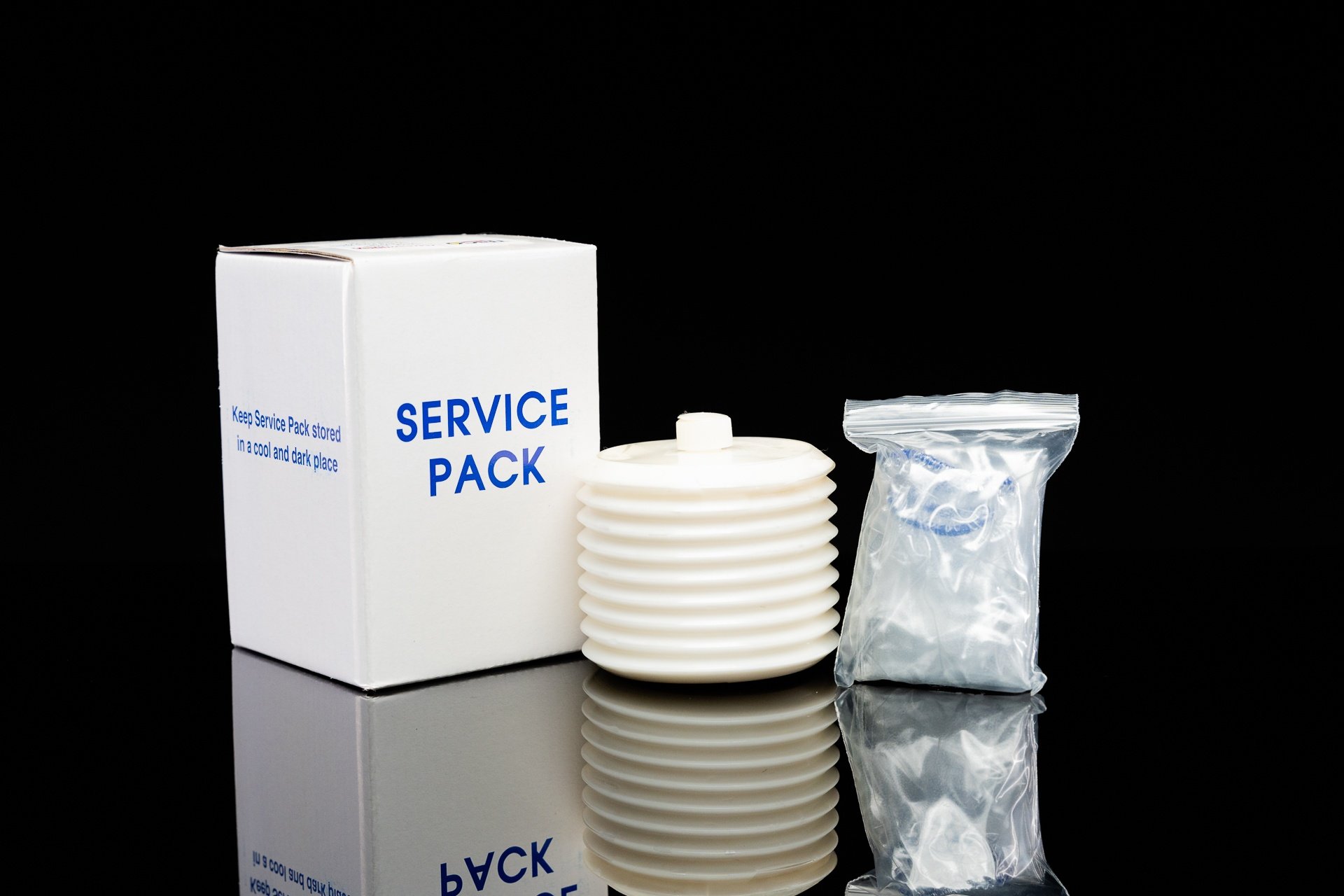

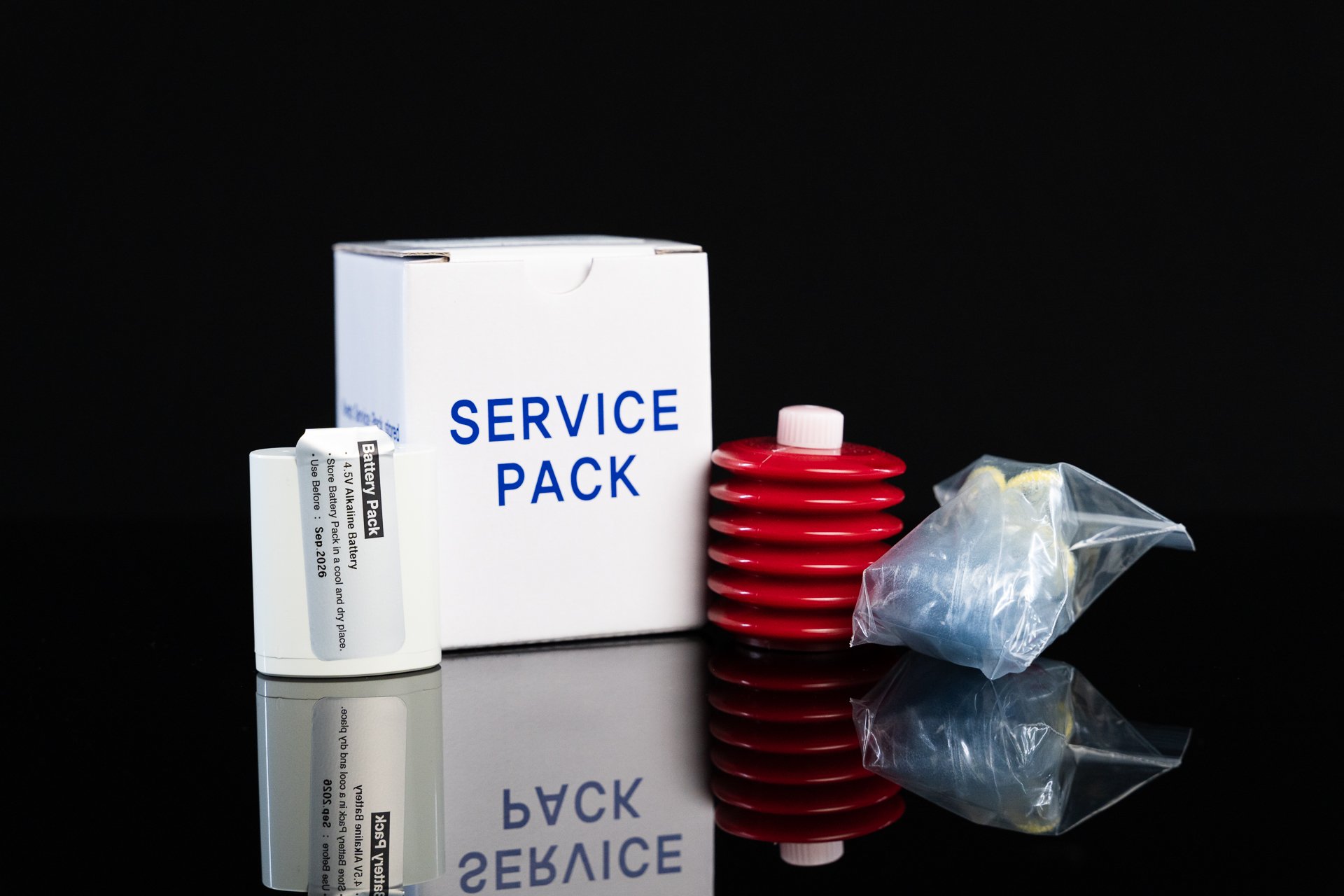

The Streamliner MSP Grease Dispenser is refillable through the use of a replaceable grease pouch. The grease pouch is prefilled with one of four standard greases with either a standard alkaline or high-performance lithium battery pack, depending on the requirements of the application. Grease pouches are sold as a service pack, which includes a dust cover as well.

Special Features

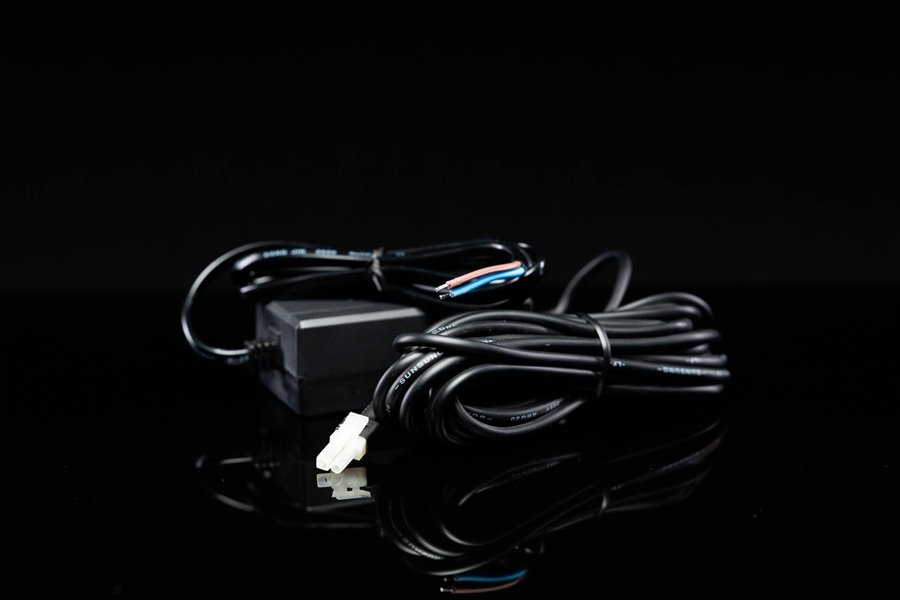

Intuitive Display & Power Supply


Feature

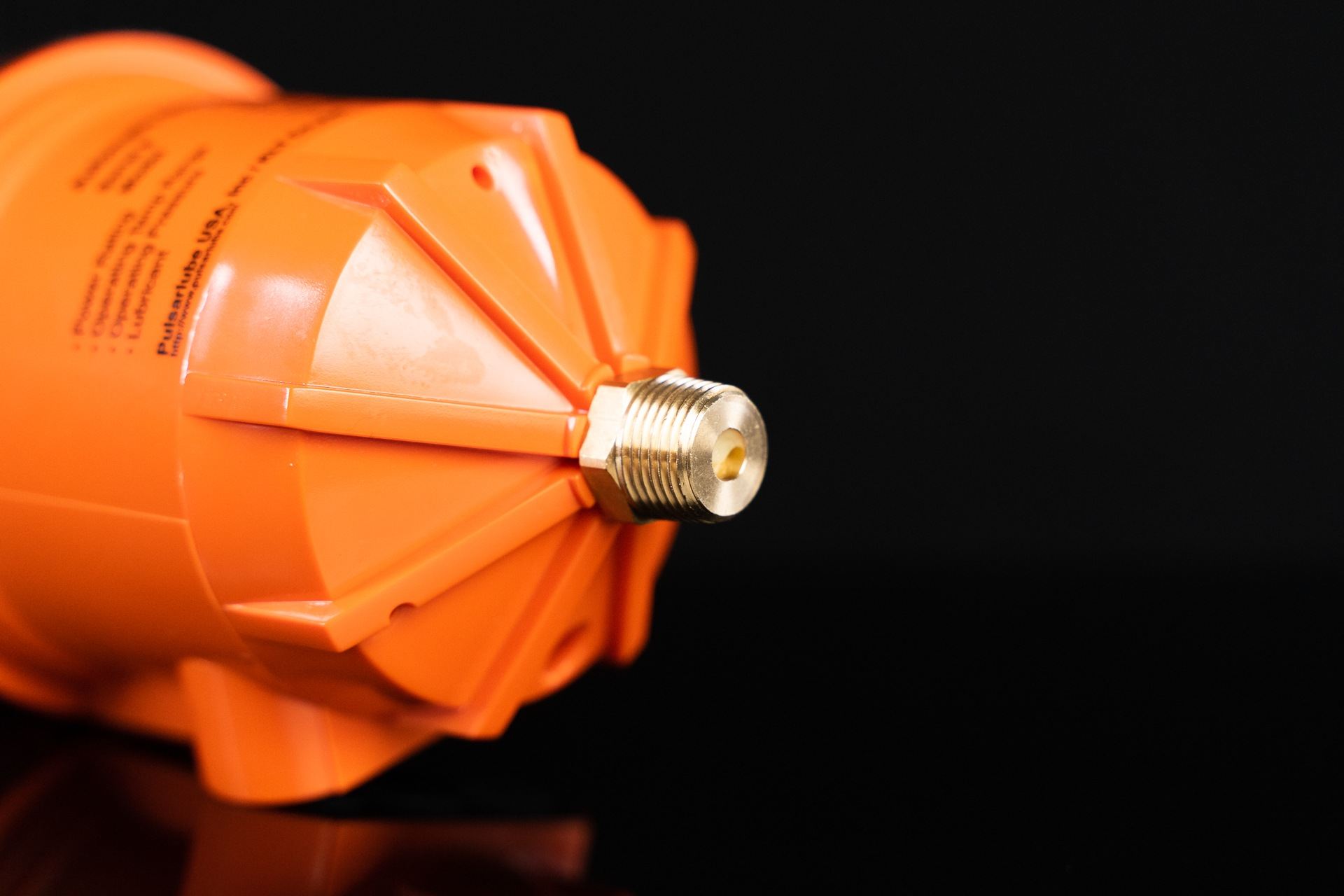

Durable Construction

The thread is tempered steel with a brass finish that allows the unit to excel in high-vibration applications.

Additional Features

Automatic Lubrication

Electro-mechanical driven with microprocessor control for precise lubrication.

Variable Dispensing Rates

Select one of nine variable dispensing rates depending on the size of grease dispenser: 1, 2, 3, 4, 6, 12, 18, 24, and half month.

Long Battery Life

No need to change the internal battery pack for up to 5 years (externally powered).

Other Specs

Model Description Grease Capacity Power Supply Grease Type NLGI# Thickener Type
33451 Streamliner MSP 125 cc VDC Mobilgrease XHP 222 2 Lithium Complex
33453 Streamliner MSP 125 cc VDC Mobilith SHC 100 2 Lithium Complex
33454 Streamliner MSP 125 cc VDC Mobilgrease FM 222 2 Aluminum Complex
33455 Streamliner MSP 125 cc VDC Mobilith SHC 220 2 Lithium Complex
33457 Streamliner MSP 125 cc VAC Mobilgrease XHP 222 2 Lithium Complex
33458 Streamliner MSP 125 cc VAC Exxon Unirex EP2 2 Lithium Complex
33459 Streamliner MSP 125 cc VAC Mobilith SHC 100 2 Lithium Complex
33461 Streamliner MSP 125 cc VAC Mobilith SHC 220 2 Lithium Complex
33463 Streamliner MSP 250 cc VDC Mobilgrease XHP 222 2 Lithium Complex
33464 Streamliner MSP 250 cc VDC Exxon Unirex EP2 2 Lithium Complex
33465 Streamliner MSP 250 cc VDC Mobilith SHC 100 2 Lithium Complex
33466 Streamliner MSP 250 cc VDC Mobilgrease FM 222 2 Aluminum Complex
33467 Streamliner MSP 250 cc VDC Mobilith SHC 220 2 Lithium Complex
33472 Streamliner MSP 250 cc VAC Mobilgrease FM 222 2 Aluminum Complex
33475 Streamliner MSP 500 cc VDC Mobilgrease XHP 222 2 Lithium Complex
33476 Streamliner MSP 500 cc VDC Exxon Unirex EP2 2 Lithium Complex
33477 Streamliner MSP 500 cc VDC Mobilith SHC 100 2 Lithium Complex
33478 Streamliner MSP 500 cc VDC Mobilgrease FM 222 2 Aluminum Complex
33479 Streamliner MSP 500 cc VDC Mobilith SHC 220 2 Lithium Complex
33482 Streamliner MSP 500 cc VAC Exxon Unirex EP2 2 Lithium Complex

Automatic Single Point Grease Lubricators

Watch on YouTube

Related Products

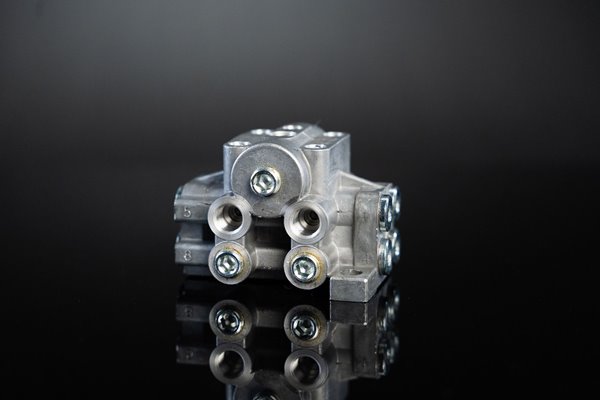

Distribution Blocks

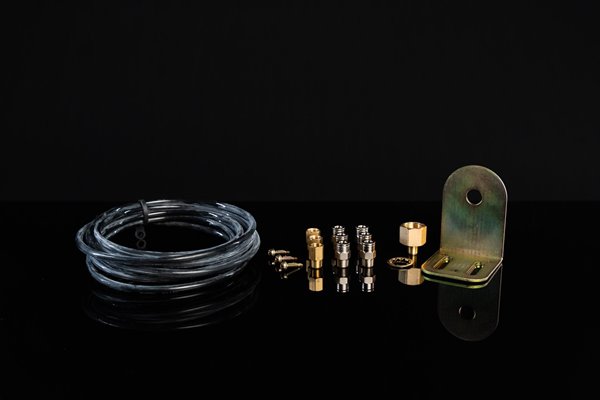

Streamliner Installation Kit
