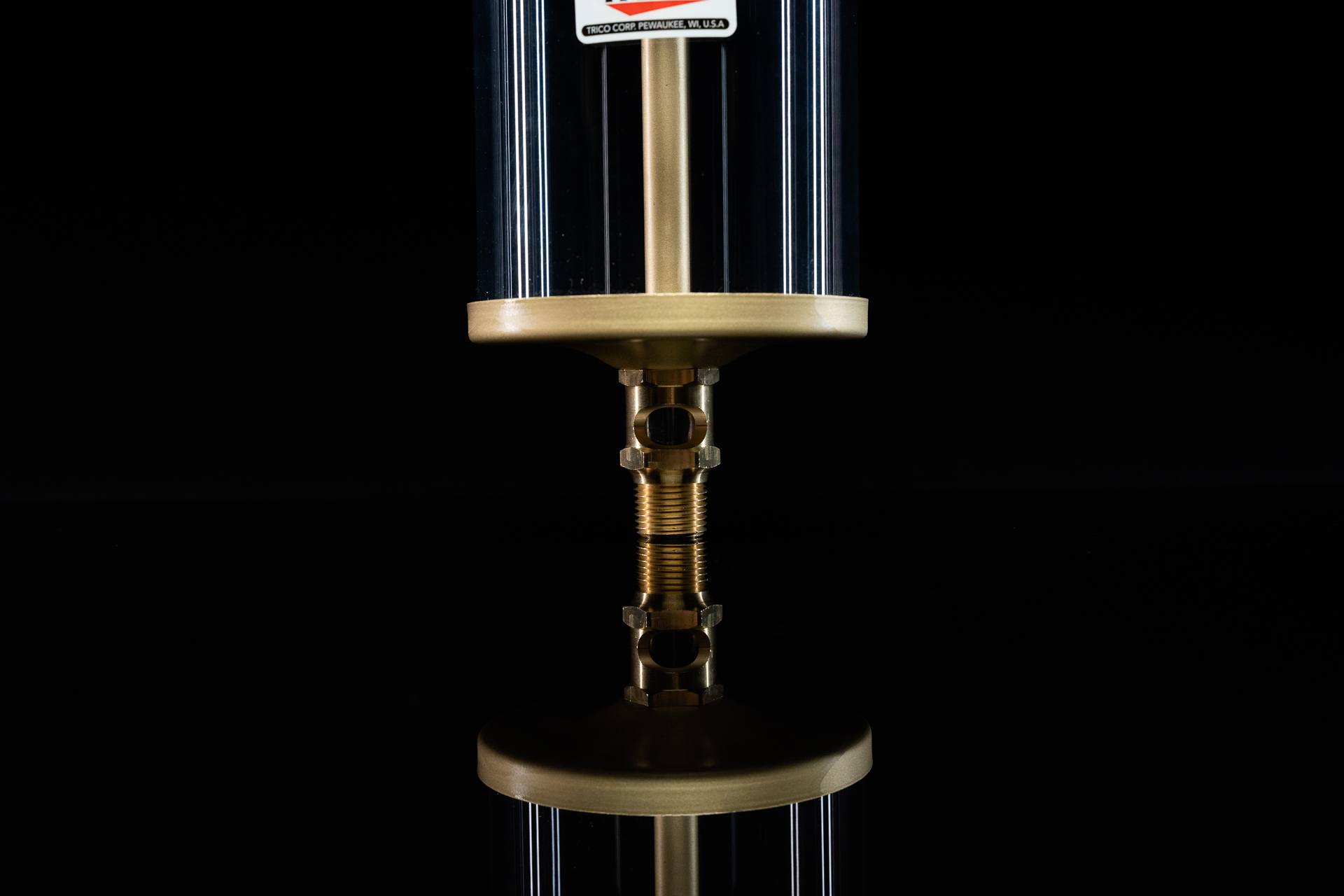

AL Gravity Feed Oilers
The AL Oiler is used in all heavy-duty applications where a large oil capacity is needed and an adjustable rate of oil is required.
Feature
Three Switches
A three-position toggle switch provides easy on-off control and a flushing option to avoid dry start-ups. The knurled adjustment knob allows for easy fine tuning of drip rates. The switch is then threaded down to lock the adjustment knob in place for consistency.
Feature
Convenient Sight Window
This viewing area allows you to visually see the drip rate you are setting.
Additional Features
- Simple Installation
Direct mounting with NPT threads simplifies installation
- Dependable Design
Silver brazing of all brass construction provides leak proof design and long life in high vibration applications
- Durable
Clear lacquer finish resists corrosion
Other Specs
| Model | Description | Capacity | Connection (NPT) | Reservoir | Dim A (in) | Dim B (in) |
|---|---|---|---|---|---|---|
| 31416 | AL Oiler | 1 pt | 3/8 | Acrylic | 4-7/16 | 4-5/16 |
| 31417 | AL Oiler | 1 pt | 1/2 | Acrylic | 4-7/16 | 4-5/16 |
| 31432 | AL Oiler | 1 qt | 1/2 | Acrylic | 4-7/16 | 7-5/8 |
| 31480 | AL Oiler | 2.5 qt | 1/2 | Acrylic | 5-11/16 | 9-3/4 |
| 31481 | AL Oiler | 1 gal. | 1/2 | Acrylic | 5-11/16 | 14-13/16 |
| 31517 | AL Oiler | 1 pt | 3/8 | Glass | 4-7/16 | 4-5/16 |
| 31518 | AL Oiler | 1 pt | 1/2 | Glass | 4-7/16 | 4-5/16 |
| 31543 | AL Oiler | 1 qt | 1/2 | Glass | 4-7/16 | 7-5/8 |
| 31581 | AL Oiler | 2.5 qt | 1/2 | Glass | 5-11/16 | 9-3/4 |
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
Description
Capacity
Connection (NPT)
Reservoir
Dim A (in)
Dim B (in)
-
Max. Operating Temp.Glass 250° F Continuous
Acrylic 165° F Continuous -
ReservoirHeavy Wall Heat Resistant Glass
Heavy Wall Acrylic Plastic -
Oil SightHeavy Wall Heat Resistant Glass
Heavy Wall Acrylic Plastic -
GasketBuna-N
-
MaterialBrass
-
FinishLacquered Satin Finish
-
Needle ValveBrass
