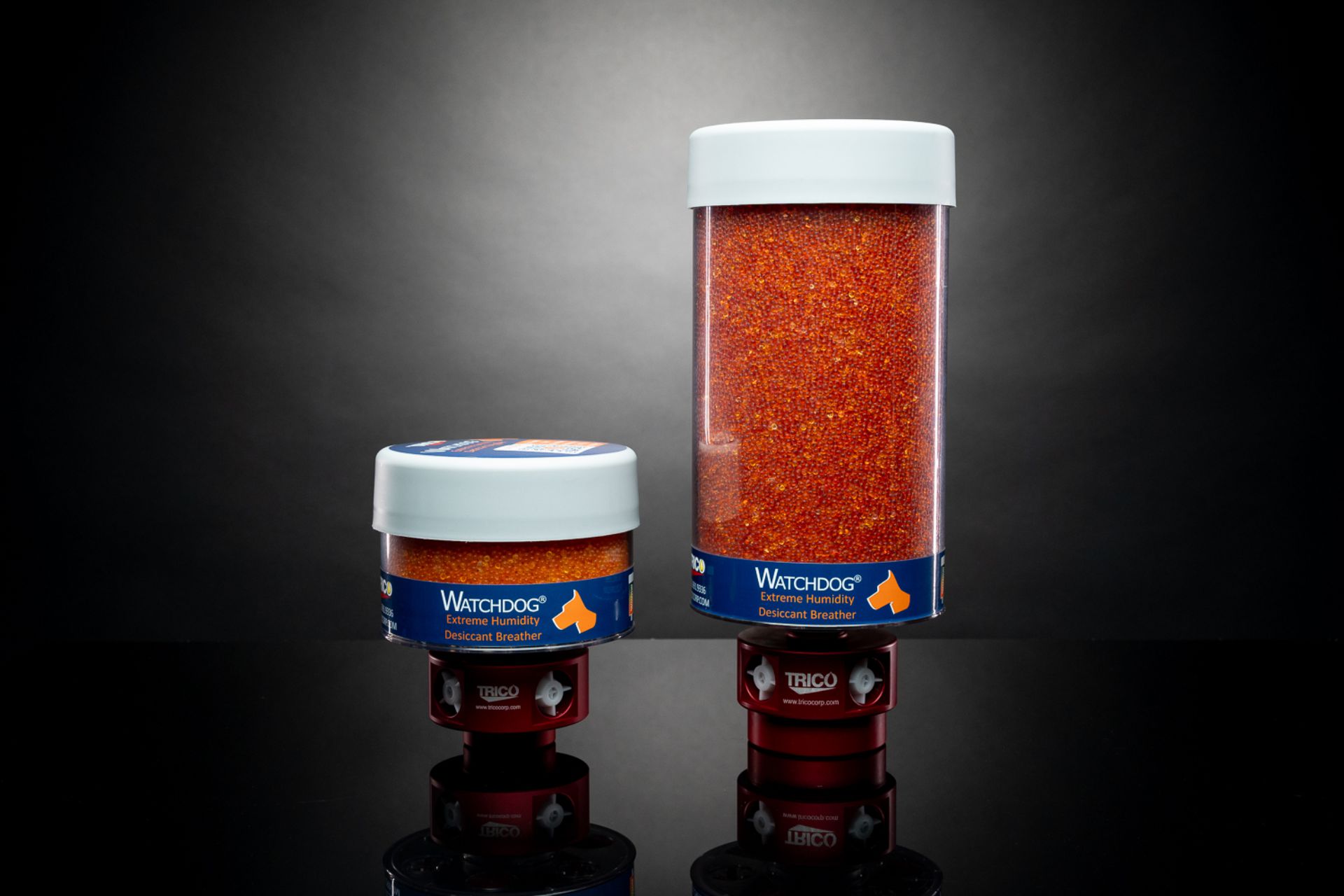

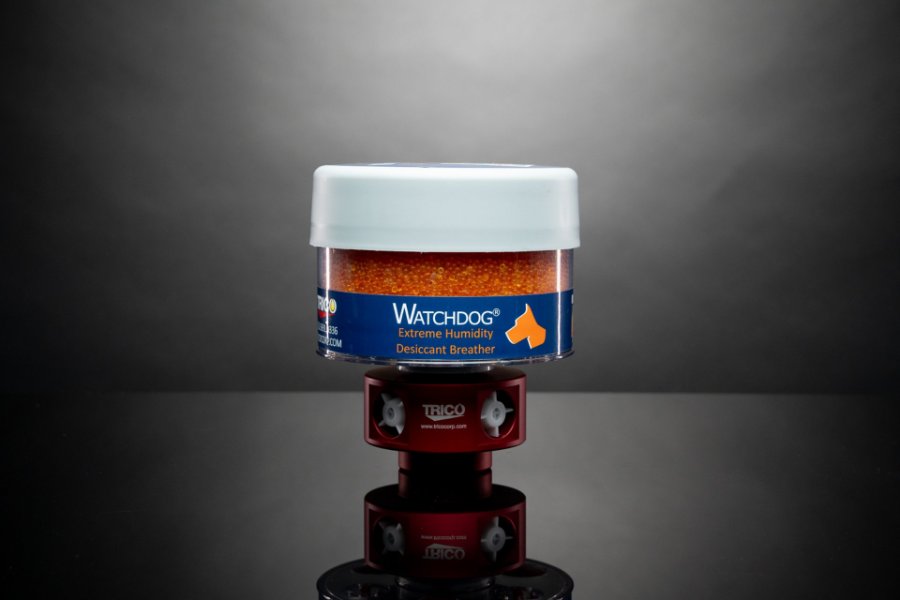

Watchdog Bypass Flow Desiccant Breathers

Watchdog Bypass Flow Desiccant Breathers are a simple solution to protect your equipment from moisture and contaminants while maximizing efficiency. Featuring innovative check valve technology and the Bypass Flow Adapter, these breathers not only remove moisture and particulate but also extends the life of the desiccant, reducing maintenance and replacement costs.

Contact Us to Purchase

Feature

Bypass Flow Adapter

The Bypass Flow Adapter features a smart airflow design that directs exhaust air out before it reaches the reservoir breather. This innovative design shields the desiccant breather from oil mist and system humidity, significantly extending its lifespan. By reducing exposure to contaminants, the adapter ensures better performance and less frequent desiccant cartridge changes.


Feature

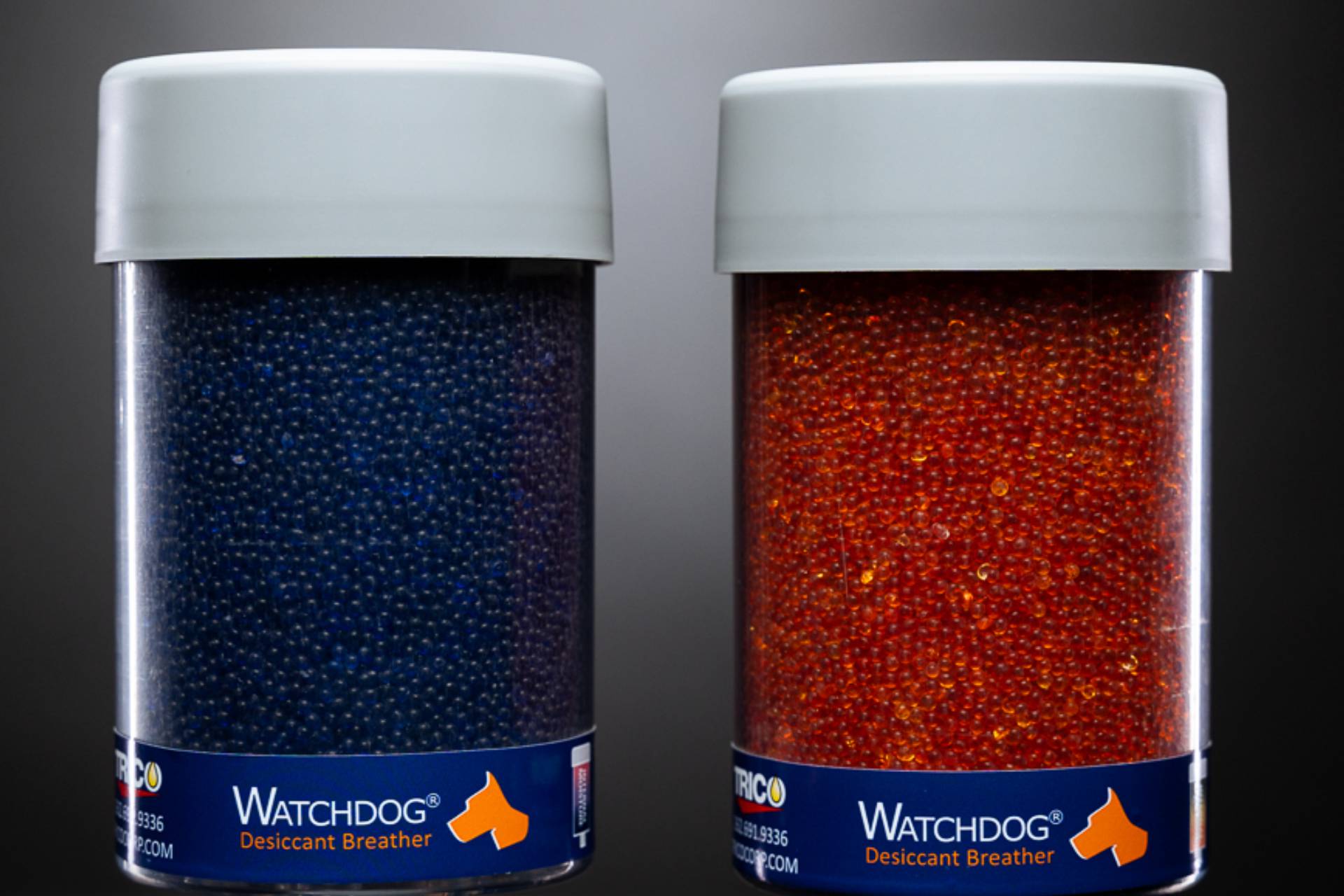

Desiccant Color Options

You have a choice between blue and orange desiccant breathers to meet the diverse moisture control needs of your industrial equipment.

Feature

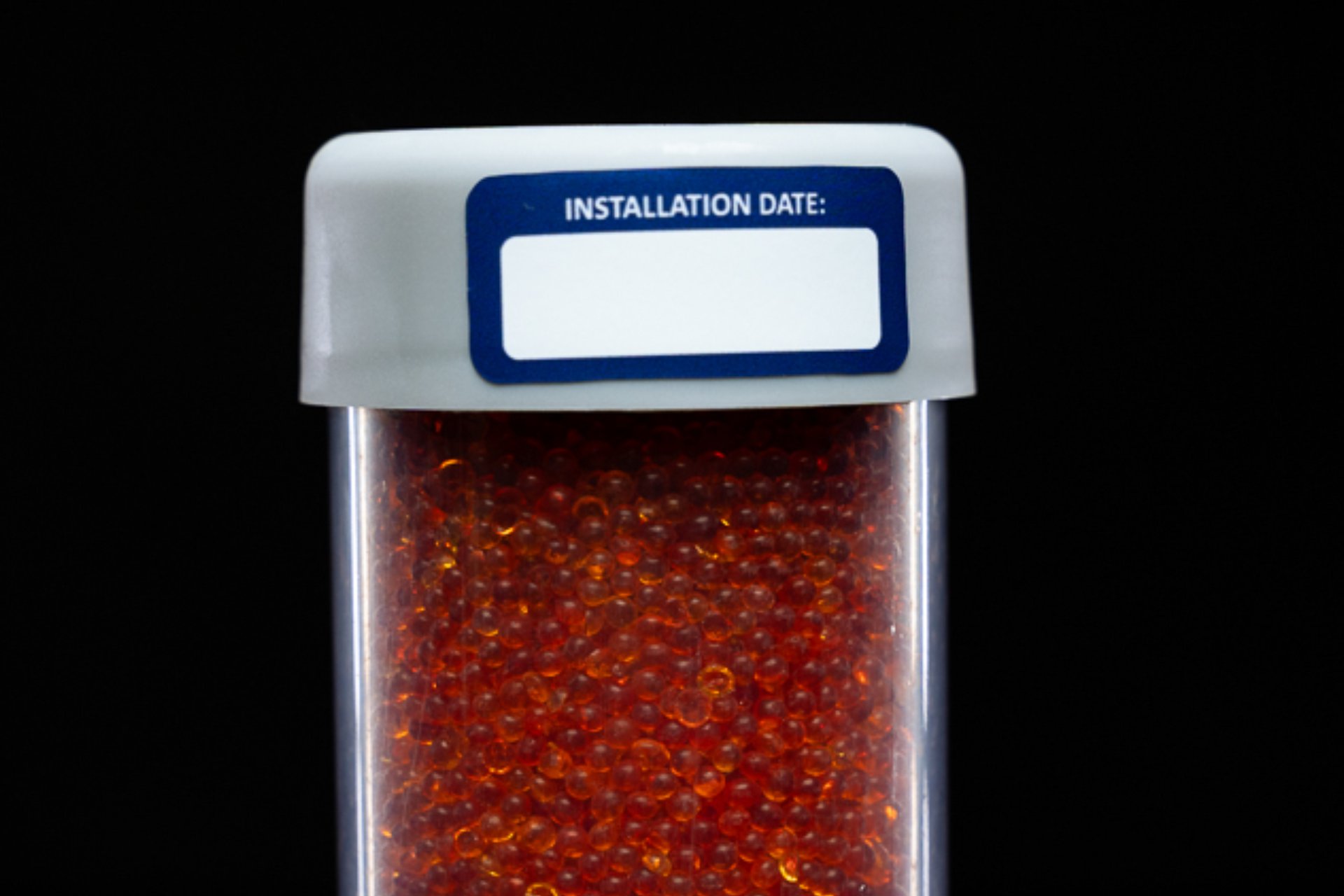

Installation Date

An Installation Date label is included with each desiccant breather. By recording the installation date, you can gain valuable insights into the efficiency and longevity of the breather across various operational environments. This tracking is instrumental in evaluating the breather's effectiveness, allowing for data-driven decisions regarding future purchases or upgrades, tailored to your specific conditions. Additionally, understanding the service duration of the breathers facilitates effective budgeting for replacements and efficient inventory management. This proactive approach not only helps in avoiding premature replacements but also ensures that you are making the most cost-effective use of your desiccant breathers.

Additional Features

Superior Filtration
Dual zone filtration for high dirt-holding capacity and minimal pressure drop.
Inflow/Outflow Check Valves
Protects silica gel from humid ambient conditions, extending life.
Water Vapor Adsorbent
The silica gel used adsorbs up to 40% of its own weight.
Visual Indication
When maximum adsorption is reached, the silica gel changes color, indicating replacement is needed.

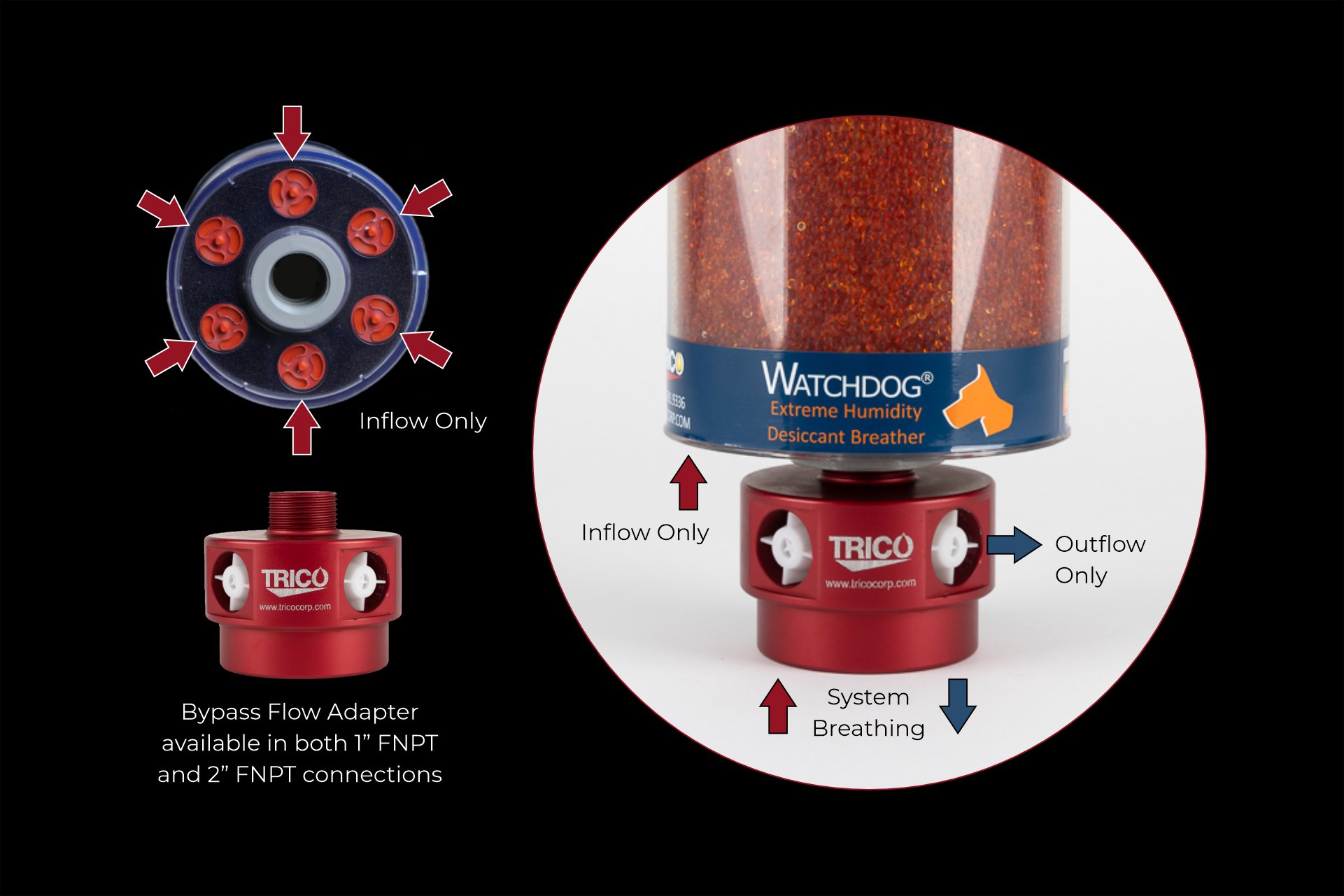

Bypass Flow Adapter
Watchdog Bypass Flow Desiccant Breathers check valvesa are positioned inward to inhale from the atmosphere and they must be used with the Bypass Flow Adapter to exhale air out of the system.

Other Specs

Model Description Adapter Included Air Flow Water Capacity Silica Gel Color Height Diameter Connection Fluid Volume Exchange
WA-BF-1 Replacement Bypass Flow Adapter 1" FNPT Not Applicable Not Applicable 3.00" 3.50" 1" FNPT Not Applicable
WA-BF-2 Replacement Bypass Flow Adapter 2" FNPT Not Applicable Not Applicable 3.00" 3.50" 2" FNPT Not Applicable
WB-040627-BF-1 Bypass Flow Desiccant Breather 1" FNPT 30 CFM 272 ml or 0.6 lbs Blue 6.40" 5.70" 1" FNPT 223 gpm or 845 lpm
WB-040627-BF-2 Bypass Flow Desiccant Breather 2" FNPT 30 CFM 272 ml or 0.6 lbs Blue 6.40" 5.70" 2" FNPT 223 gpm or 845 lpm
WB-040627-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 30 CFM 272 ml or 0.6 lbs Blue 4.40" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 223 gpm or 845 lpm
WB-070626-BF-1 Bypass Flow Desiccant Breather 1" FNPT 29 CFM 500 ml or 1.10 lbs Blue 8.50" 5.70" 1" FNPT 217 gpm or 821 lpm
WB-070626-BF-2 Bypass Flow Desiccant Breather 2" FNPT 29 CFM 500 ml or 1.10 lbs Blue 8.50" 5.70" 2" FNPT 217 gpm or 821 lpm
WB-070626-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 29 CFM 500 ml or 1.10 lbs Blue 6.50" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 217 gpm or 821 lpm
WB-090625-BF-1 Bypass Flow Desiccant Breather 1" FNPT 28 CFM 728 ml or 1.60 lbs Blue 10.60" 5.70" 1" FNPT 209 gpm or 793 lpm
WB-090625-BF-2 Bypass Flow Desiccant Breather 2" FNPT 28 CFM 728 ml or 1.60 lbs Blue 10.60" 5.70" 2" FNPT 209 gpm or 793 lpm
WB-090625-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 28 CFM 728 ml or 1.60 lbs Blue 8.60" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 209 gpm or 793 lpm
WB-110624-BF-1 Bypass Flow Desiccant Breather 1" FNPT 26 CFM 958 ml or 2.11 lbs Blue 12.70" 5.70" 1" FNPT 194 gpm or 736 lpm
WB-110624-BF-2 Bypass Flow Desiccant Breather 2" FNPT 26 CFM 958 ml or 2.11 lbs Blue 12.70" 5.70" 2" FNPT 194 gpm or 736 lpm
WB-110624-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 26 CFM 958 ml or 2.11 lbs Blue 10.70" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 194 gpm or 736 lpm
WG-040627-BF-1 Bypass Flow Desiccant Breather 1" FNPT 30 CFM 272 ml or 0.6 lbs Orange 6.40" 5.70" 1" FNPT 223 gpm or 845 lpm
WG-040627-BF-2 Bypass Flow Desiccant Breather 2" FNPT 30 CFM 272 ml or 0.6 lbs Orange 6.40" 5.70" 2" FNPT 223 gpm or 845 lpm
WG-040627-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 30 CFM 272 ml or 0.6 lbs Orange 4.40" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 223 gpm or 845 lpm
WG-070626-BF-1 Bypass Flow Desiccant Breather 1" FNPT 29 CFM 500 ml or 1.10 lbs Orange 8.50" 5.70" 1" FNPT 217 gpm or 821 lpm
WG-070626-BF-2 Bypass Flow Desiccant Breather 2" FNPT 29 CFM 500 ml or 1.10 lbs Orange 8.50" 5.70" 2" FNPT 217 gpm or 821 lpm
WG-070626-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 29 CFM 500 ml or 1.10 lbs Orange 6.50" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 217 gpm or 821 lpm
WG-090625-BF-1 Bypass Flow Desiccant Breather 1" FNPT 28 CFM 728 ml or 1.60 lbs Orange 10.60" 5.70" 1" FNPT 209 gpm or 793 lpm
WG-090625-BF-2 Bypass Flow Desiccant Breather 2" FNPT 28 CFM 728 ml or 1.60 lbs Orange 10.60" 5.70" 2" FNPT 209 gpm or 793 lpm
WG-090625-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 28 CFM 728 ml or 1.60 lbs Orange 8.60" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 209 gpm or 793 lpm
WG-110624-BF-1 Bypass Flow Desiccant Breather 1" FNPT 26 CFM 958 ml or 2.11 lbs Orange 12.70" 5.70" 1" FNPT 194 gpm or 736 lpm
WG-110624-BF-2 Bypass Flow Desiccant Breather 2" FNPT 26 CFM 958 ml or 2.11 lbs Orange 12.70" 5.70" 2" FNPT 194 gpm or 736 lpm
WG-110624-BF-R Desiccant Breather Replacement Cartridge Replacement Reservoir 26 CFM 958 ml or 2.11 lbs Orange 10.70" 5.70" 1" Tri-Fit FNPT, FBSPP, FNPSM 194 gpm or 736 lpm

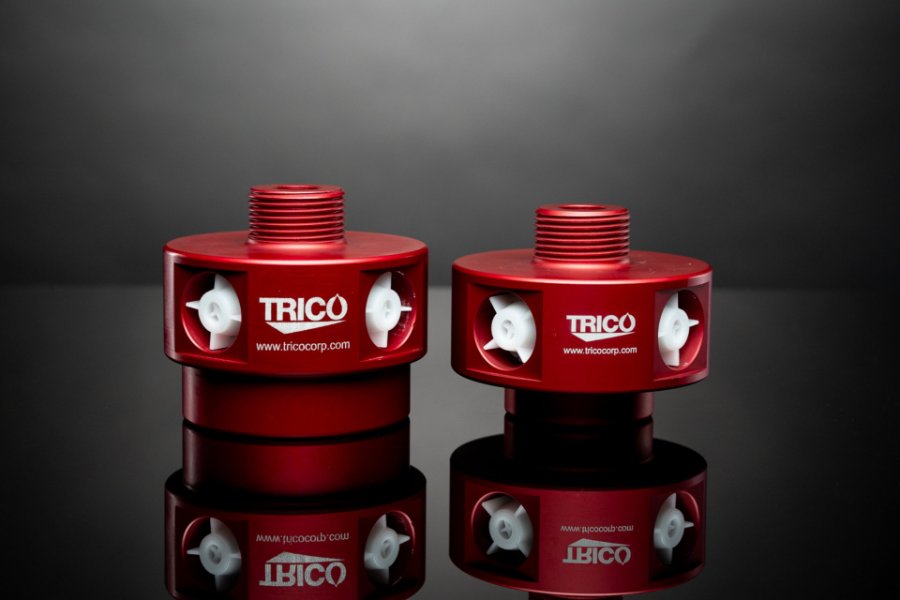

Bypass Flow Adapters (sold with unit except for replacement desiccant breather cartridges)

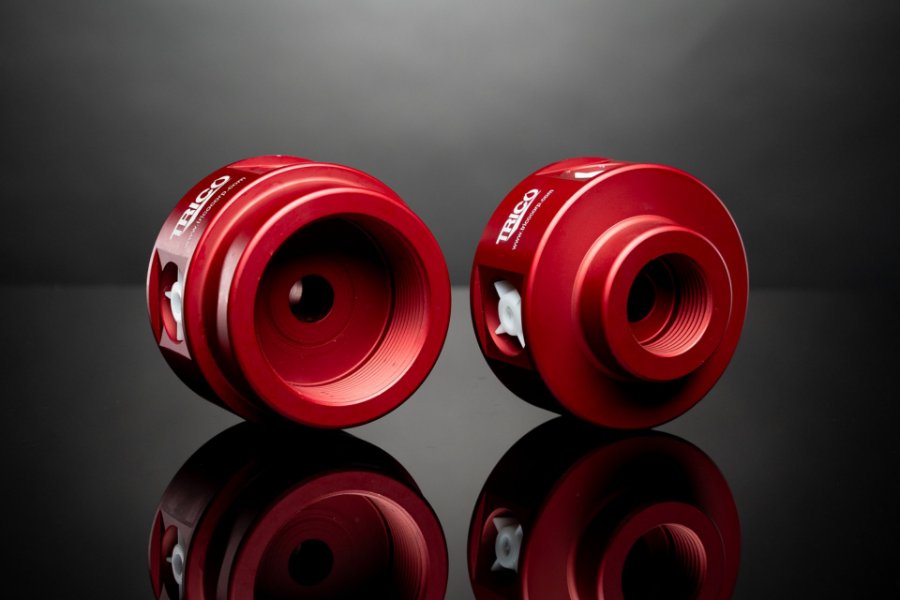

Bypass Flow Adapters available in 1" FNPT or 2" FNPT

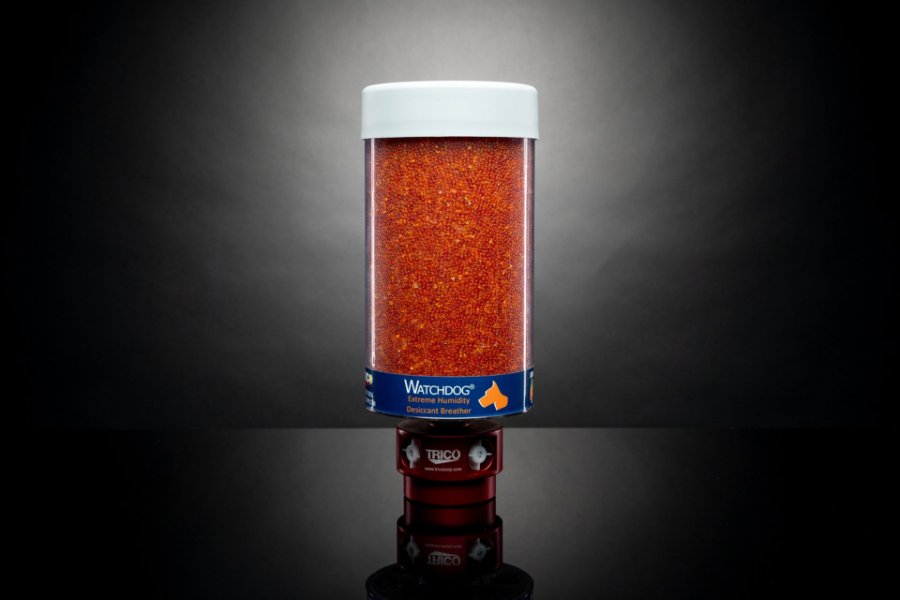

Watchdog Bypass Flow Desiccant Breather (Bypass Flow Adapter sold with unit)

Watchdog Bypass Flow Desiccant Breather (Bypass Flow Adapter sold with unit)

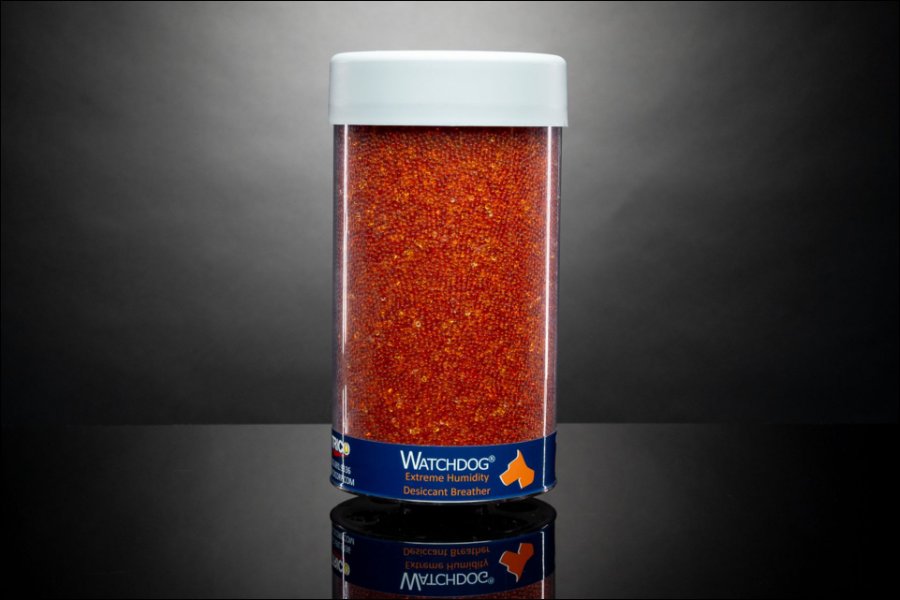

Replacement Watchdog Bypass Flow Desiccant Breather Cartridge

Related Products

Watchdog Desiccant Breathers
Watchdog Extreme Humidity Desiccant Breathers

Learn More From Lubricology

Don't Get Trapped

  • Water Contamination
  • Particulate Contamination
  • Desiccant Breathers
  • Contamination
  • Moisture
  • Contamination Control
  • Particulate
  • Desiccant Breather Replacement
02.06.2024 Dan Freeland

Don't Get Trapped

Caution is advised against the emerging practice of substituting desiccant breathers with traditional air breathers in industries prone to high humidity and temperatures, due to the risk of incurring significant expenses. Desiccant breathers stand out for their exceptional ability to absorb moisture, superior filtration performance, affordability, and versatility. They significantly outperform traditional air vents by efficiently eliminating moisture and particulates, safeguarding equipment from corrosion, and improving system dependability and lifespan.

Keep Your Equipment Safe and Dry

  • Water Contamination
  • Lubricant Condition
  • Desiccant Breathers
07.18.2023 Dan Freeland

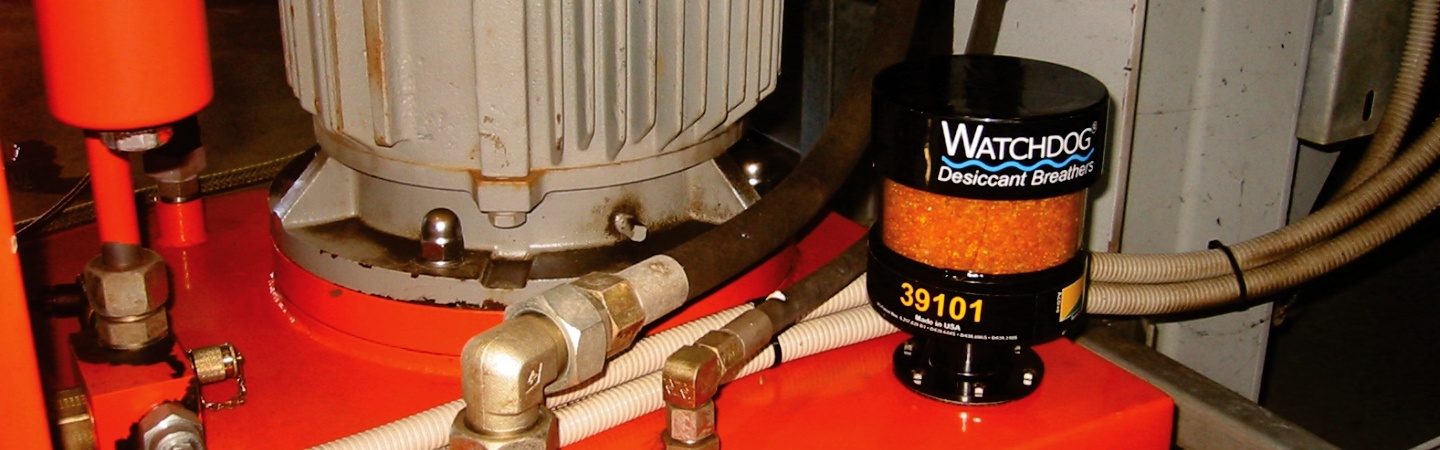

Keep Your Equipment Safe and Dry
