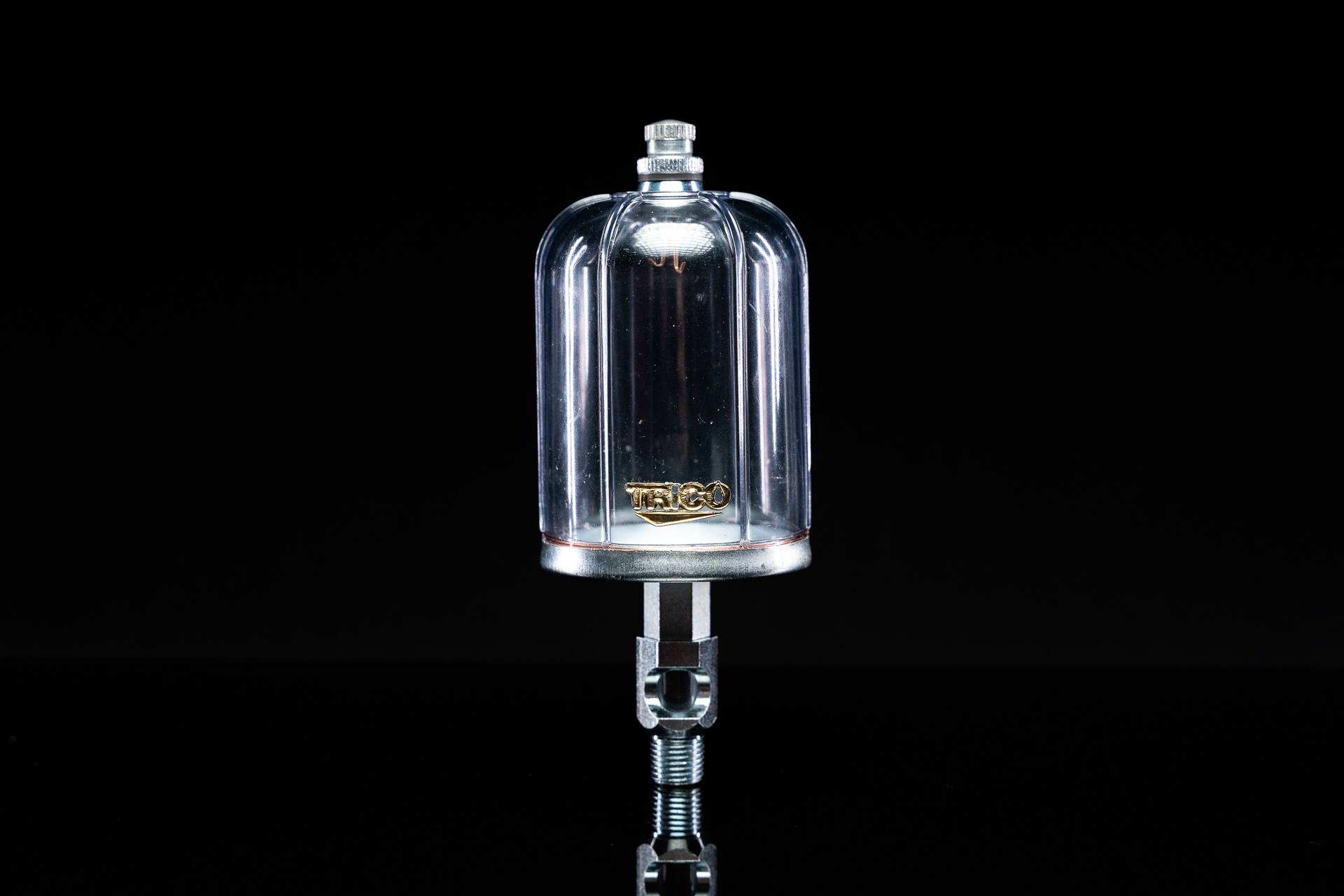

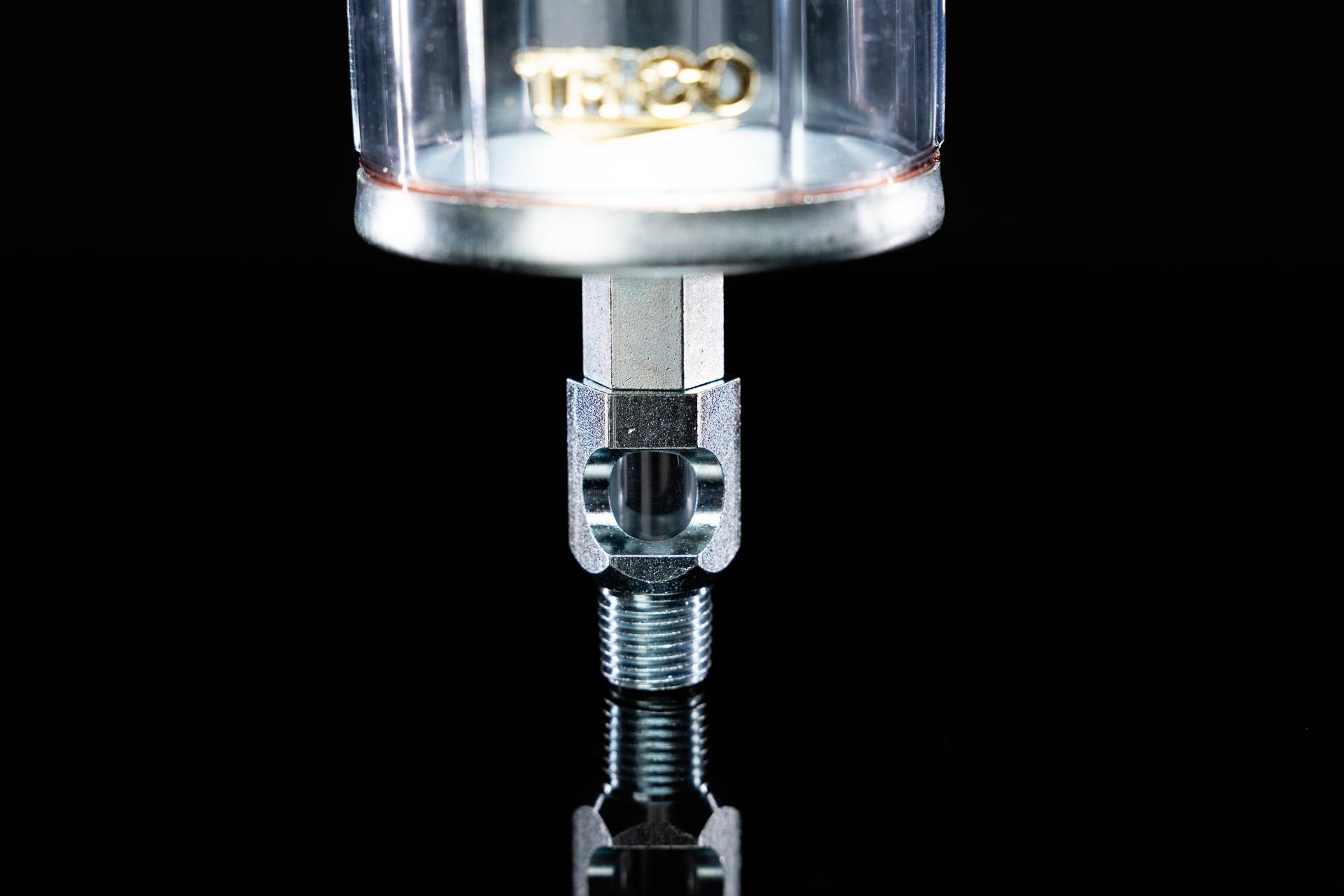

NA and NAS Oilers - Wick Feed Oilers

NA and NAS Vari-Feed Wick Oilers are used to provide a controlled amount of oil to a bearing or other machinery part. The principle of delivery combines gravity feed with capillary action in the wick to provide a constant feed rate of oil regardless of the fill level in the reservoir. Feed rate is determined by the viscosity of the oil and the type of wick being used.

Contact Us to Purchase

Feature

Adjustable

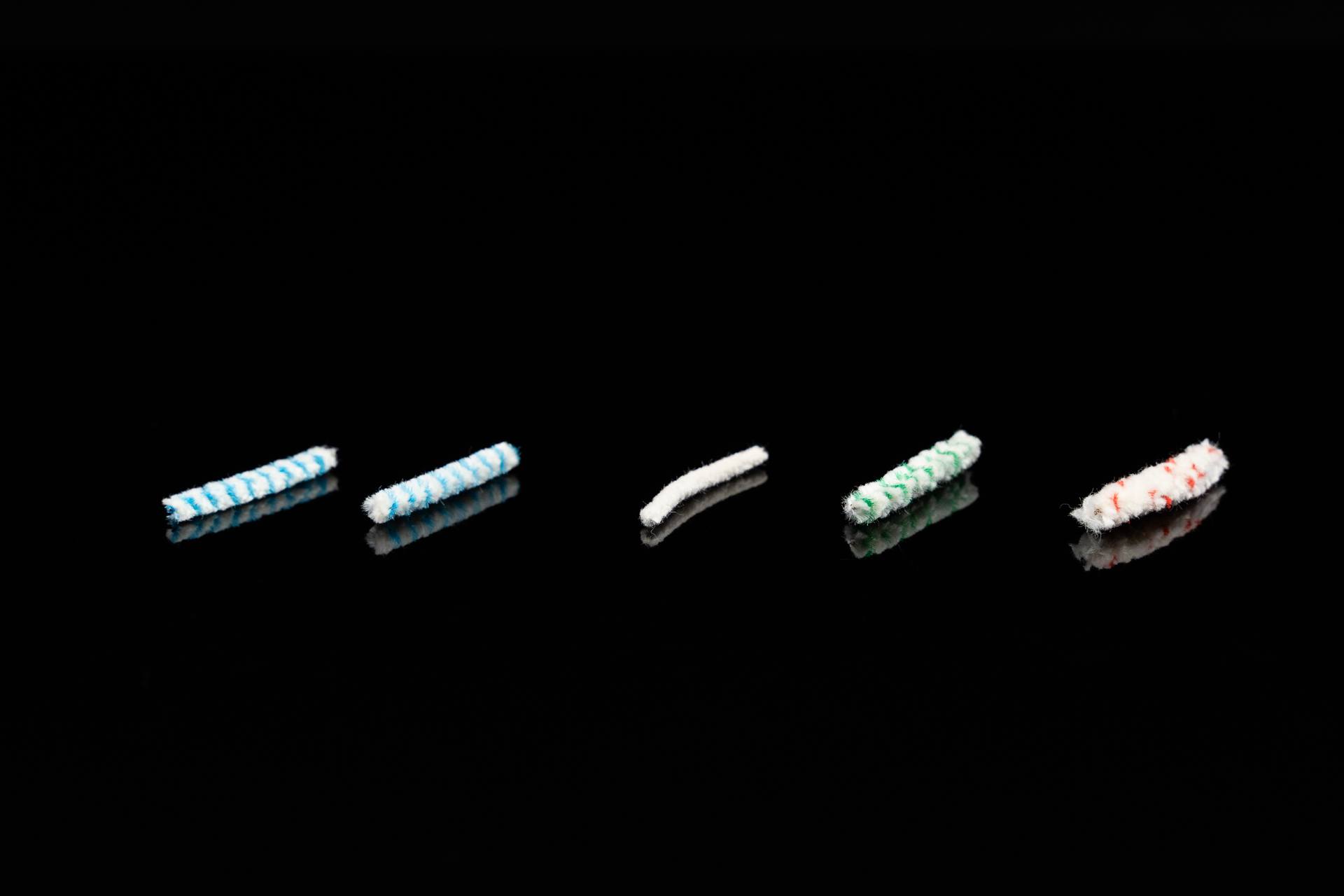

The feed rate is constant and adjustable only by changing to a different wick. Five wick speeds are available and color coded for easy replacement or installation. A multi-pack of different wick speeds is included with each oiler.

Feature

Oil Sight Window

An oil sight is available on NAS models for visual indication of oil flow.

Additional Features

Durable

Copper brazing of all steel connections provides long life and leak proof design. Plastic reservoirs have reinforcing ribs for long life. Zinc plating resists corrosion.

Other Specs

Model Description Style Capacity Connection (NPT) A Dimensions (in) B Dimensions (in)
30942 Wick Oiler Type NA 4 oz 1/4 2-5/16 3-1/4
31042 Wick Oiler Type NAS 4 oz 1/4 2-5/16 3-1/4
31082 Wick Oiler Type NAS 8 oz 1/4 2-5/8 4-5/16
