MD-1200 Micro-Drop Dispenser

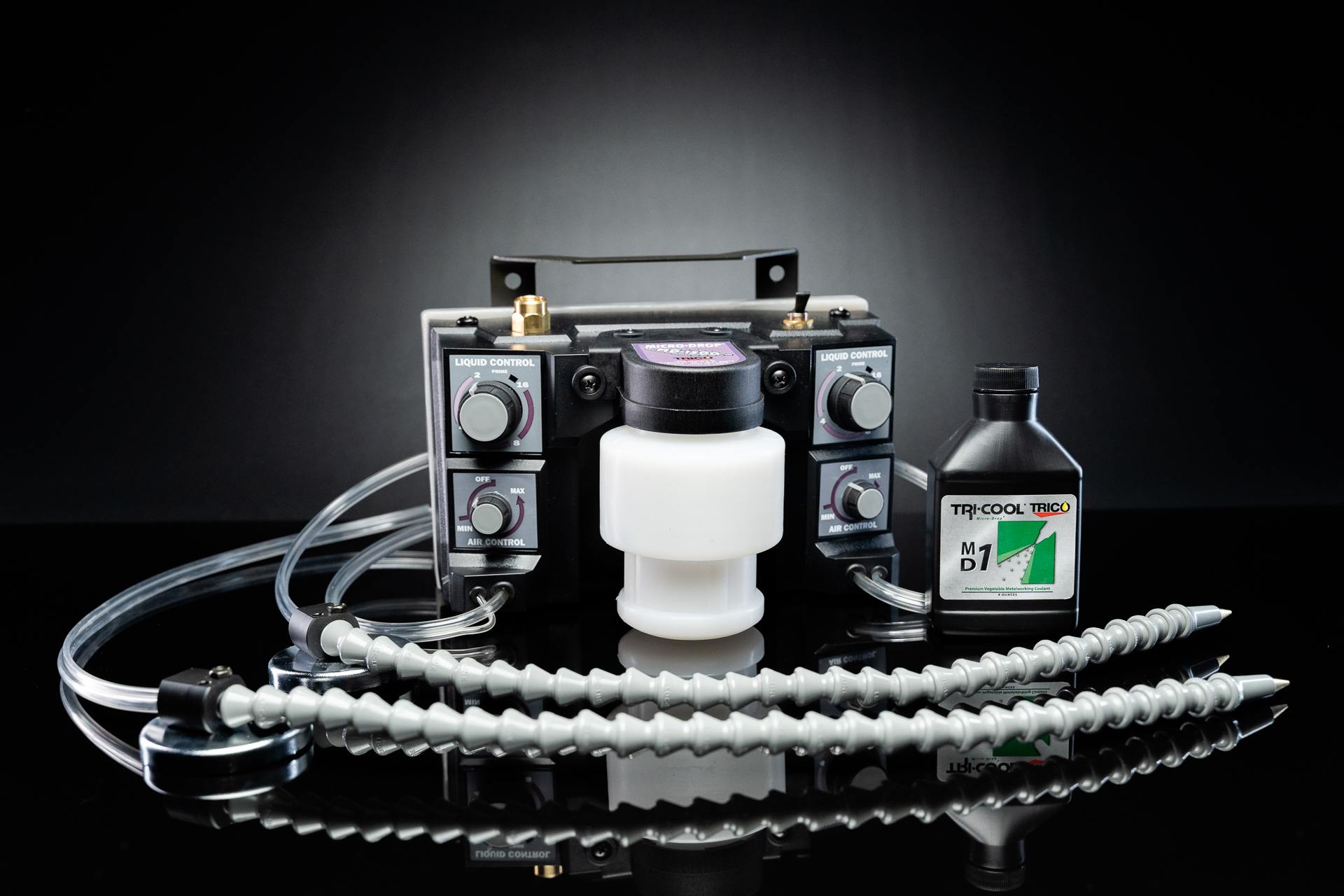

The MD-1200 Micro-Drop Dispenser utilizes a pressurized reservoir to deliver the lubricant to the nozzle tips. Specifically designed for oil-based lubricants, rather than water-soluble coolants, much less fluid is required to achieve the same heat dissipation on the tool and working piece. The nozzle tips are engineered to achieve much smaller droplets of fluid than that of spray cooling. This eliminates potential excess airborne fluids (fogging) and excess fluid on the working piece.
The MD-1200 is used in combination with Micro-Drop Synthetic or vegetable-based lubricants. These lubricants are also specifically formulated to create the Micro-Drop experience. It should not be used with a water-soluble coolant; these types of fluids will damage and clog system components.
Feature
Positive Pressure Design
Pressurizing the reservoir at 8 psi provides enough pressure to deliver lubricant to the nozzle tips consistently.
Feature

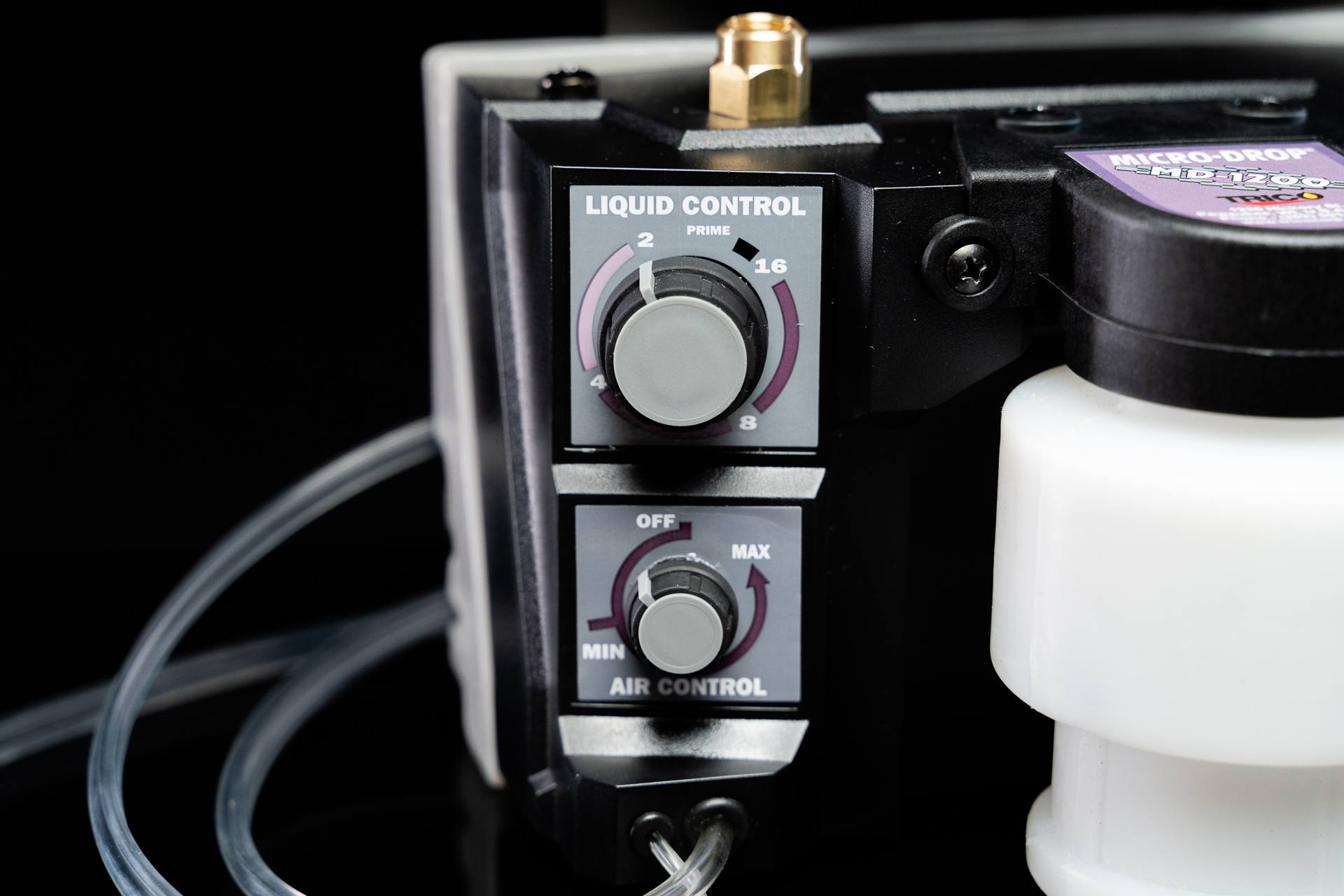

Independent Air & Liquid Controls
Simple and easy-to-use independent controls allow for maximum flexibility in adjusting liquid and air flow for each nozzle. Relative air/liquid scales allow repeatable set-ups and saves time in adjusting flow rates for different applications.
Feature
Engineered Nozzle Tips
High energy nozzle design eliminates fogging for cleaner environment and greater chip clearing power, allowing faster speed and feeds.
Additional Features
- Highly Efficient Lubricant Usage

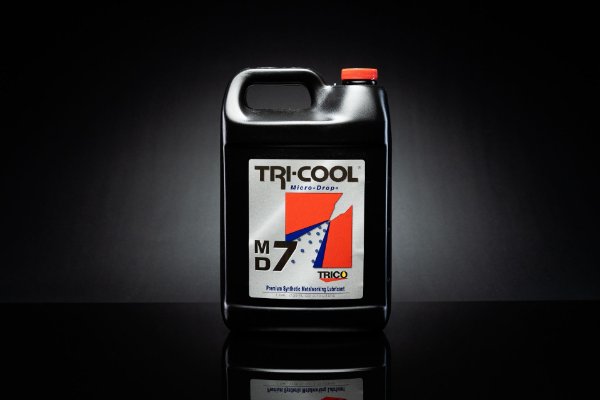

Trico offers a line of lubricants that is ideal for use with the MD-1200 Micro-Drop Dispenser: MD-1 Micro-Drop Vegetable and MD-7 Micro-Drop Synthetic Lubricant. Typical applications use 1 oz. of lubricant in an 8-hour shift.
- Anti-Siphon Valves
The anti-siphon valves permit the nozzle to be mounted in any position, eliminating the possibility of the reservoir siphoning out when turned off. They also allow the lubricant lines to remain primed at all times.
- Low Profile Mounting Bracket
Mounting bracket affixed to the back of the tank accepts (2) 1/4" diameter screws at a distance of 6 inches.
- Solenoid Control Option
Solenoids control the on/off timing for cyclic applications. They provide instant flow once energized and can be wired to provide an off cycle for loading and unloading parts. Auto electric models can be interfaced with machine controls for cyclic capabilities.
- Compact Design
16 oz. reservoir capacity and a practical size of 7"(H) x 10" (W) x 7" (D)
- Optional Nozzles

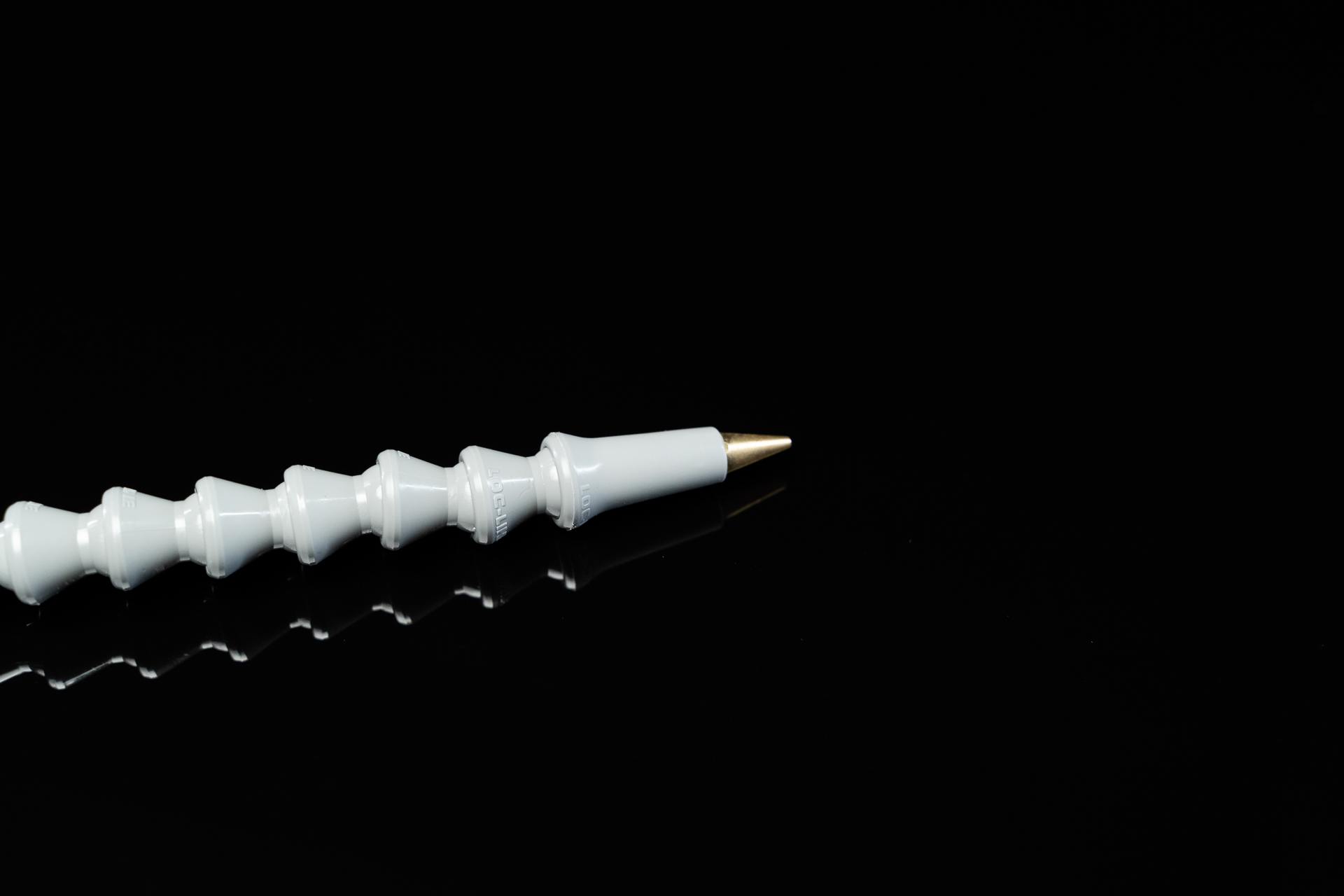

Nozzle assemblies are offered in both Loc-Line and straight, bendable copper.
Other Specs
| Model | Description | Control Mode | No. of Lines | Nozzle Type |
|---|---|---|---|---|
| 30801 | MD-1200 | Manual | 1 | Loc-Line |
| 30802 | MD-1200 | Manual | 2 | Loc-Line |
| 30805 | MD-1200 | Auto | 1 | Loc-Line |
| 30806 | MD-1200 | Auto | 2 | Loc-Line |
| 30813 | MD-1200 | Manual | 1 | Copper |
| 30814 | MD-1200 | Manual | 2 | Copper |
| 30817 | MD-1200 | Auto | 1 | Copper |
| 30818 | MD-1200 | Auto | 2 | Copper |
-
System TypePressure Delivery, Non-Cyclic
-
Delivery Lines6 ft. Polyurethane
-
Nozzles18″ Loc-Line or 13″ Copper
-
Liquid Flow Range2-16 Drops/Minute
-
Liquid Viscosity20-200 SUS
-
Inlet Air Pressure60-125 PSI
-
Recommended Air Filter40 Micron
-
Air Consumption1.7 CFM/Line
-
Air Inlet Fitting1/4 NPT
-
Solenoid Voltage120V 60Hz
-
Dimensions7.06″ H x 10.09″ W x 7.06″ D
-
Reservoir Capacity16 oz.
