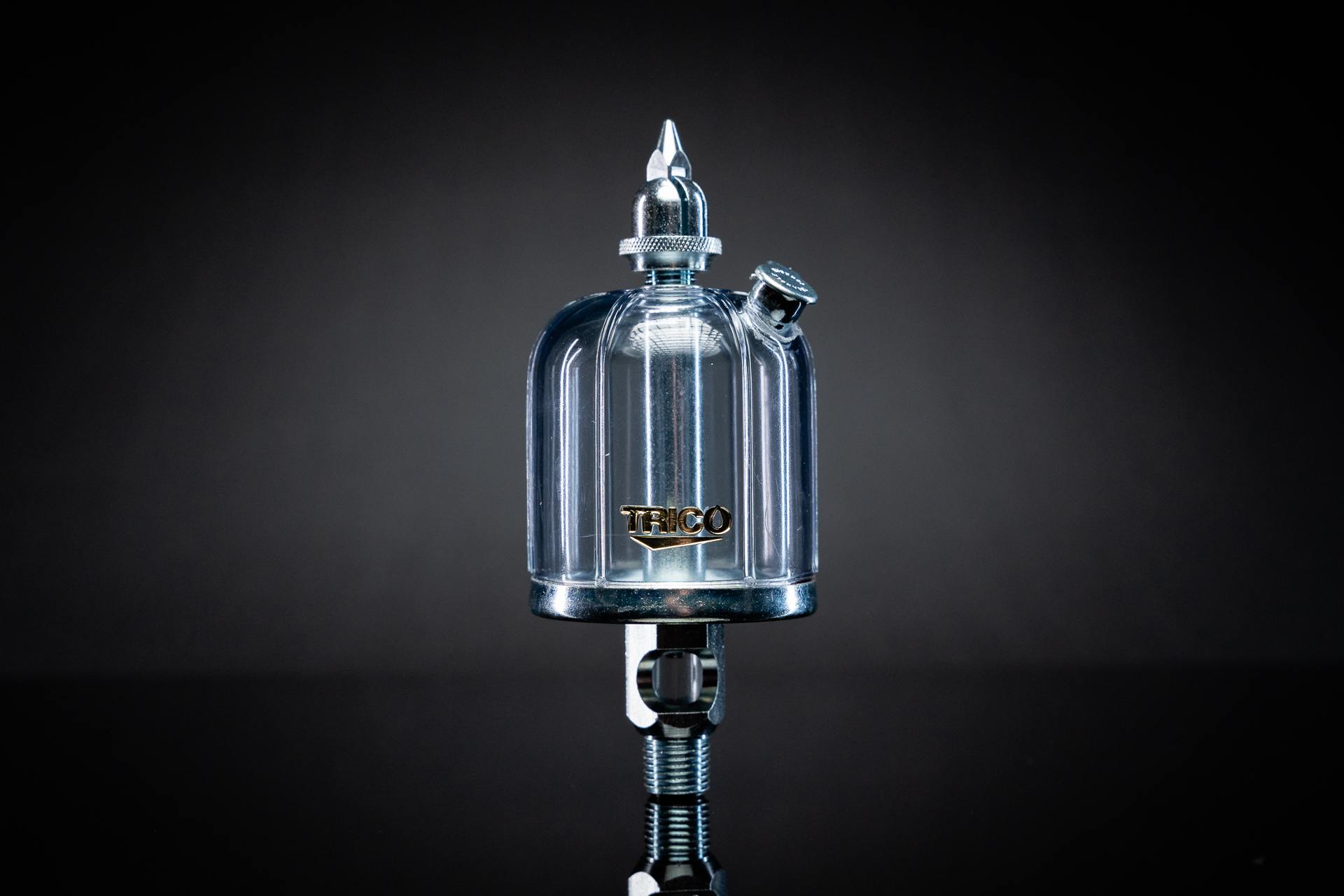

KL Oilers

Trico’s KL Plastic Gravity Feed Oilers work in a wide range of industrial lubricating applications.

Feature

3-Position Toggle Switch

A 3-position toggle switch provides easy on-off control and a flushing option to avoid dry start-ups. The knurled adjustment knob allows for easy fine tuning of drip rates. The switch is then threaded down to lock the adjustment knob in place for consistency.

Feature

Drip Rate View

A vented sight chamber ensures proper operation when used with tight or high-speed bearings.

Additional Features

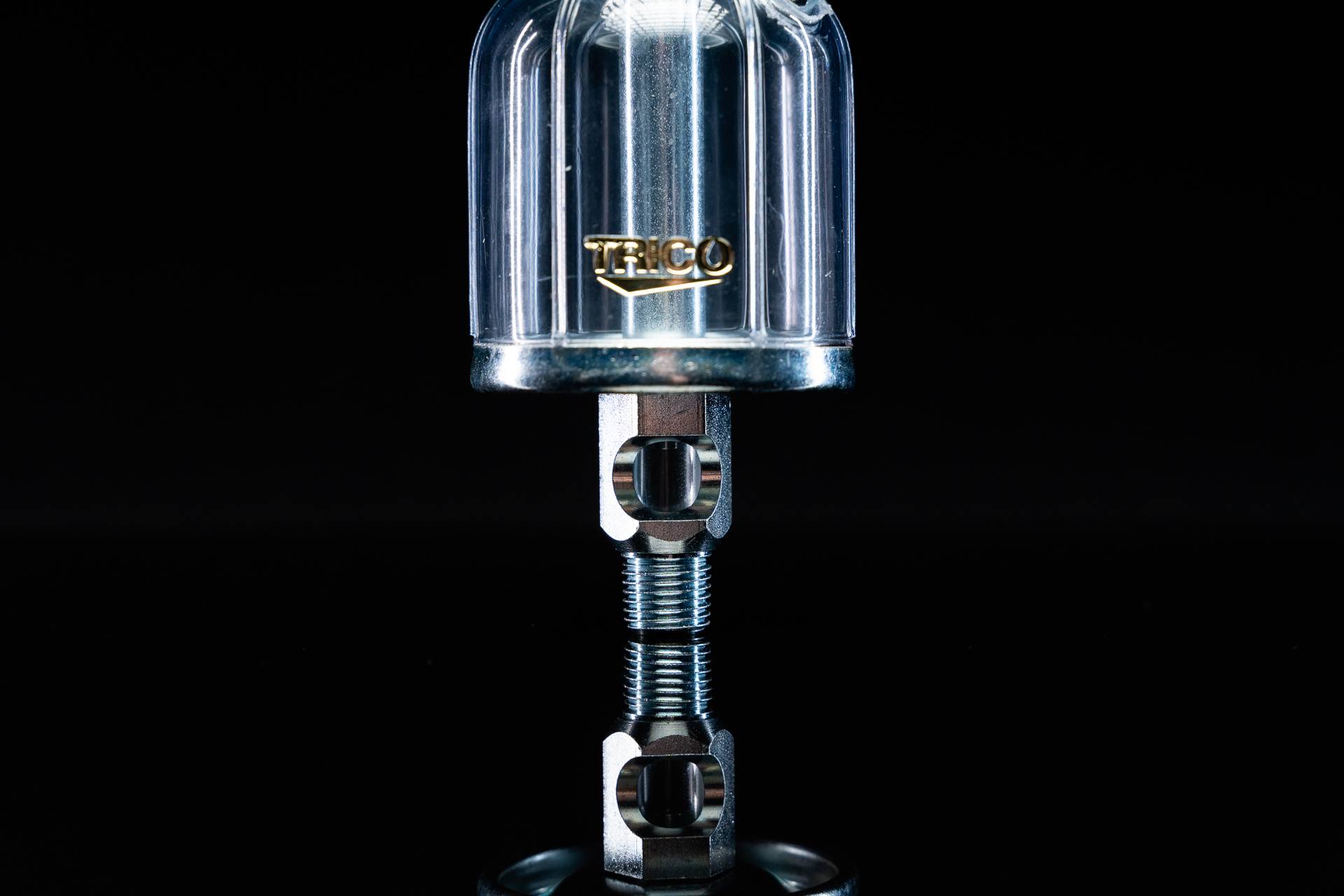

Dependable Design: Copper brazing of all steel connections provides long life and leak proof design.
Durable: Zinc plating resists corrosion.
Impact Resistance Reservoir: Plastic reservoirs have reinforced ribs for long life and impact resistance. They are also ideal and often required for many food/beverage industry applications.

Other Specs

Model	Description	Capacity	Connection (NPT)	Dim A (in)	Dim B (in)
30322	KL Oiler	2 oz	1/8 NPT	1-15/16	3-1/16
30323	KL Oiler	2 oz	1/4 NPT	1-15/16	3-1/16
30324	KL Oiler	4 oz	1/8 NPT	2-5/16	3-7/8
30325	KL Oiler	4 oz	1/4 NPT	2-5/16	3-7/8
30326	KL Oiler	4 oz	3/8 NPT	2-5/16	3-7/8
30327	KL Oiler	8 oz	1/8 NPT	2-5/8	4-15/16
30328	KL Oiler	8 oz	1/4 NPT	2-5/8	4-15/16
30329	KL Oiler	8 oz	3/8 NPT	2-5/8	4-15/16

Description

KL Oiler

Capacity

2 oz

Connection (NPT)

1/8 NPT

Dim A (in)

1-15/16

Dim B (in)

3-1/16
