Ferroscope

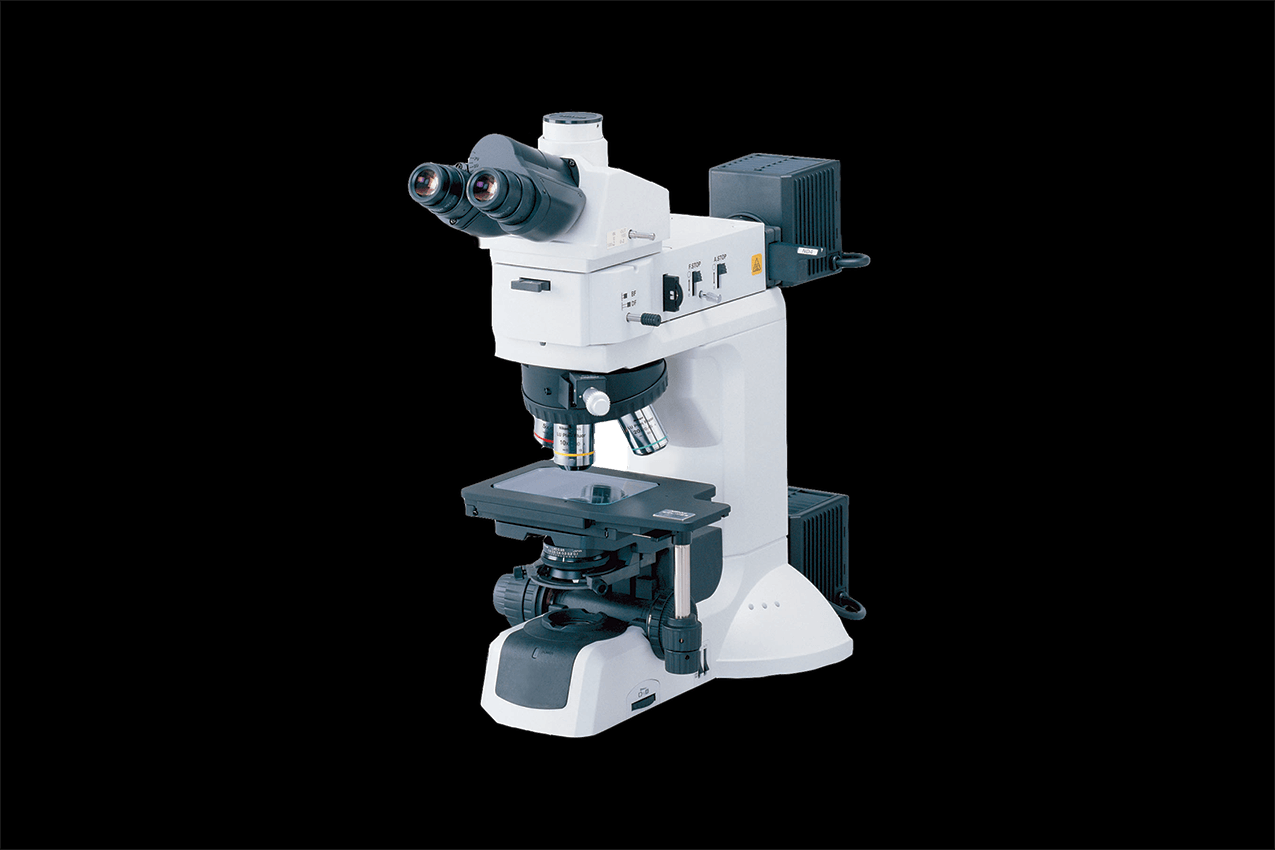

The Ferroscope FS-6 analytical ferrography optical microscope is specially assembled by Trico with attachments and options that enhance particle identification and interpretation. The Ferroscope FS-6 comes with three magnification powers: 100x, 500x, and 1,000x.
A technician can scan a Ferrogram quickly at low power to look for obvious abnormal particles, interpret particle origin and wear mechanism at 500x, and gain more insight into stress directions at 1,000x.
Additional Features
- Large Field of View
- The field of view is 50% greater than previous ferroscopes, and the optics are infinity corrected, eliminating focus problems.
- Enhanced Definition
- Light-source powers are increased in intensity over past models, which allows for better definition and much better photography (photomicroscopy).
- Expandable

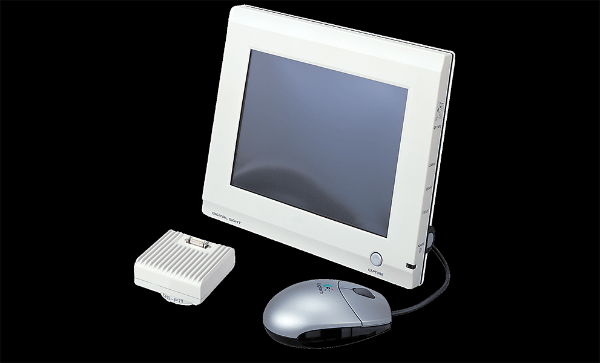

- A tri-nocular system allows the addition of cameras, including video, and digital photography (microscopy).
- Multiple Light Sources
- Bi-chromatic light (two light sources: reflected and transmitted) for identifying metallic versus non-metallic debris. Red and green light filters aid in identification of particle.
- Easy Particle Identification
- Polarizer and analyzers help identify particulate and fibrous contamination
- Ergonomic Design
- Ergonomic design enables analyst to rest arms on table while adjusting focus.
Other Specs
-
Depth23.5″
-
Width12″
-
Height32″
-
Weight40 lbs.
-
Power100V or 220V AC
