Drum Pump Filtration System Motors
The Drum Pump Filtration System Motors are used with the Drum Pump Filtration system to pre-filter fluids from 55-gallon drums or other similar containers. The universal design of the system integrates a quick-change hand wheel design, allowing the Drum Pump Filtration System Motors to be transferred from one system to another without buying additional motors or removing the entire tube assembly.

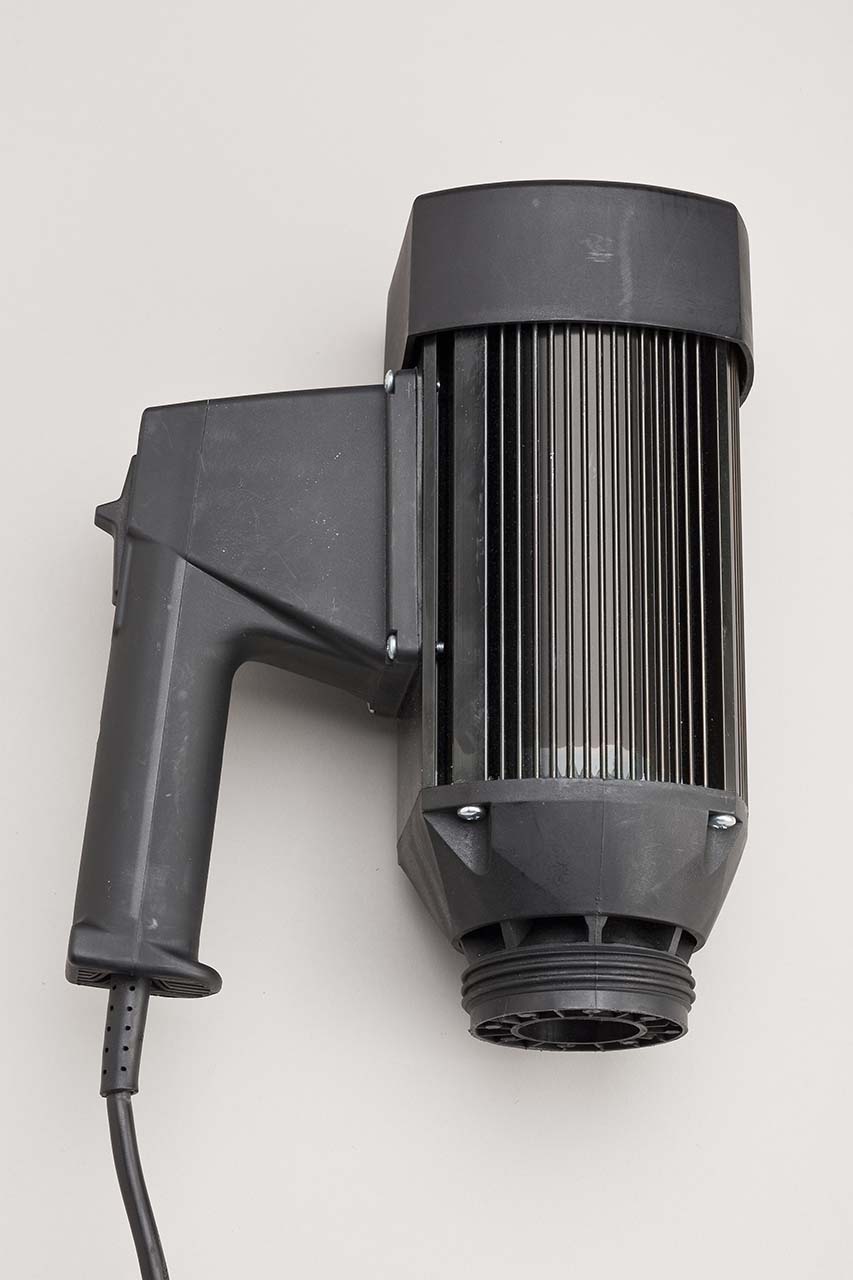

![](/getmedia/897938cd-4e0f-4ef8-bf24-4aa5f9784b63/drum-pump-electric-motor-main-sm.jpg?width=1920)
Other Specs
Model | Description | Motor Type | Motor | Maximum Viscosity | Inlet Pressure | Stall Pressure | Flow Rate |
---|---|---|---|---|---|---|---|
30018 | Electric Motor | 110V 50-60 Hz, 8.5 A | 1.10 HP @ 10,000 RPM | 1250 cSt @ 40ºC | N/A | N/A | up to 7.25 GPM |

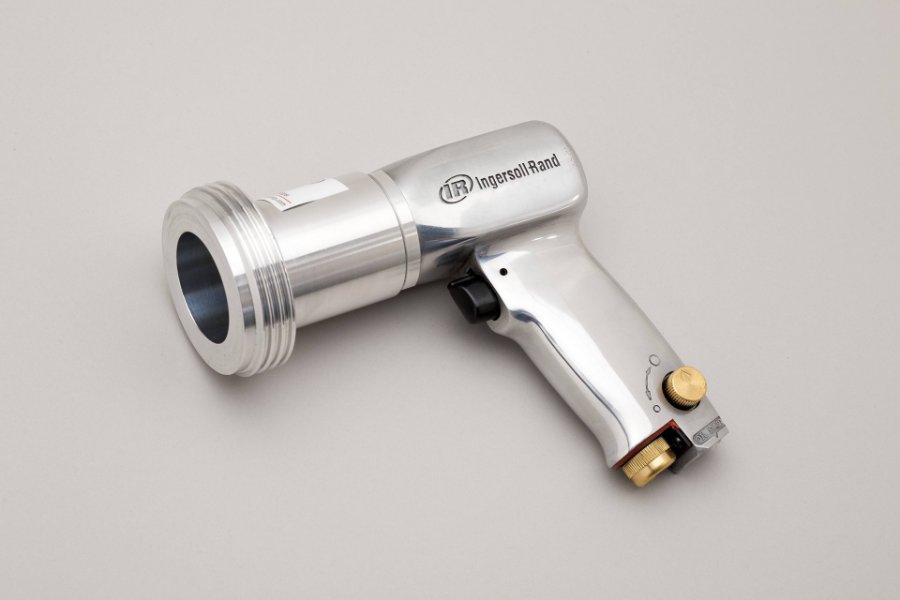

30019 | Pneumatic Motor | Pneumatic | 3/4 HP @ 8,000 RPM | 1250 cSt @ 40ºC | 100 PSI Max @ 28 CFM | 50 PSI | up to 6 GPM |
30021 | Electric Motor - 220V | 220V 50 Hz | 1.10 HP @ 10,000 RPM | 1250 cSt @ 40ºC | N/A | N/A | up to 7.25 GPM |
-
Motor
1.10 HP @ 10,000 RPM (P/N-30018)
1.10 HP @ 10,000 RPM (P/N-30021)
3/4 HP @ 8,000 RPM (P/N-30019) -
Maximum Viscosity
1250 cSt @ 40°C (P/N-30018)
1250 cSt @ 40°C (P/N-30021)
1250 cSt @ 40°C (P/N-30019) -
Flow Rate
Up to 7.25 GPM* (P/N-30018)
Up to 7.25 GPM* (P/N-30021)
Up to 6 GPM* (P/N-30019)*Dependent on oil viscosity and temperature.
-
Electric Motor Rating110V 50-60 Hz, 8.5 A (P/N-30018)
220V/50Hz (P/N-30021)
N/A (P/N-30019) -
Inlet PressureN/A (P/N-30018)
N/A (P/N-30021)
100 PSI max @ 28 CFM (P/N-30019) -
Stall PressureN/A (P/N-30018)
N/A (P/N-30021)
50 PSI (P/N-30019) -
Air Inlet ConnectionN/A (P/N-30018)
N/A (P/N-30021)
1/4″ NPT Female (P/N-30019)
