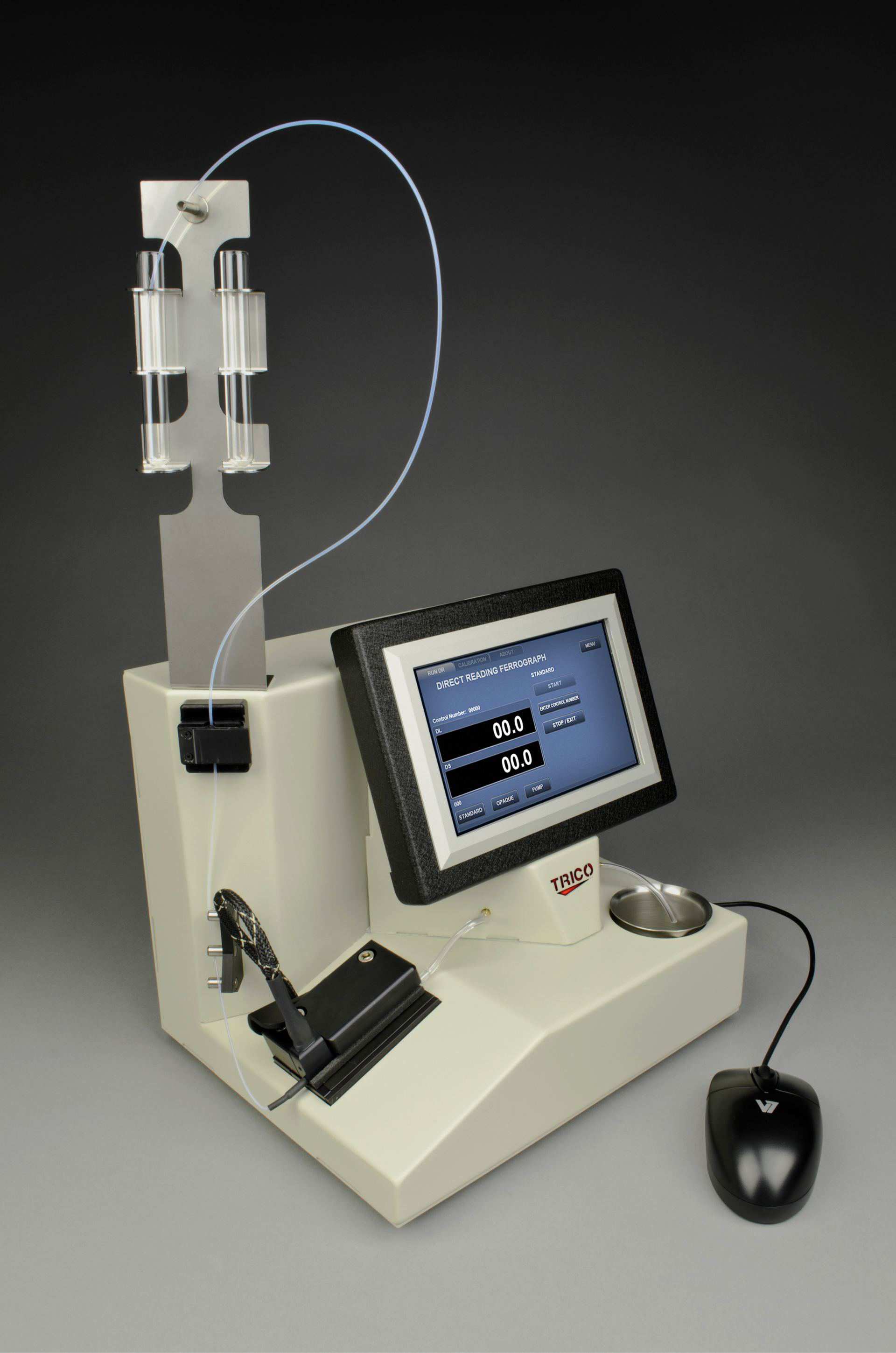

DR-7 Direct Reading Ferrograph

The DR-7 Direct Reading Ferrograph quantitatively measures the concentration of wear particles in oil, while also providing basic wear trend data to help determine equipment condition within minutes.

Contact Us to Purchase

Feature

Advanced Design

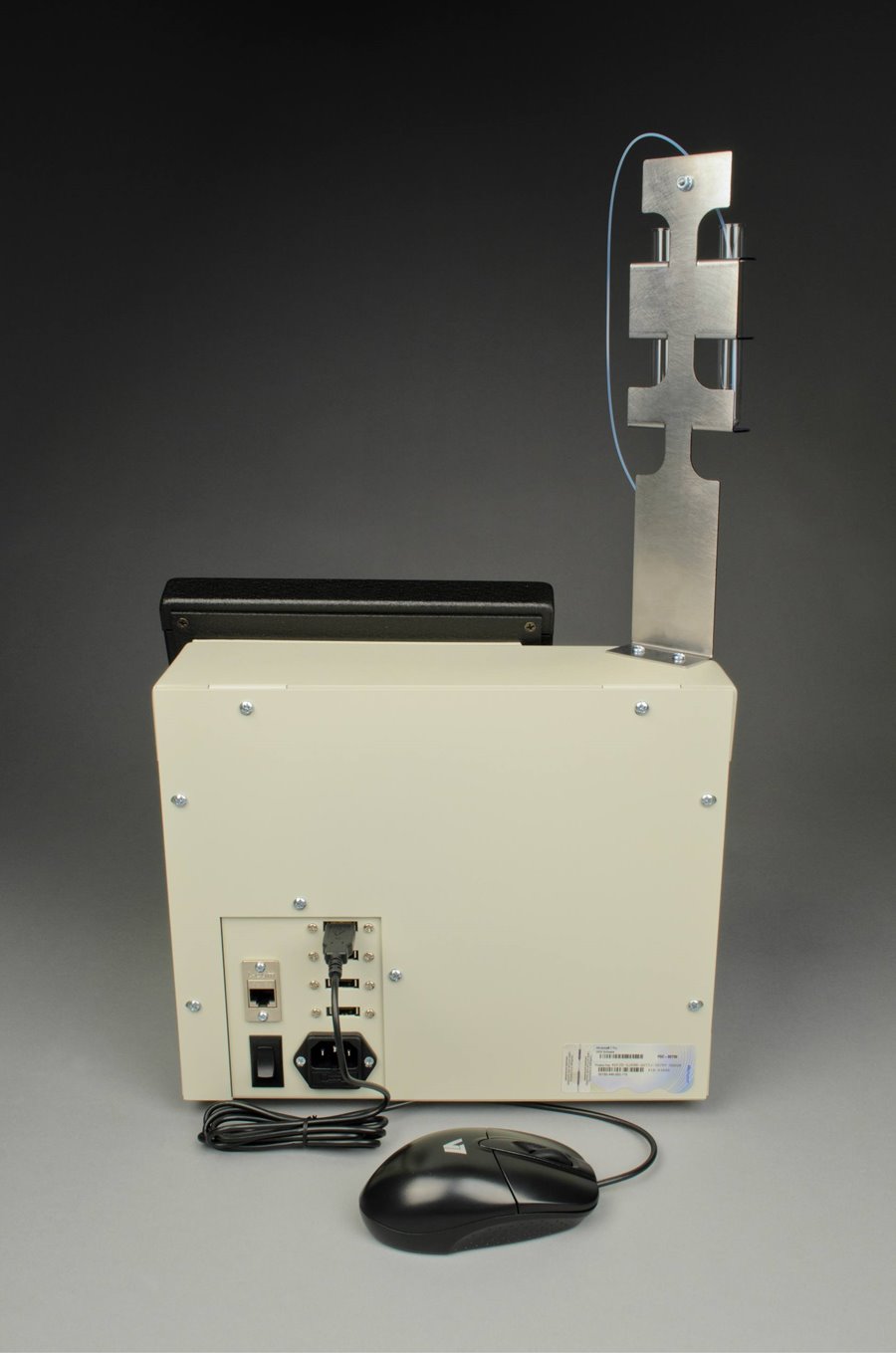

The DR-7 features an interactive 7″ LCD touch screen, and USB and Ethernet port so you can easily plug in a keyboard, mouse, access useful reports on the web, and connect it to our other Ferrography instruments like FM-6 Ferrogram Maker and the FS-6 Ferroscope.

Feature

Magnetic Gradient

The DR-7 Ferrograph uses a magnetic gradient to trap and optically measure the concentration of ferrous wear particles on a scheduled basis. The instrument also establishes the baseline wear level for any piece of equipment. Any sudden increase in the wear trend level alerts the user to potential problems prompting preventive actions.

Additional Features

Flexible
No limitations in lubricant type being monitored
Saves Time
Data can be obtained quickly, typically less than a few minutes
Reliable
Microprocessor incorporates internal diagnostics for reliable functioning

Other Specs

Model Description LCD Display Size
43000

DR-7 Direct Reading Ferrograh

 7"

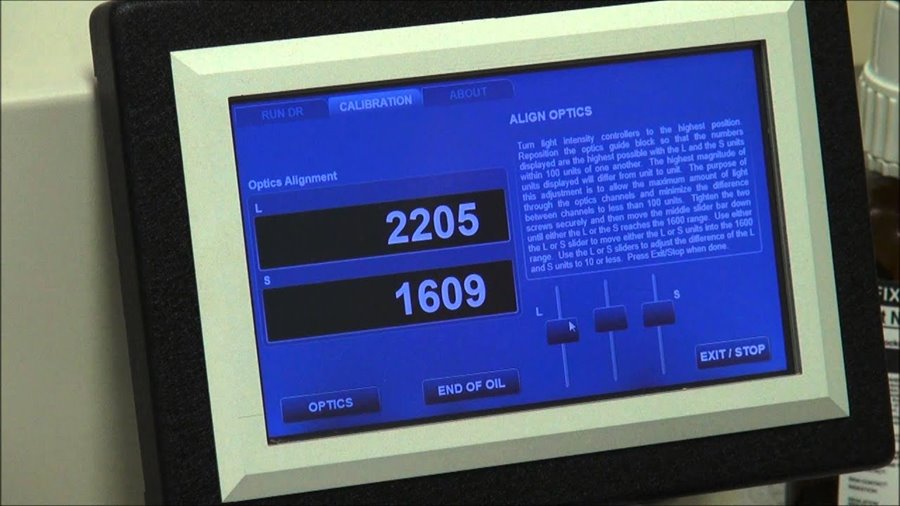

DR-6 Direct Reading Ferrograph Calibration
