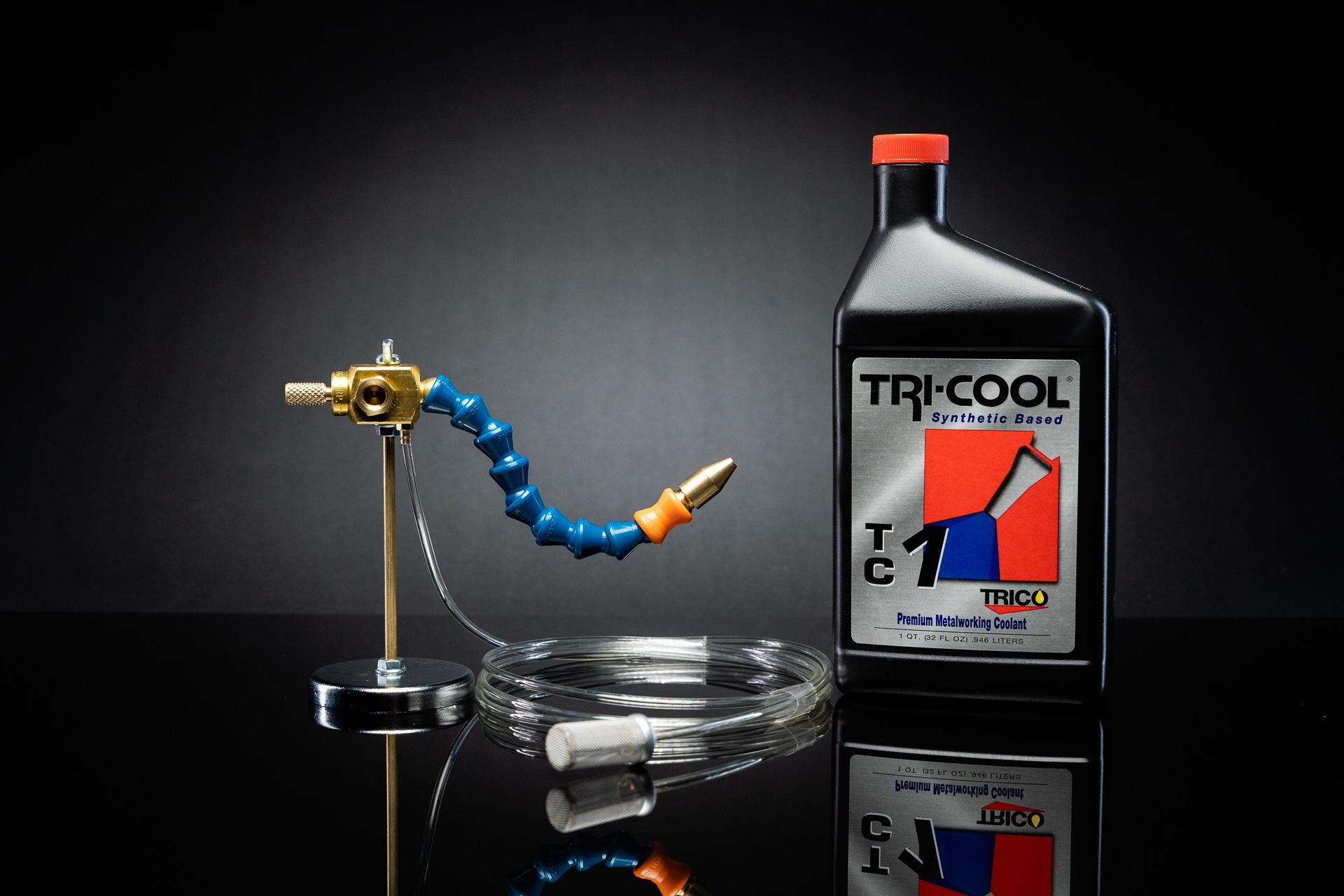

DL Spray Cooling System
The DL is a siphon-type spray system provides cooling solutions for light duty machining and tool room applications. This dispenser is easy to install requiring only shop air and dropping the siphon line into a coolant tank.
Feature
Siphon Nozzle
The conical, concentric siphon design allows the air supply to atomize the fluid as it is dispensed through the tip.
Feature

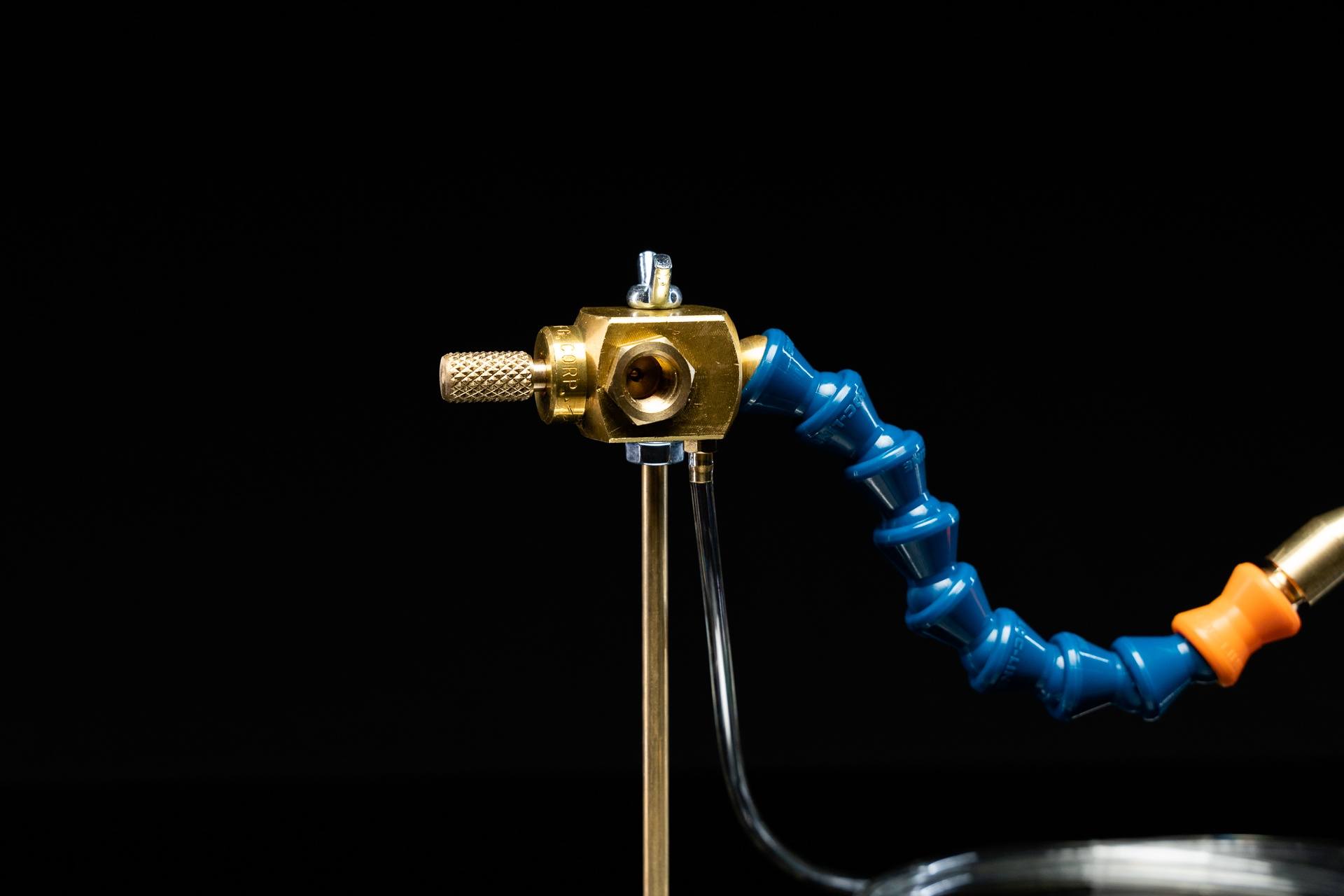

One Needle Valve
One needle valve controls both air and liquid volume. As the air volume increases, so does the siphon effect, allowing a greater volume of coolant.
Feature

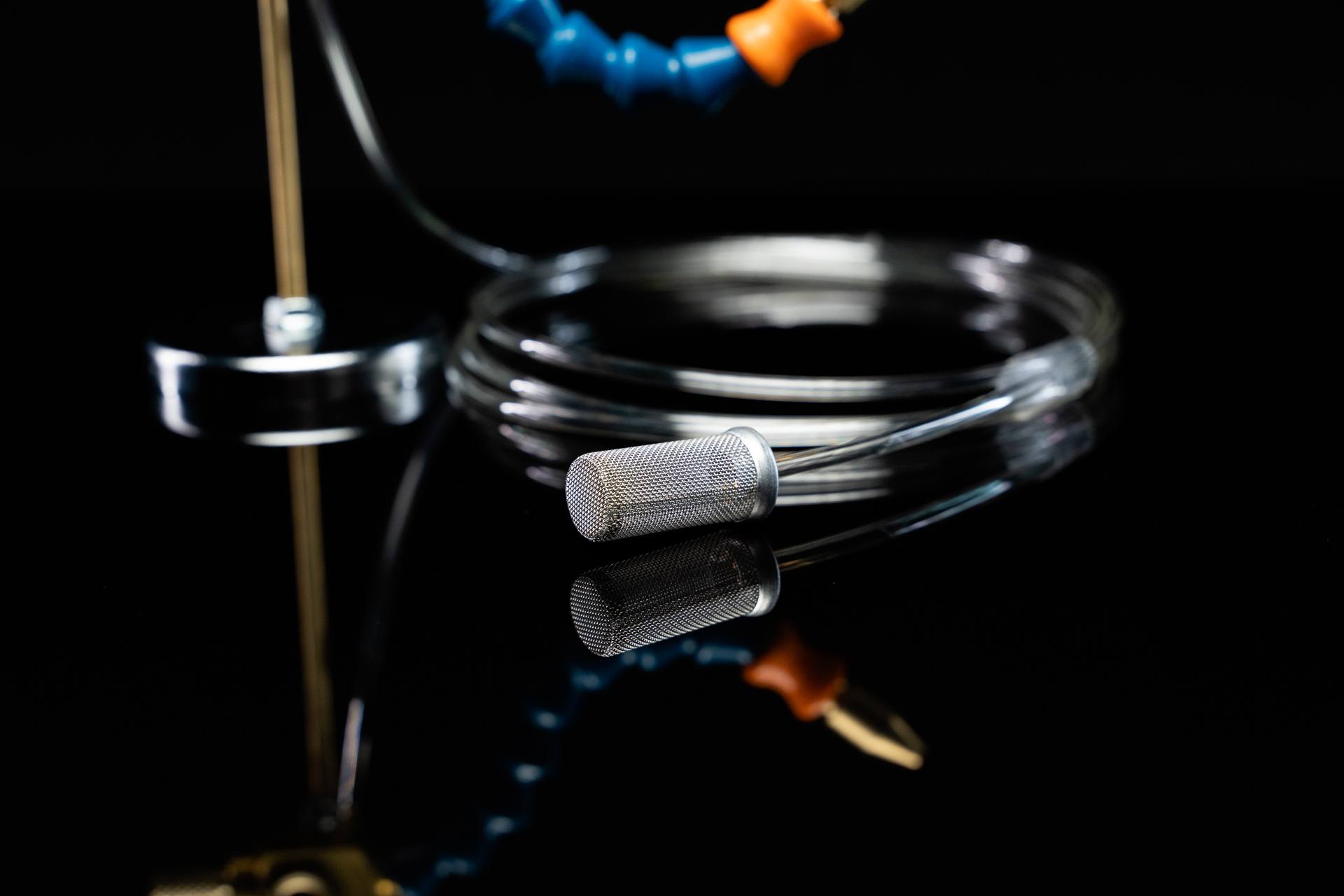

Pick Up Tube Filter
A 40 x 40 mesh screen at the end of the pick-up tube prevents contaminants from entering the coolant line, preventing clogging and needle valve leakage.
Additional Features
- Flexible Nozzle
7 in. flexible segmented nozzle assembly
- Durable Construction
Solid brass precision needle valve and body
- Easy Installation
Assembles in less than five minutes
- Mounting Magnet
A 60 lb. magnet allows versatile mounting options, keeping the nozzle in optimum position.
Other Specs
| Model | Description | Unit Type |
|---|---|---|
| 30655 | DL Unit | With 1 qt Tri-Cool Coolant |
| 30660 | DL Unit | Without 1 qt Tri-Cool Coolant |
-
Valve BodyBrass
-
SealsBuna-N
-
Siphon LinePolyurethane
-
Filter Element40 x 40 Mesh Stainless Steel
-
Air Inlet Pressure50 – 100 PSI
-
Air Inlet1/8 NPT
-
Fluid TypeWater based coolants suitable for spray cooling
